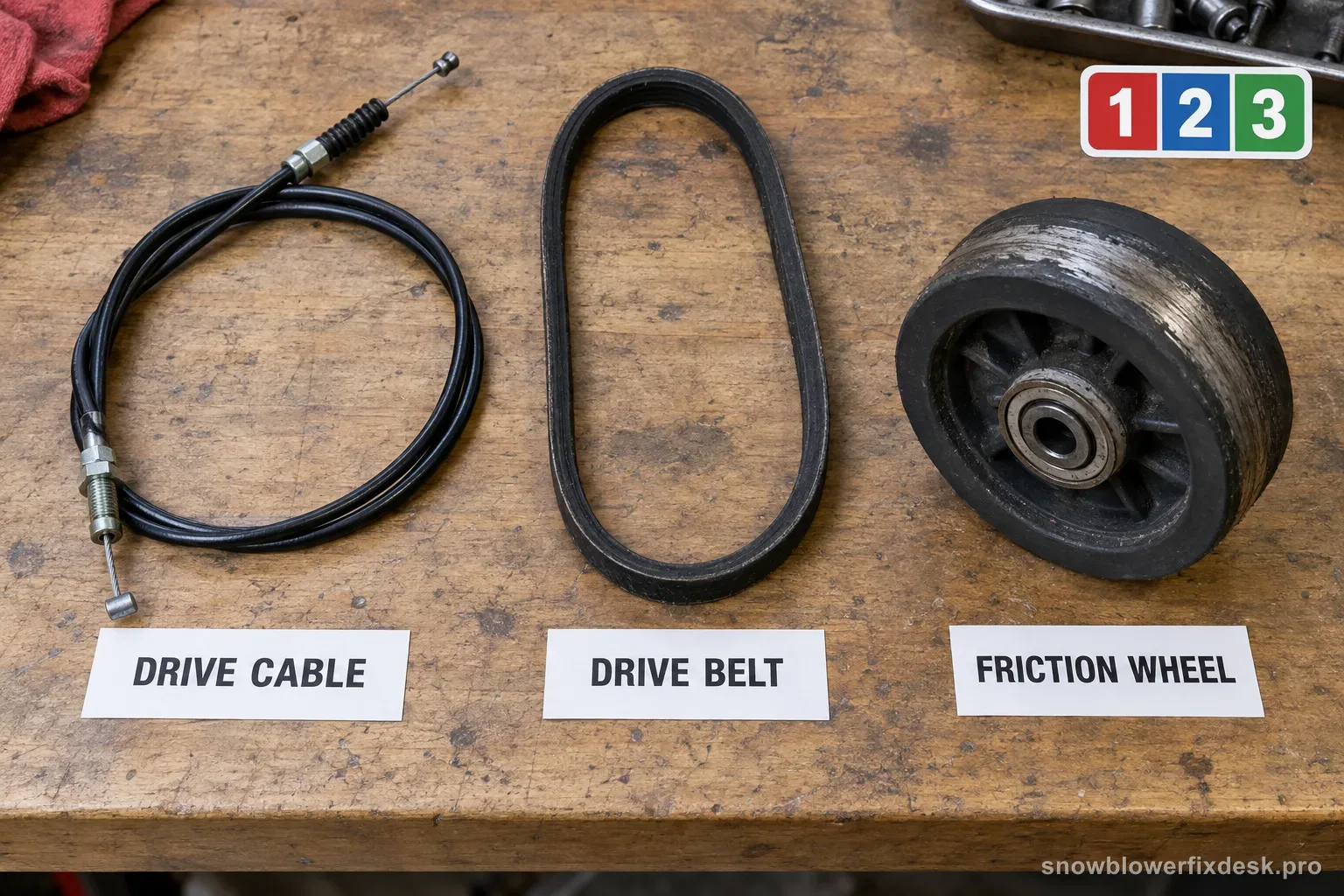

Craftsman SB410 Won't Self-Propel: Cable, Drive Belt, Friction Wheel
A 31AS6BEE793 traction diagnosis that keeps the non-hydro friction-drive architecture separate from Honda hydrostatic advice and from engine no-start troubleshooting.
Applies to SB410 24-inch (CMXGBAM1054541 / 31AS6BEE793)
Identifiers: CMXGBAM1054541 · 31AS6BEE793 · SB410
Chassis / service ID: 31AS6BEE793
Engine ID: 208cc OHV — read the engine label before engine-specific parts
Guide scope: Applies to Craftsman SB410 retail model CMXGBAM1054541 paired with chassis/service model 31AS6BEE793. Match the chassis manual revision before drive-cable, belt or friction-wheel parts and adjustments.
Treat CMXGBAM1054541 and 31AS6BEE793 as a paired machine identity. The manufacturer manual catalog spans multiple form revisions, so verify the serial/year before applying a manual-specific adjustment or ordering parts.
If the engine runs but the SB410 does not drive, isolate the drive control/cable, drive belt and friction-wheel path before blaming the engine or ordering transmission parts.
Test only on level open ground. Stop the engine before opening the lower frame or belt cover, and keep lubricant off friction-drive surfaces.
Diagnostic sequence
Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.
Verify the exact chassis
Why this check: Sears/MTD parts systems organize the SB410 drive components under 31AS6BEE793.
What to do: Record CMXGBAM1054541 and 31AS6BEE793 before using a drive diagram or ordering a friction component.
Separate control-state from hard failure
Why this check: A cable that never reaches full engagement can mimic a worn friction wheel.
What to do: With the engine off, inspect normal drive-control travel and obvious cable damage/slack using the matched manual revision.
Inspect drive-belt evidence
Why this check: A loose, glazed or damaged belt can remove traction while the engine remains normal.
What to do: Disable the machine, remove the appropriate cover and inspect without changing cable adjustment at the same time.
Inspect friction-drive evidence
Why this check: This chassis uses a friction-wheel drive architecture, so wear or contamination can cause slipping/no-drive.
What to do: If cable and belt checks are credible, inspect the friction wheel/plate area using the exact 31AS6BEE793 diagram; keep grease/oil off the friction surfaces.
Retest before parts stacking
Why this check: Changing cable tension, belt and friction wheel together destroys the evidence trail.
What to do: Correct one confirmed fault, restore covers, then test forward/reverse at low speed on level ground.
How to read this symptom on this model
The SB410 chassis uses a friction-drive path rather than Honda-style hydrostatic drive. That architecture matters because the evidence is cable travel, belt transfer and friction-wheel/plate grip. A normal-running engine can coexist with zero traction, so engine tune-up is not the first response to a clean no-drive symptom.
Surface contamination is as important as wear in a friction system. If lubricant reaches the friction wheel or drive plate, increasing cable tension can make engagement harsher without restoring the designed coefficient of friction. Preserve whether the machine slips, never engages, or drives in only some speed selections.
Start with identity because the SB410 has two useful manufacturer identifiers in the site: retail model CMXGBAM1054541 and chassis/service model 31AS6BEE793. The manufacturer service catalog also exposes more than one operator-manual form across this chassis history. That means the architecture can be described at chassis level, but a revision-specific cable dimension or part number should not be copied until the machine’s production record is matched.
Classify the drive symptom before opening covers. No forward and no reverse suggests a common traction-transfer problem. Some speeds working while others do not makes selector/linkage behavior more relevant. Movement on a level garage floor but slipping when pushing into snow puts more weight on belt/friction transfer. Creeping with the control released is a different and more urgent condition than insufficient engagement because safe disengagement has been lost.
The friction-drive path depends on clean, dry contact as well as mechanical adjustment. Oil or grease on the friction surfaces can create slip that resembles worn rubber. Tightening a cable against contaminated surfaces may increase engagement force without restoring reliable traction and can create a machine that does not disengage correctly. That is why the guide keeps contamination, wear and control travel as separate observations.
Use the manual history as a stop sign against generic MTD dimensions. SB410 shares platform ideas with other two-stage machines, but the manufacturer catalog lists multiple manual revisions for 31AS6BEE793. If an online procedure gives an exact spring length, cable gap or friction-wheel dimension without matching your revision, treat it as unverified for this machine.
Use forward/reverse behavior to avoid jumping straight to the friction wheel. If one direction works, inspect selector/linkage behavior before assuming the entire friction drive is worn out. If no direction works and the drive control has limited travel, cable engagement is the cleaner first branch. Only after cable and belt condition are credible should wear or contamination at the friction wheel/plate become the main suspect.
The friction surfaces must remain dry. Oil, grease or penetrating spray can make the wheel slip even when the rubber still has usable material, so do not lubricate the plate to “help it move.” If the drive area is opened, inspect for contamination, chunks, glazing and abnormal wear using the exact 31AS6BEE793 diagram, then restore covers before testing. Correct one confirmed fault and verify low forward and reverse on level ground before normal snow load.
Compare forward and reverse before disturbing the friction drive. If the SB410 moves in one direction but not the other, selector or linkage behavior deserves attention before assuming the friction wheel has lost all grip. If every speed slips while the engine remains steady, then cable travel, drive-belt condition and friction-surface wear become progressively stronger branches. Keep oil and grease away from the friction plate and wheel during inspection. A contaminated friction surface can create no-drive or slipping even when the cable and belt are otherwise capable of engaging the system.
Before you order parts
Before ordering a friction wheel, verify the cable/control actually reaches engagement and inspect the drive belt. Before ordering a belt, look for obvious friction-wheel contamination or damage once the exact chassis is safely opened. Do not stack cable adjustment plus belt plus friction wheel in one repair unless each fault is independently confirmed.
Before ordering a friction wheel, record which directions and speeds work, whether the machine slips only under load, and whether the drive control fully releases. Inspect control/cable response and the drive belt before concluding that the friction rubber is the sole failed part. A parts order should follow the observed branch, not precede it.
If the lower service area is opened, keep lubricants away from the friction plate/wheel and restore all guards before powered testing. Do not perform a powered ‘look underneath’ test. The information you need is the condition of the dry friction surfaces, belt and linkage while the machine is safely shut down.
Back to the exact model hub →Retest without creating a second problem
Reassemble the lower cover and belt guards before powered testing. On level ground with the auger off, test the slowest forward speed, release the drive and confirm disengagement, then test reverse. Stop if the machine creeps with the control released or engages unpredictably.
After repair or adjustment, start on level ground with the auger disengaged. Use the lowest forward setting, release the drive and confirm the machine stops pulling, then stop before selecting reverse. This sequence tests both engagement and disengagement rather than declaring success as soon as the wheels move.
Only after low-speed forward and reverse behave correctly should you add a short, light snow load. If the machine drives unloaded but slips again in snow, preserve that load-dependent result and return to belt/friction transfer diagnosis. If it creeps after release, stop use and correct the control condition before any further load test.
Make sure this is the right symptom
If your machine is showing an adjacent symptom instead, switch paths before changing parts: excessive vibration after impact or during auger use.
The same search phrase can lead to a different branch on another machine. Compare the nearest model-specific examples: Ariens Deluxe 24 (921069): won't move · Troy-Bilt Storm 2410 family: won't propel.
Model-specific notes
- Do not apply Honda HSS928 hydrostatic-fluid or hydrostatic-transmission advice to this Craftsman chassis.
- The friction-drive path is machine-side; engine speed/fuel work is a different branch unless the engine itself is bogging.
Questions people get wrong on this model
Can a good-running engine still leave the machine unable to move?
Yes. The traction system is separate from combustion; cable, belt and friction-drive faults can remove propulsion with a normal-running engine. Changing cable tension, belt and friction wheel together destroys the evidence trail. Before ordering a friction wheel, verify the cable/control actually reaches engagement and inspect the drive belt.
Should I lubricate the friction wheel to stop squealing?
No. Friction surfaces need grip. The operator-manual family warns to keep lubricant off the drive plate/friction wheel. Before ordering a friction wheel, verify the cable/control actually reaches engagement and inspect the drive belt. Before ordering a friction wheel, record which directions and speeds work, whether the machine slips only under load, and whether the drive control fully releases.
Why should I keep the 31AS6BEE793 chassis ID with a traction repair?
The retail SB410 identifier maps to manufacturer service chassis 31AS6BEE793, and the catalog spans multiple manual revisions. Keeping that identity prevents a cable, belt or friction-wheel procedure from being borrowed from the wrong Craftsman production version. The model-specific follow-up is “Inspect drive-belt evidence.” On SB410 24-inch (CMXGBAM1054541 / 31AS6BEE793), keep that observation separate from any later adjustment; otherwise a working retest will not tell you which change fixed the symptom.
