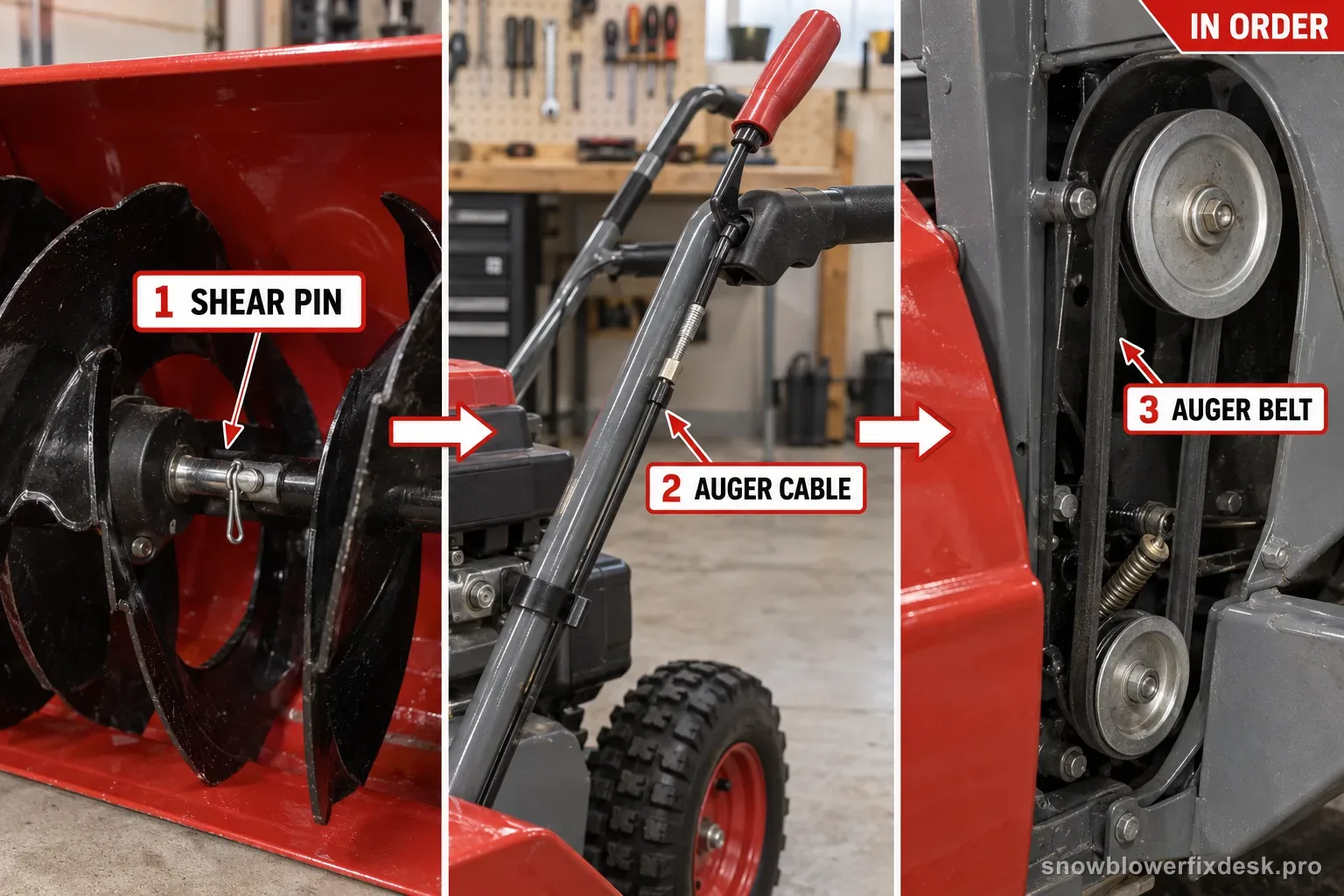

Craftsman SB410 Auger Not Turning: Shear Pin, Cable, Belt Order

Diagnostic sequence

Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.

How to read this symptom on this model

A no-auger symptom on this machine should be separated into local auger connection, control engagement and drive transmission. One auger section failing after impact is stronger evidence for local shear hardware than a total loss of both augers with normal pins. That difference can save unnecessary belt work.

The 31AS6BEE793 manufacturer catalog spans several manual forms, so this guide keeps the sequence at the architecture level and refuses serial-specific dimensions unless the owner matches the correct form. That is intentionally more conservative than generic repair pages that paste one cable adjustment across every Craftsman two-stage.

Start by deciding whether one auger section is not rotating or whether the entire auger/impeller attachment is dead. A single section that does not follow the shaft points much more strongly toward sacrificial shear hardware than toward an engine problem. A complete no-attachment condition keeps control engagement, cable condition and the auger-drive belt higher on the list.

The exact 31AS6BEE793 service catalog lists genuine shear-pin and belt parts for this chassis, but the catalog itself is not a failure diagnosis. Inspect the shear-hardware locations and the control/belt path before ordering either. An intact-looking bolt that is not the specified sacrificial hardware is also a safety problem because ordinary or hardened substitutes can move overload into the gearbox.

Separate an obstruction from a drive failure before any powered retest. Packed ice or debris can lock the auger or impeller and make the control feel as if the belt or cable has failed. Shut the machine down fully and use the clean-out method/manual guidance; never use a hand to test whether the auger is free.

If the attachment control moves normally but neither auger nor impeller responds after obstruction and shear checks, the next useful evidence is the belt/control branch for the matched operator-manual revision. Do not jump from 'auger does not turn' directly to gearbox replacement. A gearbox diagnosis needs stronger evidence such as abnormal shaft behavior after the sacrificial and drive-system checks are cleared.

The fastest separator is whether one auger section or the whole attachment stopped. One section that spins independently after a strike makes a sheared pin much more likely. If both sides are locked, clear ice or a foreign object before loading the control again. The shear hardware is sacrificial by design, so a solid bolt is not an upgrade; it can send the next impact into the shaft or gearbox instead of protecting them.

When the housing is free and shear pins are intact, inspect auger-control travel before opening the belt path. The 31AS6BEE793 catalog can map to more than one operator-manual revision, so do not copy an adjustment dimension from a nearby Craftsman simply because the lever looks the same. Look for obvious slack, damage or incomplete engagement and use the manual returned for the actual production unit. A cable that never reaches full travel can make a healthy belt appear weak.

Belt evidence becomes strongest when the auger is physically free, the shear hardware is intact and the control reaches normal engagement, yet the attachment still does not transmit load. Inspect route and visible belt condition with the machine disabled. If the belt is displaced, glazed or damaged, preserve that observation for the exact chassis parts path. If the correct belt and control are intact but the auger still will not turn, stop stacking parts and move to service rather than assuming the gearbox failed.

Side-to-side behavior is worth checking before any belt purchase. If one auger section stopped after striking an object while the other still follows the shaft, inspect that section’s shear hardware first. If both sides remain stationary but the housing is clear, move to control-cable and belt evidence instead. A correct shear pin that fails again immediately is a stop signal, not proof that a stronger bolt is needed. On the 31AS6BEE793 chassis, preserve whether the loss was one side or the full attachment because that observation can keep a localized overload from becoming an unnecessary belt or gearbox repair.

Retest without creating a second problem

Restore all guards, start from the operator position and engage the auger briefly with no snow load. Verify smooth rotation and a full stop on control release before feeding a narrow light pass. If a new shear pin fails or the drive immediately slips again, stop and find the remaining overload.

After the machine is reassembled and all guards are restored, start outdoors with traction released and engage the attachment briefly from the operator position. Confirm normal rotation, then release the control and verify the attachment stops normally before applying snow load. Any failure to disengage is a stop-use condition, not a reason to add more cable tension.

Model-specific notes

• A solid bolt is not a safe permanent substitute for a shear pin.
• This guide is Medium confidence because the manufacturer catalog lists multiple operator-manual revisions for 31AS6BEE793 without publishing a serial-to-form crosswalk on the model page.
