Craftsman SB410 Won't Start: Verify the Engine Label Before Carburetor Parts

Diagnostic sequence

Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.

How to read this symptom on this model

The important distinction is identity before ignition diagnosis. Manufacturer service material ties Craftsman CMXGBAM1054541 to chassis 31AS6BEE793, but the service page lists a family engine manual rather than publishing a guaranteed engine sub-model for every chassis serial. That means the engine label is a real compatibility gate, not a formality.

A no-start complaint should also preserve whether the engine cranks. This guide assumes the engine can be cranked. A dead electric starter, a recoil mechanism that cannot turn the engine and an engine that cranks normally but never fires are different branches and should not be collapsed into a single carburetor recommendation.

Keep the machine and engine identities separate. The manufacturer supplement maps CMXGBAM1054541 to chassis 31AS6BEE793, while the chassis service catalog lists a 179/208/243/272cc OHV engine-manual family. The chassis number identifies the snowblower; the engine label is still required before an engine-specific carburetor, starter or ignition part is ordered.

The MTD engine manual gives different cold and warm restart behavior. For a warm engine after a short shutdown, it warns against priming and calls for NO CHOKE, because unnecessary priming can flood the engine. That makes 'what happened immediately before the no-start' a useful diagnostic fact instead of a minor detail.

For engines equipped with the 120 V electric starter, the engine manual requires a grounded outdoor-rated connection and limits each electric-start attempt to no more than five seconds. A starter that cranks normally but the engine does not fire is not the same complaint as a starter that does not turn the engine at all. Keep those paths separate before replacing the starter.

The manual also establishes a service boundary after the documented starting sequence fails. That is a better stopping point than repeated unstructured cranking or random carburetor adjustment. If the engine starts only with choke and then falters as choke is removed, record that as a run-quality/fuel-delivery symptom rather than calling it a pure no-start.

On SB410 24-inch (CMXGBAM1054541 / 31AS6BEE793), the order between “Pair the two machine identifiers” and “Read the engine label” matters because each answers a different question. Manufacturer service material maps retail Craftsman model CMXGBAM1054541 to chassis/service model 31AS6BEE793. Meanwhile, the chassis catalog lists a 208cc engine-manual family but does not publish one guaranteed engine sub-model for every production unit on the service page. Preserve which check passed and which did not before moving deeper. That record is especially useful when the owner describes everything simply as “won't start,” because the phrase alone does not identify the failed branch.

A model-specific guide also needs a clear stopping point. For SB410 24-inch (CMXGBAM1054541 / 31AS6BEE793), “Spark plug condition after the basic checks” is that boundary in this sequence: A fouled or damaged plug can preserve a no-start after fuel and control-state issues are ruled out. Follow the action given there—Inspect/replace only to the engine-label/manual specification; do not buy from chassis number alone. If it does not resolve won't start, the next useful step is an evidence-backed service decision, not another round of unrelated adjustments that erase what the earlier checks already established.

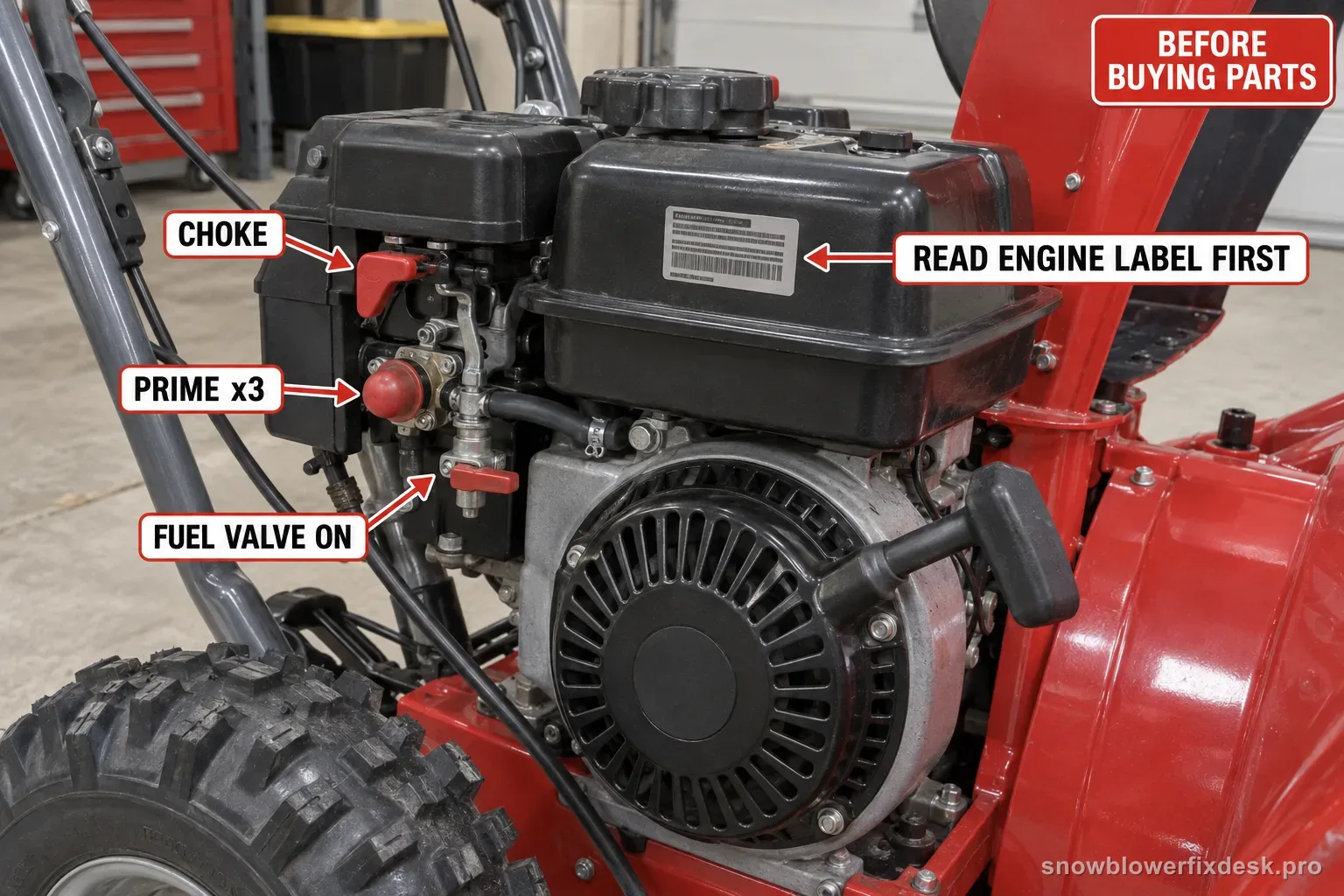

Keep chassis identity and engine identity separate. The SB410 service code helps find the correct machine-side controls and parts, but Craftsman/MTD does not publish one guaranteed engine sub-model for every unit under the retail name. Read the engine label before using a spark-plug number, carburetor part or engine-specific adjustment. If the engine cranks normally, work through switch/key, choke/primer, fuel condition and plug connection first; if it does not crank, stay on the starting-system branch instead of treating every no-start as carburetion.

Keep chassis identity and engine identity separate on the SB410. The 31AS6BEE793 machine documents establish the snow-blower platform, while plug, choke, priming and engine-service details must still match the engine manual used on that chassis. If the engine cranks but never fires, work through the normal control, fuel-age and spark-connection observations before ordering a carburetor. If the electric starter does not crank the engine, leave the combustion branch and verify the starting circuit instead. That split matters on a Craftsman family with several manual revisions, because “won’t start” is otherwise broad enough to invite unrelated procedures from a different MTD-built generation.

Retest without creating a second problem

Make the next start attempt outdoors with auger and drive controls released. Change one variable at a time—fresh fuel, control state, plug connection—so the result stays diagnostic. Avoid repeated long electric-starter cycles; follow the engine manual duty/cooling guidance for your matched engine.

Make one controlled restart after each correction, outdoors and with auger/drive controls released. Keep electric-start presses within the matched engine-manual duty limit. If the engine still will not start after the full documented sequence, preserve the observations and use the authorized service path instead of continuing to crank or altering governor/carburetor settings.

Model-specific notes

• Machine identity alone is not enough for fuel, ignition or starter components; use the engine’s own model and serial label for those parts.
• CMXGBAM1054541 is the retail Craftsman identifier; 31AS6BEE793 is the chassis/service model used in manufacturer service material.
