Troy-Bilt Storm 2410 Won't Move: Drive Cable, Belt or Friction Wheel

Diagnostic sequence

Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.

How to read this symptom on this model

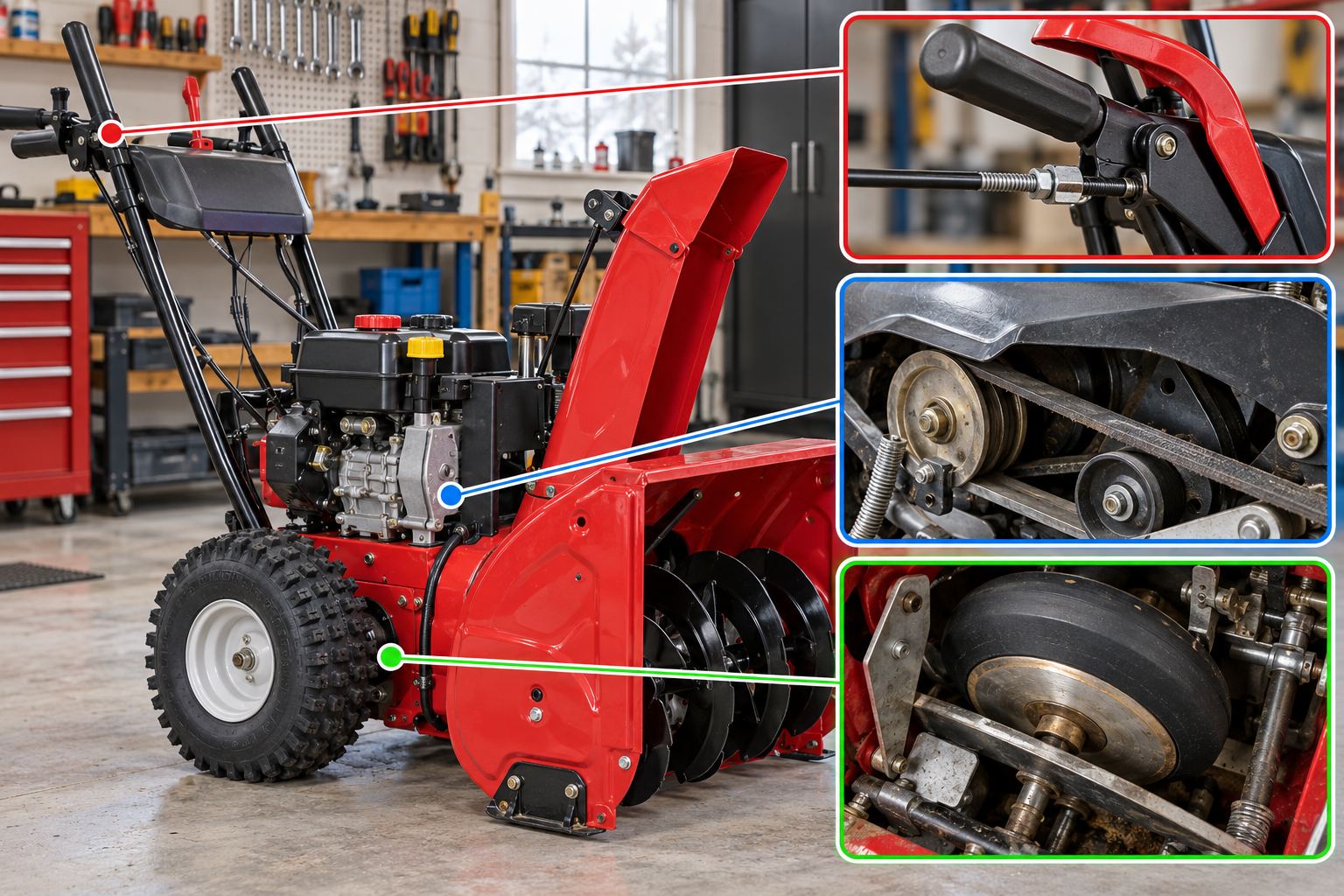

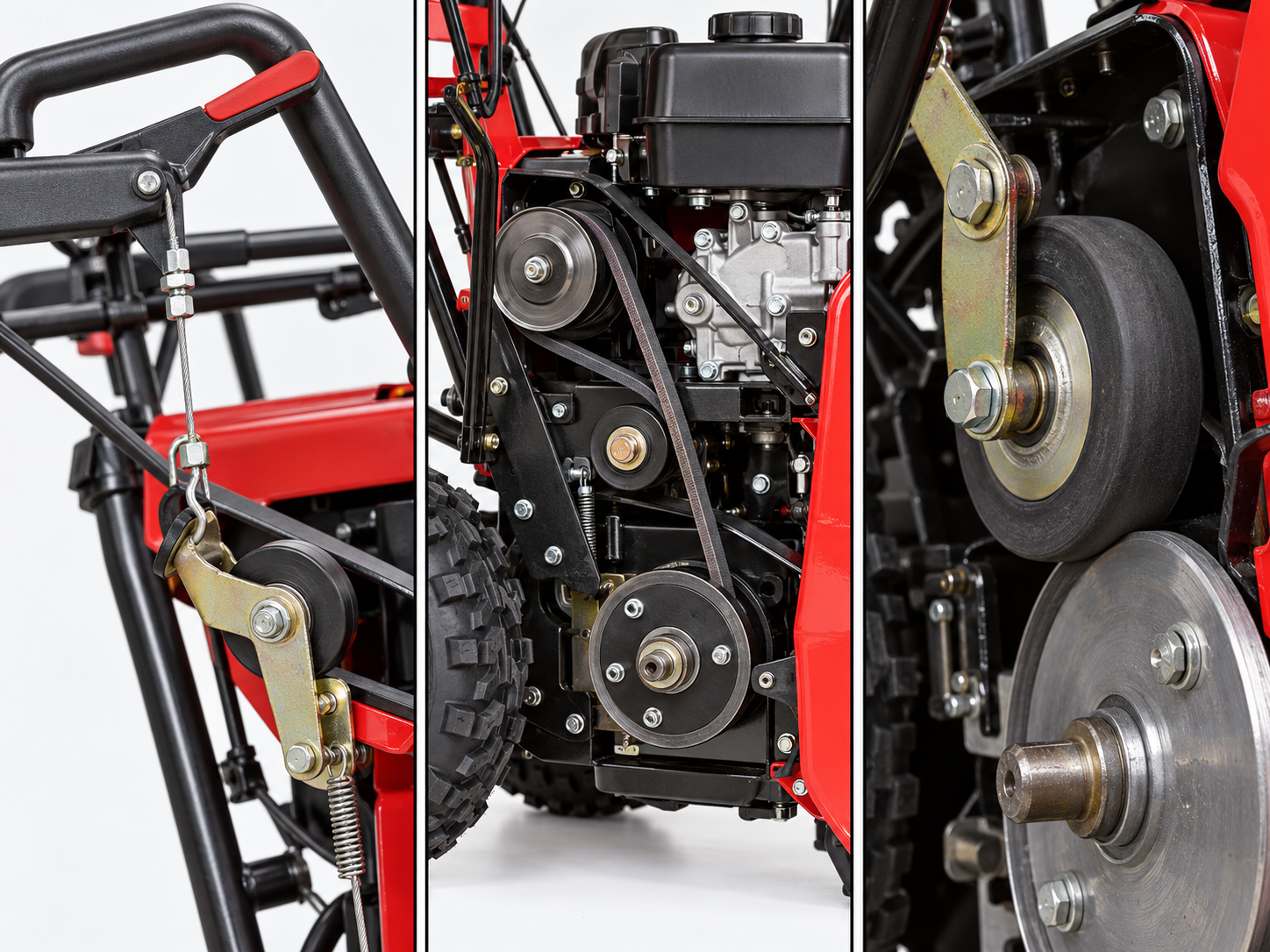

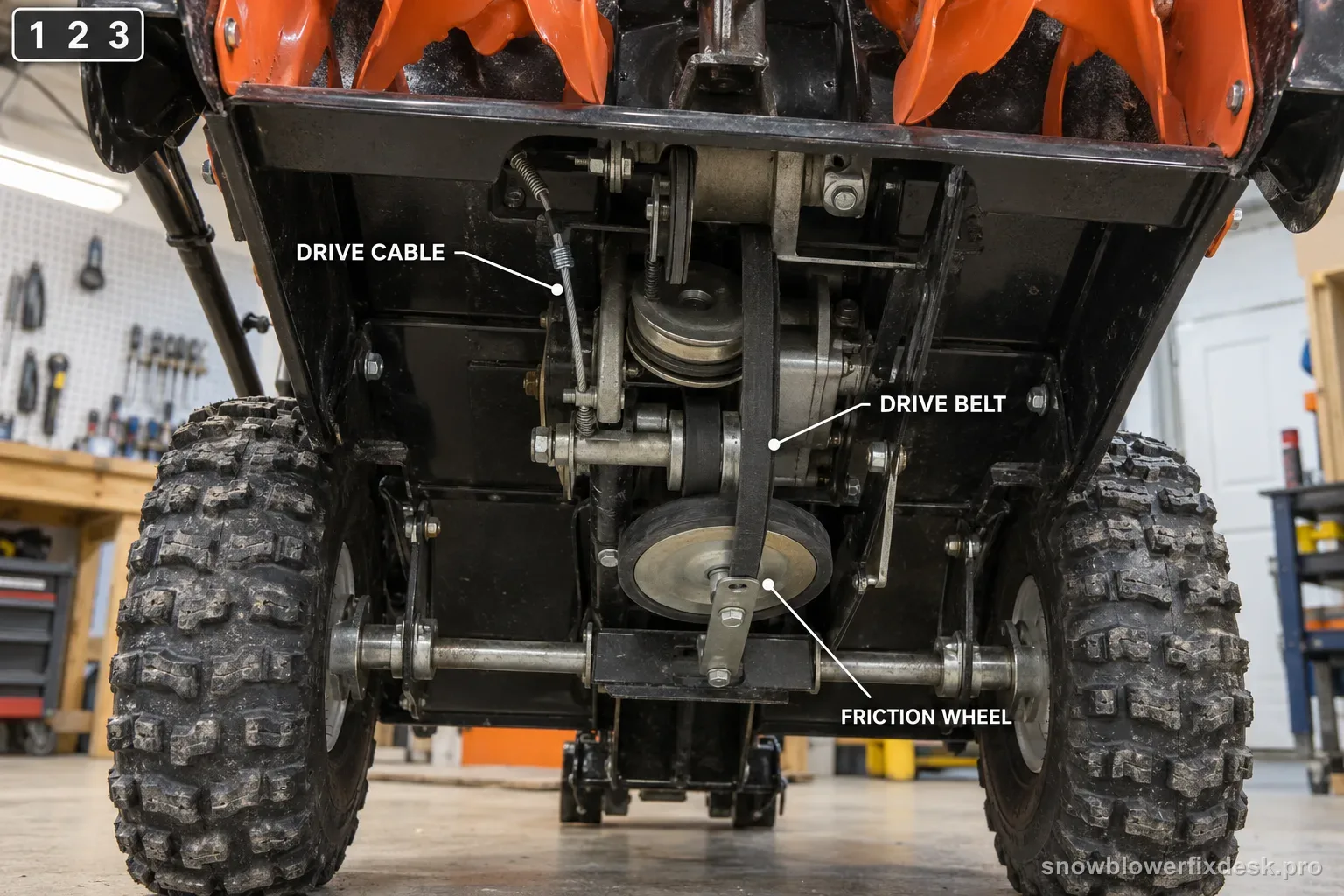

Loss of wheel drive on a Storm 2410 should not start with the transmission as a single expensive suspect. Troy-Bilt’s two-stage troubleshooting path begins with cable adjustment, then belts, and treats the rubber friction wheel as a normal wear item for wheel-drive loss. That gives a practical order: confirm the drive control actually removes slack, inspect whether the drive belt is transferring motion, then assess friction-wheel condition. Each step uses a different observation and prevents a worn cable or service item from being mislabelled as a failed gearbox.

First confirm the full 11-character Product Identification Label. Storm 2410 has been sold under multiple model numbers, including 31BS6KN2766 and 31BS6BN2766, and Troy-Bilt resolves manuals and genuine parts from that full number. A drive belt or cable advertised for “2410” is not sufficient evidence of fit. Record the exact model before opening the drive system or ordering a friction wheel.

Cable feel is a useful low-cost branch. Troy-Bilt notes that snow-blower cables stretch over time and directs owners to the final-adjustment procedure in the matched manual. A lever with obvious slack that never loads the drive system should be corrected to specification before the friction wheel is condemned. Do not simply overtighten until the machine creeps; the drive still needs to disengage correctly when the lever is released, and shifting should be done with the drive control released.

If cable and belt operation are confirmed, inspect the friction wheel under the correct service procedure. Troy-Bilt describes the exposed rubber as a wear surface and recommends replacement when the exposed rubber is worn to approximately 1/8 inch. A glazed, chunked or severely worn wheel can lose grip under load even if the machine moves while raised or unloaded. Continuing to run badly worn friction rubber can damage the rest of the drive system, so the answer is the correct wear item—not extra cable tension to force engagement.

Troy-Bilt's own support article puts the drive-loss sequence in a useful order: first restore cable adjustment from the matched operator manual, then inspect the drive belt, and for wheel-drive loss inspect the rubber friction wheel. The manufacturer describes that rubber as a normal wear item and says replacement should be considered when exposed rubber reaches about 1/8 inch. That is a better service threshold than judging the wheel only by whether some rubber remains visible.

Use disengagement as a second check after any drive-cable correction. A Storm 2410 that begins moving after cable adjustment but still drags or creeps with the drive control released has not passed the repair. Troy-Bilt's manual family treats cable adjustment, belt condition and friction-wheel wear as separate branches, so the goal is not maximum cable tension; it is enough controlled engagement to drive while preserving a clean release. Record whether every forward and reverse position is affected, because a total loss across all speeds is different evidence from one selector position behaving abnormally.

On Storm 2410 family, the order between “Drive-control test” and “Cable slack” matters because each answers a different question. With the control released the unit should roll freely; engaged, the wheels should resist being pushed. Meanwhile, excessive slack can make drive engagement intermittent. Preserve which check passed and which did not before moving deeper. That record is especially useful when the owner describes everything simply as “won't propel,” because the phrase alone does not identify the failed branch.

Compare low forward and reverse before treating the friction wheel as failed. If the machine drives in one direction or speed but not another, selector/linkage behavior deserves attention before a full friction-drive replacement. If no direction works and the drive lever has excess slack, cable engagement rises on the list. A worn friction wheel becomes more credible after cable travel and belt condition are verified and the engine still runs normally while traction slips under load.

Do not diagnose the friction wheel from a single powered test. First use the manual-style static check: with drive released the machine should roll, and with the control engaged the wheels should resist being pushed. Then compare that result with actual low-speed forward and reverse operation. If the static control test fails, cable engagement stays ahead of friction-wheel replacement. If the static test is credible but the drive slips only under load, inspect belt condition before opening the friction-wheel area. That sequence keeps three different traction faults from being collapsed into “needs a friction disc.”

Retest without creating a second problem

With covers and guards restored, test first forward and first reverse positions on a flat clear surface. The machine should move when the drive control is engaged and stop when it is released; do not evaluate only one direction.

Then test under a modest snow load. A drive that works unloaded but slips as soon as resistance rises is meaningful evidence for belt/friction transfer. If either direction still fails after correct cable setting and serviceable wear components are confirmed, stop before improvised internal adjustments and use the matched manual or service support.

Model-specific notes

• Release the drive control before changing speeds; Troy-Bilt warns that shifting under drive increases wear.
• A snow blower that moves intermittently often deserves cable/belt inspection before engine troubleshooting.
