Craftsman SB410 Chute Hard to Turn: Ice, Assembly, or Control Preload?

Diagnostic sequence

Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.

How to read this symptom on this model

The 500/600/800 operator-manual family illustrates several chute-control architectures. That means “SB410 chute hard to turn” must begin by identifying the actual control style on the 31AS6BEE793 machine, not by borrowing the first preload nut or joystick procedure found online.

Freeze-up and a repeatable dry bind are different symptoms. Ice often creates broad stiffness that changes after thawing, while a bent rod, mis-engaged bracket or damaged gear tends to bind at the same position when dry. Forcing the control can erase that distinction by causing new damage.

Treat the product identity as part of the diagnosis. The manufacturer-hosted warranty/service supplement maps retail model CMXGBAM1054541 to chassis 31AS6BEE793, while the chassis service catalog lists several 31X 500/600/800 operator-manual forms across production history. A chute procedure copied from a different Craftsman badge or a different control architecture can create a new bind even when the original problem was only ice.

Use the way the chute binds to separate environmental resistance from a hardware problem. Broad stiffness that appears only after wet snow and disappears after a full thaw supports the freeze-up branch. A dry, repeatable stop at the same angle supports a bent, mis-engaged or damaged control path instead. Preserve that observation before loosening hardware because random adjustment can make both symptoms feel the same.

The exact chassis catalog is useful for parts identity, but a parts diagram is not proof that a listed gear, rod or cable has failed. Confirm engagement, alignment and free motion first. If the control is smooth with the machine fully thawed and then becomes hard only after snow packs around the chute base, replacing a worm gear or control component would be evidence-poor.

Do not solve high control effort by adding leverage to the handle. Forcing a frozen or misaligned chute can strip gears, bend rods or crack polymer parts, which changes a reversible freeze-up into a parts failure. If the mechanism still has a hard dry bind after thawing and visual alignment checks, stop at the matched manual/service branch.

Identify the actual chute-control style before adjusting anything. The 500/600/800-series manual family covers more than one arrangement, so a nut or preload instruction from another control can create a bind on the SB410 rather than fix it. Use the 31AS6BEE793 parts view and the hardware on the machine to establish which rod, bracket or overhead control is present. If that identity is uncertain, stop before applying a measurement from a neighboring model.

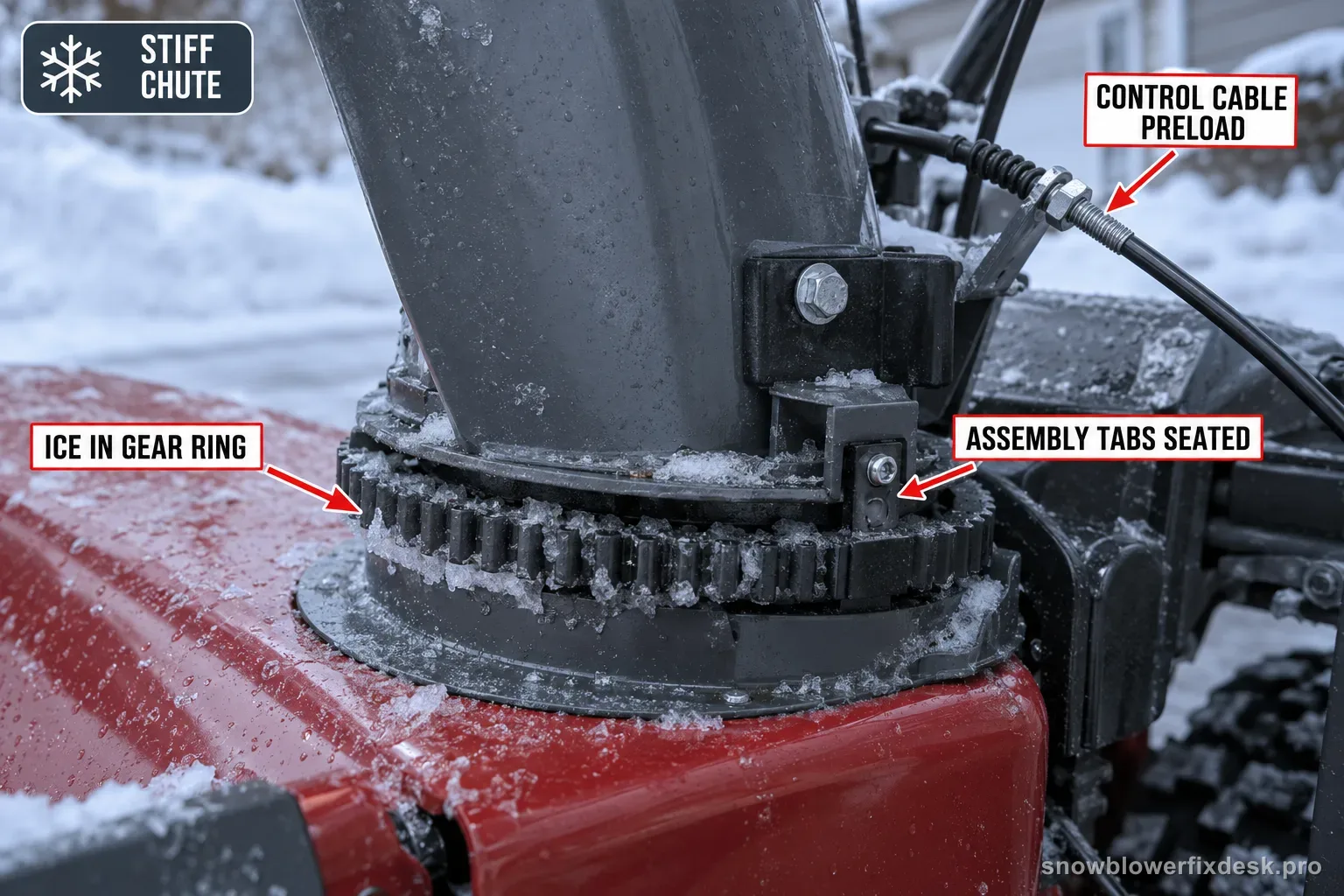

Ice and packed snow should be eliminated without force. With the engine off and all movement stopped, thaw or remove accumulation around the chute base and control path, then rotate the chute slowly. A control that becomes smooth after thawing has given useful freeze-up evidence. A dry hard spot that repeats at the same angle is different; inspect rod engagement, brackets and visible gear alignment instead of pulling harder on the crank.

Preload is a last owner-level branch and only applies if the matched control design actually uses it. Too much preload can make a chute difficult to turn, but loosening hardware on the wrong mechanism can create play or loss of control. If assembly is correct, ice is gone and a repeatable bind remains, preserve the exact angle and direction where it occurs and use the chassis service path. Forcing past the bind risks stripping a gear or bending a rod that was not the original problem.

A thawed chute should be moved slowly through its entire range before any preload adjustment is attempted. If resistance is smooth but uniformly high, look for control routing, assembly, or applicable preload instructions in the matched manual family. If the bind repeats at one angle, inspect the local rod, bracket, or gear relationship instead of loosening every fastener. Because the broad 500/600/800 documentation covers more than one chute-control design, identify the hardware actually fitted to 31AS6BEE793 before applying any adjustment that assumes an overhead, crank, or other control style.

Retest without creating a second problem

With the engine off, rotate the chute repeatedly through its usable range and confirm the motion is smooth after correction. The first powered snow test should use light load. Stop if the hard bind returns rather than continuing to force the control under vibration.

Retest first with the engine off through the full left-right range, then make a short powered test in light snow from the operator position. The control should remain smooth without forcing and should hold its intended position. If effort rises again only as ice accumulates, return to the freeze-prevention/cleanup branch instead of tightening the control further.

Model-specific notes

• Several chute assemblies appear in the service-manual family; identify the assembly on the machine before touching preload, fasteners, or cable settings.
• Exact chassis identity and the installed chute-control style matter more than the Craftsman badge alone.
