Craftsman SB410 Won't Throw Snow: Clog, Shear Pins, Cable or Belt

Diagnostic sequence

Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.

How to read this symptom on this model

The SB410 page is deliberately chassis-gated because Craftsman retail name CMXGBAM1054541 maps to MTD service chassis 31AS6BEE793, and the manufacturer catalog lists multiple operator-manual forms across that chassis history. The right level of certainty is therefore: the broad discharge sequence is well supported, while a cable dimension or exact part must wait for the matched revision.

Separate the snow path from the engine. A packed chute, lodged object, sheared auger hardware, inadequate attachment-control engagement or a slipping belt can all produce little or no discharge while the engine continues to sound normal. If engine speed itself collapses in light load, that is a separate engine branch; do not let it replace the physical attachment checks.

Impact history matters. A sudden no-throw immediately after hitting hidden debris points toward obstruction or sacrificial hardware. Gradual shortening of throw over many uses can fit belt/control wear or snow-condition changes. A machine that throws acceptably in powder but packs repeatedly in wet slush may be mechanically sound and simply overfed.

Do not infer a failed impeller or gearbox merely because the auger housing is full of snow. First clear the chute and housing, then observe whether both auger sections and the impeller respond when the attachment is safely engaged. That observation distinguishes a blocked path from a drive system that never transmits torque.

The manual revision gate becomes important when the diagnosis reaches adjustment. The 31X 500/600/800 family evolved, and the service catalog for 31AS6BEE793 lists several forms. Use the exact machine record instead of transferring a bracket position or belt part from another revision that happens to look similar.

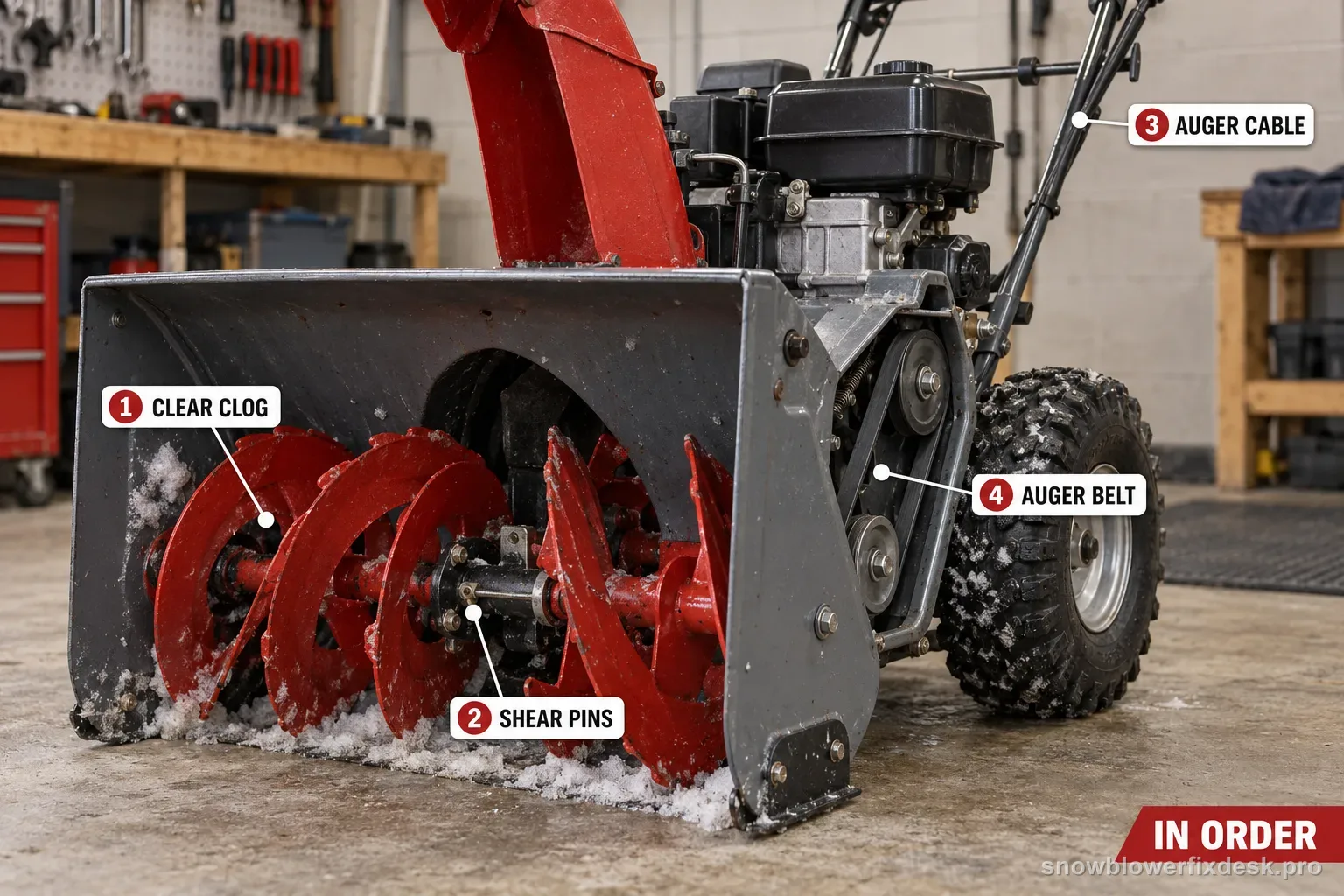

Complete loss of discharge after an impact should be treated differently from gradually shorter throw. Shut the machine down, clear the chute and housing, and inspect each auger section for correct shear hardware. If one section no longer follows the shaft, fix the protective fastener only after the object or jam is removed. If both sections are free and intact, move to control engagement and belt condition instead of opening the engine fuel system.

A belt can look acceptable at rest and still slip when snow load rises. After the chute is clear and the auger can turn, observe whether the attachment drives normally with no snow and then loses speed in a narrow light pass. That load-dependent pattern makes belt or control transfer more credible. If the engine itself audibly bogs, use the loss-of-power path instead; normal engine sound with weak attachment motion belongs here.

Wet, slushy snow is a final operating-condition check, not a reason to ignore a mechanical fault. Use a narrow pass and a consistent pace after any correction. If normal discharge returns only when feed rate is reduced, keep snow load in the diagnosis. If output remains poor in ordinary snow with a clear path, intact shear hardware and credible control travel, stop repeating the same clog check and move to the chassis-matched belt/service branch.

Observe the impeller path after the chute is cleared rather than using engine sound alone. One auger section that stops after impact favors shear hardware; both sections turning while the snow stream fades under load makes belt or control transfer more plausible; a completely clear housing that still receives no attachment drive moves the diagnosis deeper. Make only a brief safe retest after each correction. Repeatedly feeding packed snow into a machine that is not moving material can create the very belt damage or shear failure that was not present at the beginning of the diagnosis.

Retest without creating a second problem

Reassemble guards and test the attachment unloaded first. Confirm engagement and normal stop on release before feeding snow into the housing.

Use a narrow pass in consistent snow. If discharge is restored in light/moderate load but falls apart only when the machine is overfed with wet snow, adjust swath and pace before calling the repair unsuccessful.

If the machine still has no discharge with a physically clear path, intact shear hardware and apparent control engagement, preserve the chassis ID, manual revision and the under-load/no-load pattern for the belt/attachment service step.

Model-specific notes

• If the engine sounds normal while the attachment does not move snow, stay on the chute/auger/control/belt path before diagnosing carburetion.
• A sudden complete loss immediately after impact is different evidence from gradually weaker discharge across several uses.
