Craftsman SB410 Shear Pin Keeps Breaking: Find the Bind Before Another Pin

Diagnostic sequence

Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.

How to read this symptom on this model

A shear pin is not a nuisance fastener that should be made stronger. It is a deliberate weak link in the auger driveline. When the auger suddenly meets a solid object, the pin can fail before the shock reaches the gearcase and shaft. That is why one failure immediately after a known impact can be normal protection, while a second failure in ordinary snow is diagnostic information. The useful question is not “why are these pins weak?” but “what load is the pin repeatedly protecting the machine from?” That change in framing keeps the repair focused on the auger path instead of consuming hardware until a more expensive part fails.

Model identity matters unusually much on the SB410 because the retail name and the service chassis are different strings. Manufacturer material maps CMXGBAM1054541 to 31AS6BEE793 and lists multiple operator-manual revisions for that chassis. The current MTD exact-model parts page lists kit OEM-738-04124, while older documents can use an individual pin number or suffix. This is not a reason to mix whichever hardware is easiest to buy. It is a reason to keep the 11-character chassis, serial/year and matched manual together before ordering. A marketplace result that says “fits Craftsman 24-inch” is weaker evidence than the exact manufacturer catalog.

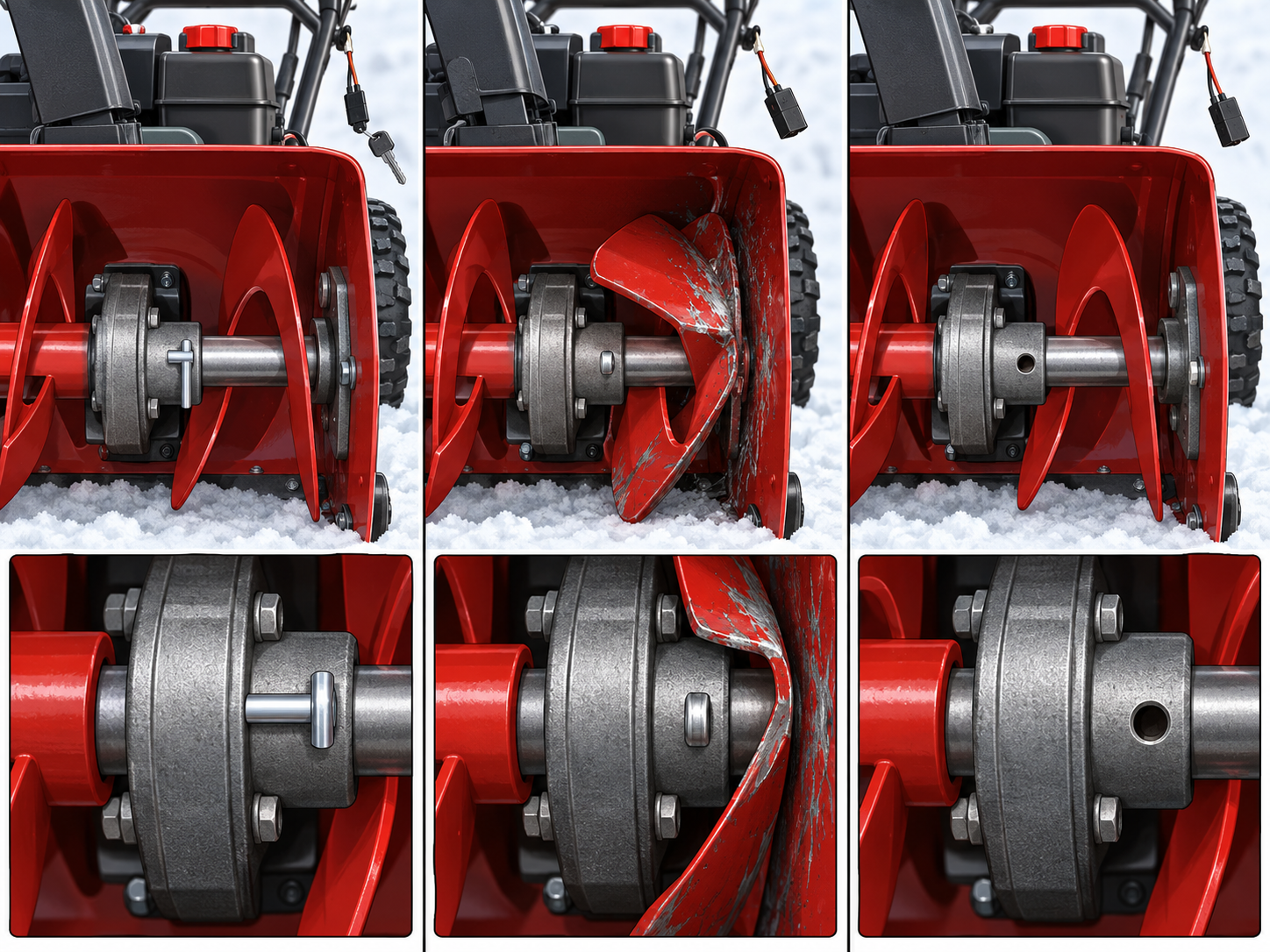

Failure pattern narrows the mechanical branch. If one pin broke once after a buried object, inspect and retest after the obstruction is gone. If the same side breaks repeatedly, compare that auger section with the opposite side for bending, rubbing, corrosion and abnormal resistance. If both sides fail under ordinary load, look for a whole-attachment overload such as packed ice or driveline binding rather than assuming two independent bad pins. A pin that fails in a clear, unloaded test is the strongest stop signal because snow load has been removed from the explanation.

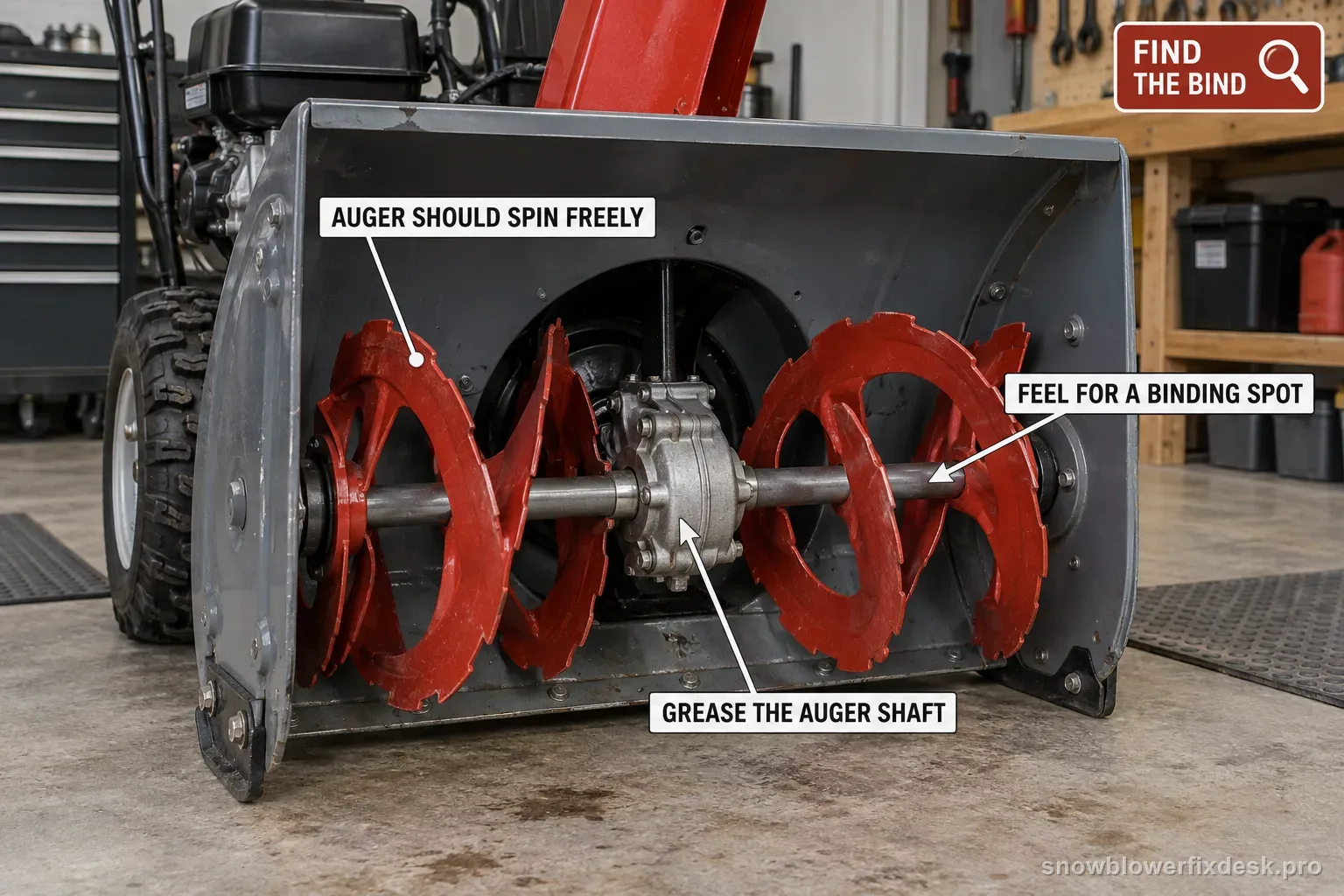

A frozen or rust-bound auger can look harmless when viewed from the front because the pin hole still lines up and a new fastener can be installed. The problem is the torque needed to move the auger on the shaft once power is applied. Follow the matched manual’s shaft-maintenance and lubrication guidance rather than forcing the flighting with a bar. If the auger does not move as the maintenance procedure expects, correct that bind before installing another test pin. Repeatedly powering a bound section teaches you only that the sacrificial connection is still doing its job.

The auger-not-turning page should remain separate from repeated shear-pin failure. A single sheared pin often explains why one auger section stopped turning, and replacing the correct pin after clearing the obstruction may end the repair. This page begins when the replacement itself becomes the symptom. That difference also changes the parts boundary: another pin is reasonable after a verified one-time impact and free auger; another pin is poor evidence when two correct replacements have already failed in the same unchanged conditions.

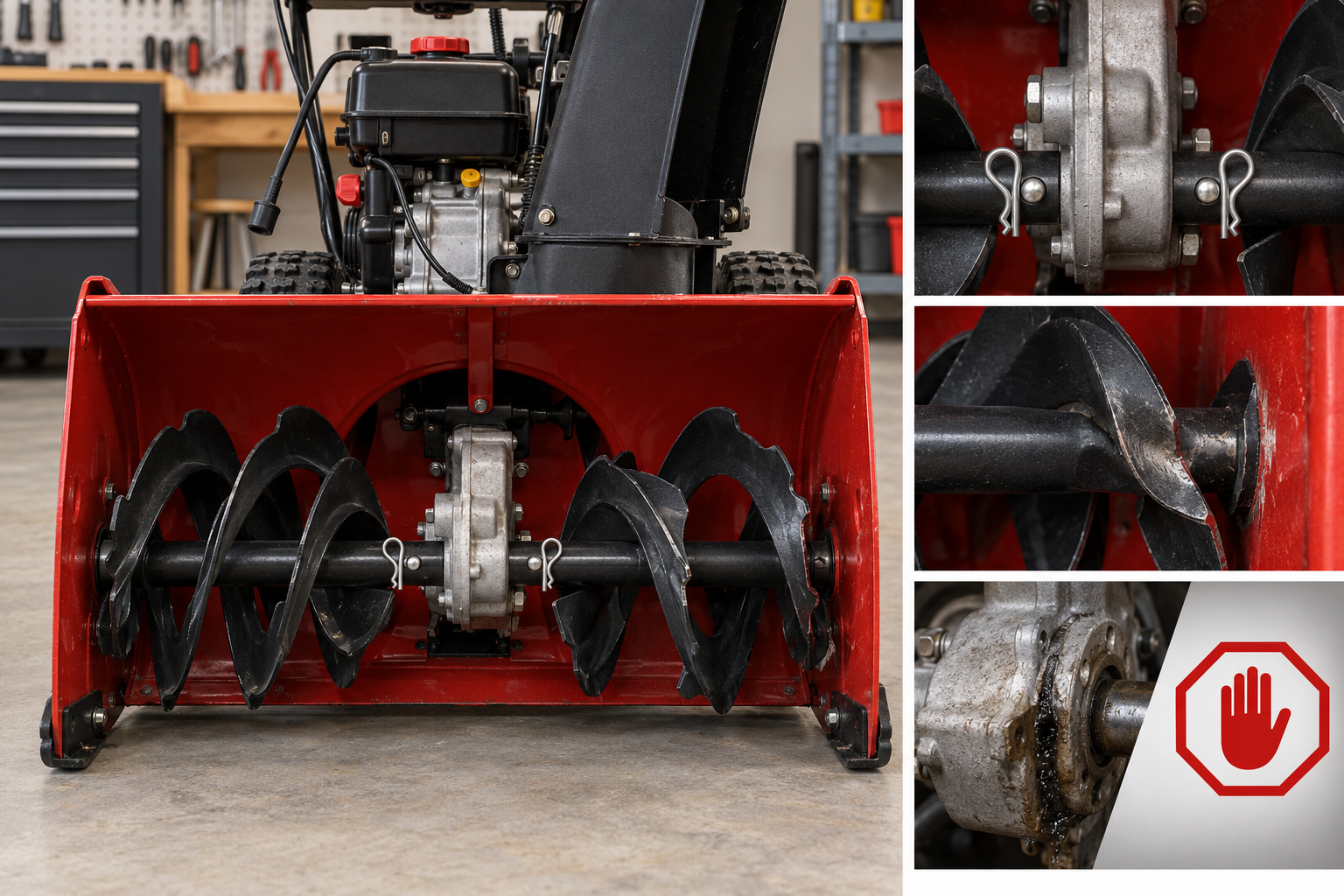

Impact history also decides whether vibration becomes the primary safety problem. If the pin broke after striking something and the machine now shakes when the attachment is engaged, stop using this repeated-pin path and inspect through the excessive-vibration branch. A bent auger, damaged impeller or shifted rotating part can both vibrate and overload the shear connection. Installing another pin before resolving the vibration can restore drive to a damaged rotating assembly and make the next powered test riskier than the first.

Do not diagnose the gearcase from a broken pin alone. The manufacturer designed the pin to break before the gearcase under certain overloads, so a successful sacrificial failure is not evidence that the gearcase has failed. Gearcase or bearing service becomes more plausible when the auger remains hard to move after clearing and maintenance checks, when the correct pin fails unloaded, when visible alignment is wrong or when abnormal noise/roughness persists with no external obstruction. Preserve those observations for service instead of opening the gearbox as the first response.

A clean retest should change only one important variable at a time. After the housing is clear and the correct pin is installed, run briefly with no snow. If that passes, use a narrow ordinary-snow pass away from frozen windrows and hidden debris. Record whether failure is tied to one side and whether it occurs immediately or only under heavy feed. This two-stage retest separates a mechanical bind from a snow-load problem much better than repeatedly returning to the same packed end-of-driveway pile and counting broken pins.

Retest without creating a second problem

With the correct pin installed and all guards in place, make the first powered test with no snow. Any immediate pin failure, heavy scraping or new vibration ends the test and supports deeper mechanical inspection.

If unloaded operation is smooth, use a narrow pass in ordinary snow with no known debris. A pin that survives this pass after one documented impact supports a one-time sacrificial event rather than an ongoing defect.

If the same side breaks again, stop replacing pins and preserve the failed side, load condition and impact history for service. Repetition under controlled conditions is evidence of a persistent bind or alignment problem.

After any impact repair, also listen and feel for vibration with the attachment engaged. New vibration is not a successful shear-pin repair even if the new pin remains intact.

Model-specific notes

• A broken shear pin and an auger that simply will not turn are adjacent symptoms, but they are not the same diagnosis. Use the SB410 auger-not-turning path when a single failed pin or drive loss has left the auger inactive; stay here when correct pins keep failing after replacement.
• The current exact-chassis parts listing is the purchase gate for 31AS6BEE793 and shows kit OEM-738-04124. Older manual forms can use individual component suffixes, so the full chassis/manual match matters more than a number copied from a forum.
• If a pin failed immediately after an obvious object strike and the auger is free, straight and quiet afterward, one failure may not imply a deeper defect. Repeated same-side failure without a new impact is much stronger evidence of a continuing mechanical load.
• New vibration after an impact changes the safety picture. Stop the machine and use the SB410 excessive-vibration diagnosis instead of treating another shear pin as the next experiment.
• Do not use pin strength as a tuning variable. The purpose of the shear connection is to protect more expensive rotating parts when the auger is abruptly stopped.
