Ariens Deluxe 24 921069 Auger Not Turning: Shear Bolt, Ice, Belt or Clutch?
Separate a broken shear bolt or frozen auger from attachment clutch and belt problems without putting hands in the housing.
Applies to Deluxe 24 (921069)
Identifiers: 921069 · Deluxe 24
Engine ID: Ariens AX 252cc current specification — verify engine label for parts
Guide scope: Applies to Ariens Deluxe 24 model 921069 serial 000101+ under operator manual 30219300A. Do not transfer clutch dimensions or shear-hardware details to legacy Deluxe 24 model 921024/921045 without matching their manuals.
Operator manual 30219300A identifies model 921069 serial 000101+. Current Ariens product data lists AX 252cc; keep the serial number and engine label with the machine before engine-specific parts.
The 921069 manual names broken shear bolts, clutch/brake adjustment, a frozen impeller, an obstruction and a slipping/worn auger belt as distinct causes.
Stop the engine, remove the key and wait for all moving parts to stop. Never reach into the chute or auger housing.

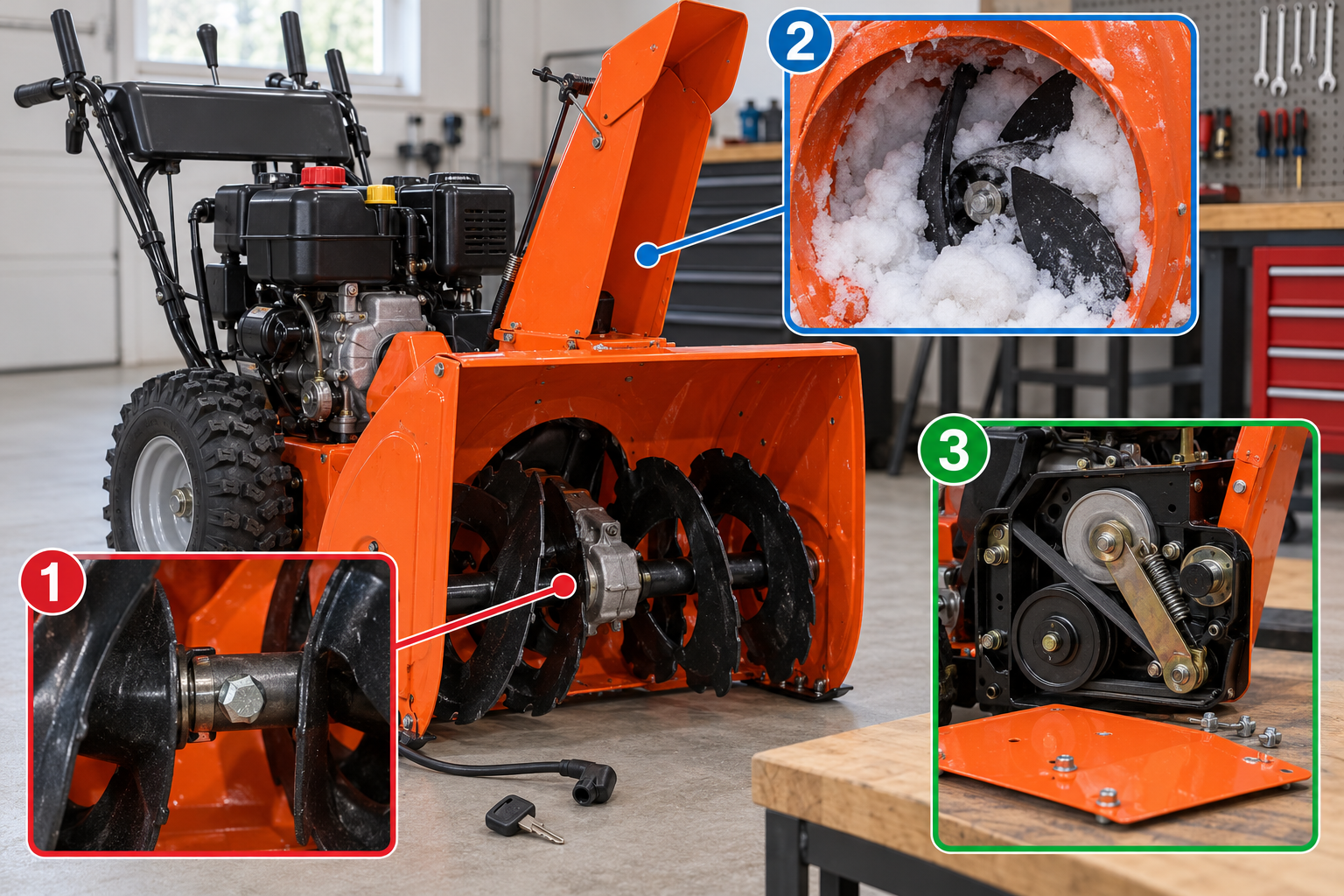

Diagnostic sequence
Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.
Which auger section stopped?
Why this check: A single free-spinning auger section often points to a sheared fastener rather than the entire drive system.
What to do: With the engine off and key removed, visually inspect the OEM shear bolt locations. Do not substitute a hardened bolt.
Ice or object jam
Why this check: The manual specifically lists a frozen impeller and debris obstruction.
What to do: Move the machine to a warm place if frozen. For debris, use the clean-out tool only after full shutdown.
Attachment clutch response
Why this check: Incorrect clutch/brake adjustment can keep the belt from transmitting motion.
What to do: Inspect cable condition and compare operation to the manual adjustment section. Stop if the auger does not stop within the manual safety limit when released.
Auger drive belt
Why this check: A slipping, worn or damaged belt is another listed cause.
What to do: If the belt squeals, sheds material or lacks drive, follow the service-manual belt procedure or use a dealer.
How to read this symptom on this model

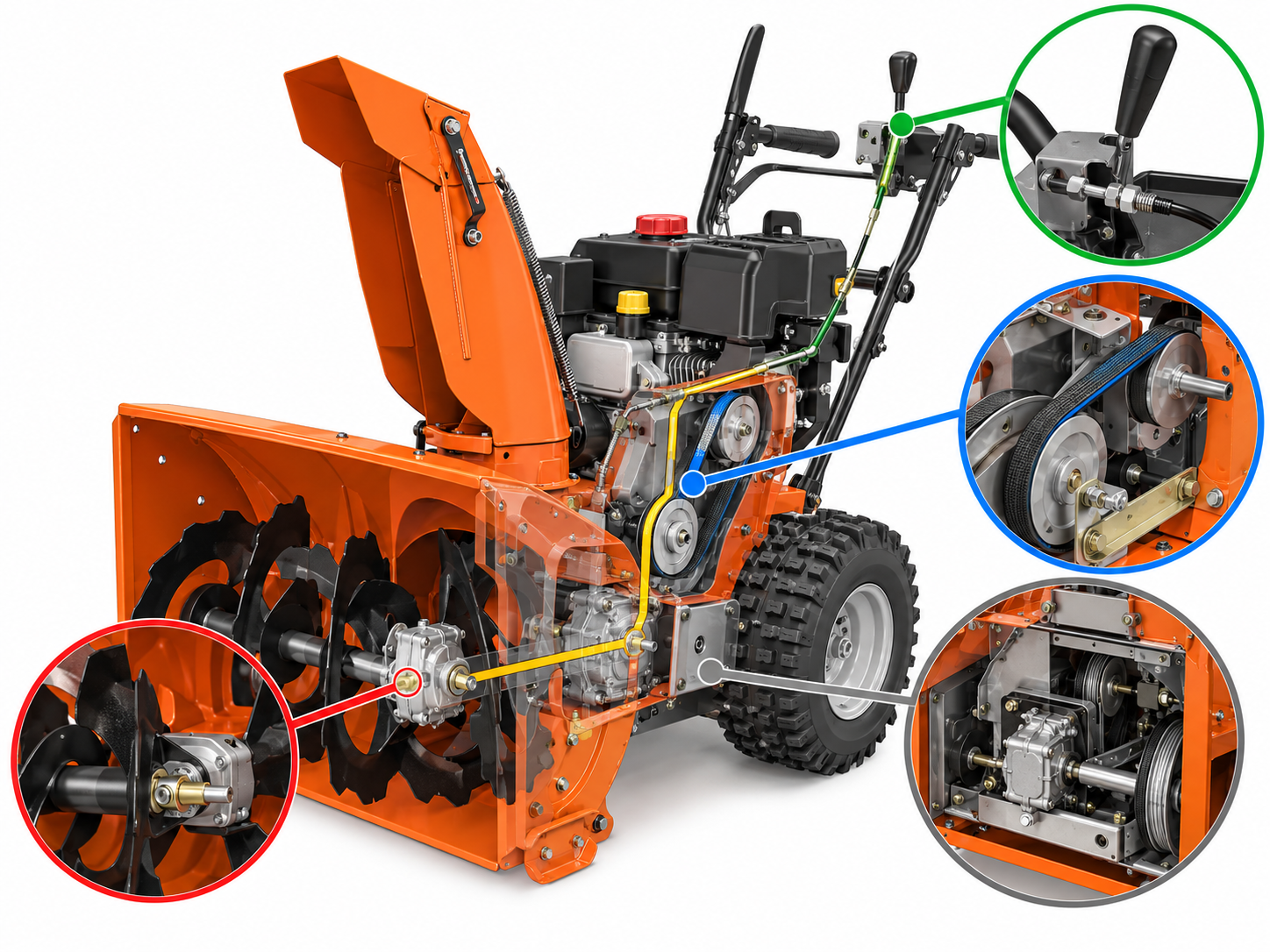

Use this page for Ariens Deluxe 24 model 921069 serial 000101+ and first decide whether one auger section is dead or the complete auger/impeller attachment does not turn. That observation is powerful because the current 30219300A troubleshooting table names broken shear bolts, attachment clutch/brake adjustment, a frozen impeller, an auger obstruction and a slipping/worn/damaged auger-drive belt as separate attachment-drive causes.
A single auger section that stopped after hitting a buried object fits a shear-bolt event much better than a total attachment-drive loss. The shear bolt is a sacrificial protection, so inspect the OEM shear positions before assuming the auger gearbox has failed. Do not install an ordinary hardened bolt in its place; stronger hardware can transfer the next impact into more expensive rotating parts.
If the complete attachment is locked, rule out ice and debris before touching the cable or belt. Ariens explicitly lists a frozen impeller and ice/debris obstructing the auger. Stop the engine, remove the key and wait for all moving parts to stop. Use the clean-out tool for the discharge path and thaw a frozen mechanism rather than forcing the attachment lever against a lock.
If the auger and impeller are physically free but the attachment does not engage, the clutch/brake branch becomes more relevant. The current manual links engagement and safe stopping: attachment clutch adjustment must provide enough drive while still allowing the auger/impeller to stop within 5 seconds after the lever is released. More cable tension is not automatically a repair if it defeats disengagement.
Watch what the control actually does. A lever with obvious slack or an attachment that barely begins to move can support the cable/clutch branch. A normal-feeling control with a physically free attachment that does not transfer power under load gives the belt branch more weight. These observations are more useful than opening the belt cover first and replacing whatever looks easiest.
The auger-drive belt belongs later in the owner-level branch after shear hardware, freeze-up/obstruction and clutch behavior are checked. Ariens lists a belt that is slipping, worn or damaged under poor/no throw. A belt can look intact yet fail to transmit useful load; conversely, a new belt will not make a frozen impeller turn. Diagnose the load path in order.
Keep this symptom separate from a simple clogged chute. A 921069 can have an auger/impeller that turns normally while discharge is blocked downstream. If the attachment visibly rotates with strength but snow cannot exit, use the discharge/poor-throw path instead. “No snow comes out” is not automatically “auger not turning.”
Also separate this from the scraper-blade “snow left behind” symptom. Ariens gives excessive snow left behind its own troubleshooting row tied to scraper wear/damage. A machine can leave a layer while the auger and impeller work perfectly. Keeping those symptom categories separate prevents unnecessary belt or clutch work.
Watch whether one auger section is free while the other still follows the shaft. That side-to-side difference is much more consistent with protective shear hardware than with a complete attachment-drive failure. If neither side moves, keep the frozen-impeller, obstruction, clutch and belt branches open. After any shear-bolt replacement, rotate only as the manual permits with the machine fully disabled and confirm the auger is not still bound; an immediate second shear failure means the overload was never removed.
The attachment-clutch check has two success conditions, not one. The auger must engage strongly enough to transmit load, but it must also disengage and stop within the manual limit when the lever is released. More cable tension can make a weak engagement look better while creating an unsafe stop condition. If correct adjustment cannot satisfy both engagement and stopping behavior, stop adjusting and move to the matched service procedure rather than compensating with a tighter cable.
After the auger turns again, the stopping test is just as important as the engagement test. A cable adjustment that removes slack can restore belt load, but excessive tension may keep the attachment partially engaged when the lever is released. Reinstall the belt cover, start the machine in an open area and make one brief no-load engagement from the operator position, then release the control and verify that the auger/impeller stops within the manual’s requirement. If engagement and stopping cannot both be achieved with the specified adjustment, stop tightening the cable and use the Ariens service path instead of accepting a rotating attachment as the price of stronger drive.
Before you order parts
Before buying an auger belt, clutch part or gearbox, confirm model 921069 / serial 000101+, inspect both shear-bolt positions, clear or thaw the housing and verify that the auger/impeller are physically free with the machine safely stopped.
If you adjust the attachment clutch, use the matched 30219300A procedure and keep the stopping requirement in the test. A repair that makes the attachment turn but no longer stop within 5 seconds is a safety failure, not an improvement.
If a correct shear bolt breaks again immediately, stop replacing pins. Repeated failure means a bind, obstruction, damage or other overload is still present and should be corrected before another powered test.
Back to the exact model hub →Retest without creating a second problem
Reinstall all guards and make the first powered test with nobody in the discharge path. Engage the attachment briefly with no snow, then release the lever and confirm the auger/impeller stops within the manual’s required 5-second window.
If the no-load test passes, make a narrow pass in light snow. One section failing again points toward shear/binding evidence; the complete attachment fading only under load makes belt/clutch transfer more plausible.
Stop if engagement is harsh, the attachment does not stop correctly, or a correct shear bolt fails again. Preserve the exact pattern for Ariens service rather than repeating tests that can turn a small fault into drivetrain damage.
Make sure this is the right symptom
The same search phrase can lead to a different branch on another machine. Compare the nearest model-specific examples: Ariens Deluxe 24 legacy (921024 / 921045): shear bolt keeps breaking · Troy-Bilt Storm 2410 family: auger not turning.
Model-specific notes
- Ariens recommends OEM shear bolts and gives a specified tightening range; overtightening or replacing with a regular bolt defeats the protective function.
- If both auger and impeller are mechanically locked, do not force the controls.
Questions people get wrong on this model
Why does the engine run normally while the auger stays still?
The engine can run normally while the attachment loses drive. On 921069, first note whether one auger section is inactive or the entire auger/impeller system is still; that split helps separate a shear-fastener event from a frozen, obstructed, clutch or belt branch. That distinction matters before disassembly.
Can I clear packed snow by hand with the engine off?
Use the clean-out tool, not your hands. With the engine off, key removed and all movement stopped, clear the discharge path and thaw a frozen impeller before any cable or belt adjustment. A physically locked attachment must be freed safely before a powered retest, with guards restored afterward.
How can one dead auger section change the diagnosis?
If one auger section lost drive after an impact while the rest still moves, inspect the OEM shear position before opening the belt system. If a correct shear bolt fails again immediately, stop: a continuing bind, obstruction or rotating-part problem is still loading the attachment. Do not substitute ordinary hardware.
