Husqvarna ST224 970528602 Pulls to One Side: Tire, Lock Pin, Skid Setup

Diagnostic sequence

Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.

How to read this symptom on this model

Husqvarna’s current troubleshooting row for “the product turns to one side” is strongly setup-oriented. It lists unequal tire pressure, a machine driving with only one wheel, uneven sledge adjustment and uneven skid-plate adjustment. That is important because a pull can feel like an internal steering or transmission problem even when the actual cause is external asymmetry.

Tire pressure is the cheapest controlled variable. If one tire has a different rolling radius or stiffness, the machine can drift even with a healthy traction system. Equalize both tires using the machine/tire guidance before changing any other setting so later comparisons are meaningful.

The one-wheel-drive branch requires a different observation: does one wheel actually fail to transmit drive? Husqvarna tells the owner to inspect the tire lock pin. If a lock pin is not in the intended drive configuration, the machine can turn toward the side that is not contributing normal traction. That should be checked before opening the friction-drive system.

Skid/sledge asymmetry changes how much housing weight and drag each side carries. One skid sitting lower can make that side scrape more heavily and steer the machine. Adjust both sides on a hard, level reference surface so the comparison is not distorted by ruts, packed snow or a crowned driveway.

Surface testing matters after setup. A machine can track straight on level concrete yet wander in deep ruts or across a driveway crown. If the pull changes with the surface, record that instead of immediately undoing a correct symmetric setup.

Only after all four current-manual branches are credible should the complaint be escalated as a deeper traction/steering issue. Preserving the same-side pull on a controlled level surface gives a technician much better evidence than a vague report that the machine “fights me in snow.”

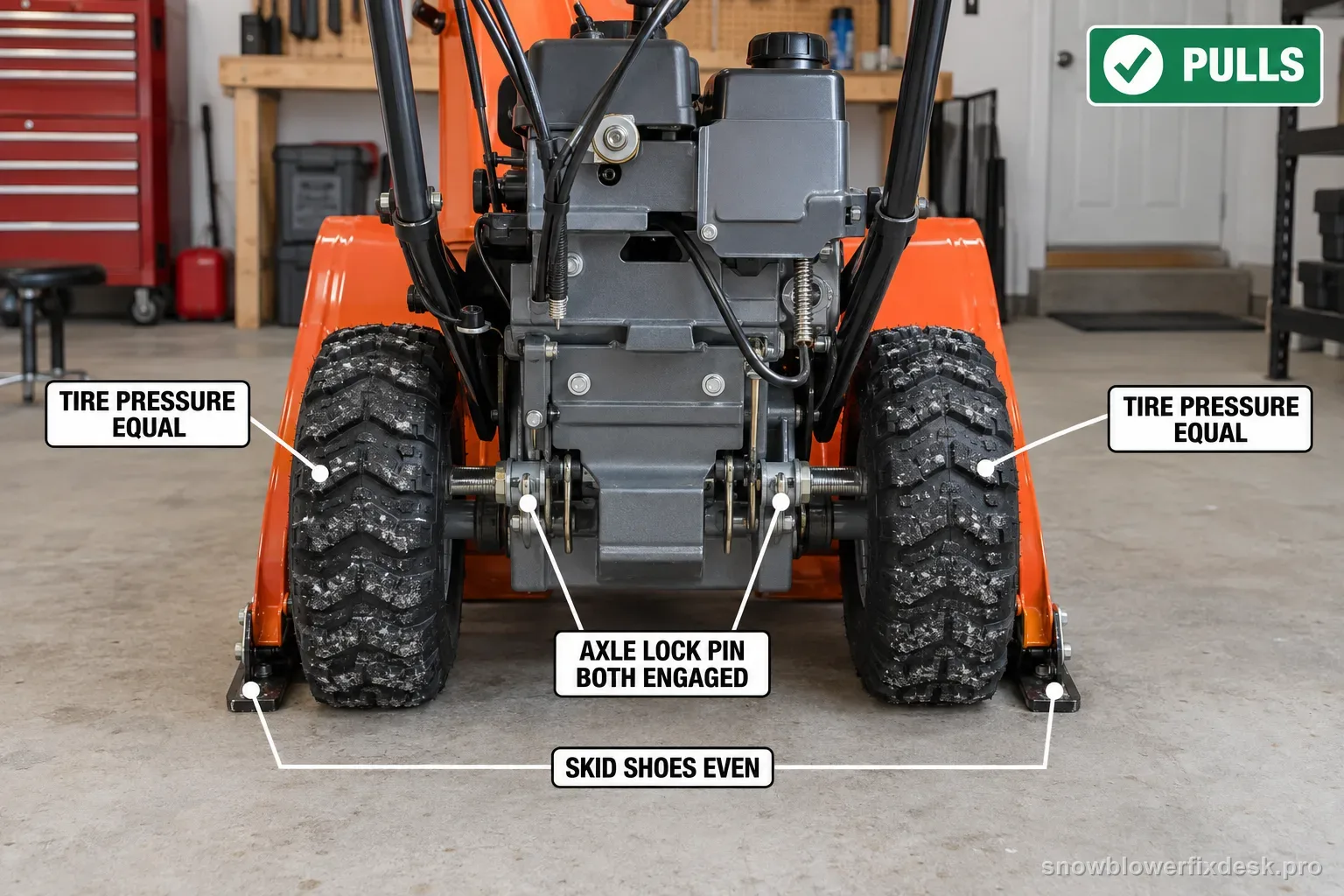

Straight tracking on the current ST 224 should be judged on a hard, level reference surface before snow conditions are allowed into the diagnosis. Equal tire pressure is the first baseline; a difference side to side can create steering input before any drive hardware is suspected. Once pressures match, repeat the same short path and note whether the machine still favors the same side. A pull that disappears on level ground but returns in ruts is not the same evidence as a repeatable setup fault.

The tire lock-pin branch is important because Husqvarna explicitly allows the symptom to come from only one wheel driving. Inspect the matched wheel/pin arrangement with the engine stopped rather than treating a one-sided pull as proof of an internal transmission failure. If both wheels are configured to drive and the symptom remains, then compare the sledge and skid settings side to side on the same reference floor; symmetry is the test, not an arbitrary height copied from another ST 224 generation.

A useful service handoff for 970528602 is a short list of eliminated setup causes: both tires at equal pressure, both wheel-drive lock points confirmed, skid/sledge settings matched, and the same-side pull reproduced on level ground. That collection is stronger than saying the snowblower “steers badly.” It also keeps the current 970528602 procedure separate from legacy 961930096, whose shared ST 224 name does not establish the same adjustment or parts path.

Do the powered confirmation only after the static setup checks are complete. With equal tire pressure, both wheel-lock points confirmed and both skid/sledge settings matched, use one slow straight pass on level ground with the auger disengaged. A pull that repeats to the same side under those controlled conditions is materially different from a machine that only wanders in deep ruts or on a crowned drive. Keep that distinction in the service notes, because it shows that the four manufacturer-listed external causes were actually tested rather than merely looked at.

Repeat the traction comparison with the auger disengaged and the machine on a level surface so snow load is not steering the housing. Check the obvious external asymmetries first—tire condition/pressure where applicable, control response and skid/scraper setup—then note whether the ST 224 consistently favors the same side in both low forward and reverse. A pull that appears only when one side is climbing a bank or packed ridge is different evidence from a same-side drift on flat ground. If the external setup is symmetric and the pull remains repeatable, preserve the direction and operating condition for the current 970528602 service path rather than compensating with deliberately unequal setup.

Retest without creating a second problem

Make the first powered test at a slow forward speed on the same level surface with the auger disengaged. Note whether the machine holds a straight line without constant handle correction.

Test gentle left and right turns, then return to straight travel. If one wheel is not contributing drive, the pattern may show up again during these controlled transitions.

Finish with a short pass on the actual clearing surface. If it tracks straight on the controlled area but only wanders in ruts/deep snow, preserve that surface-dependent result. If the same-side pull remains everywhere after the listed setup branches are corrected, move to service with those measurements documented.

Model-specific notes

• Do not compensate for a pull by intentionally running different tire pressures; that creates the very first fault condition Husqvarna lists.
• After changing skid/sledge setup, verify the housing still has appropriate clearance for the surface you actually clear.
