Husqvarna ST224 970528602 Weak or No Snow Discharge: Clear Path First
A current-SKU discharge diagnosis that follows Husqvarna’s belt, clogged-deflector, foreign-object and broken-shear-pin branches before deeper service.
Applies to Current ST 224 NA — 970528602
Matched SKU identifiers: 970528602 · 970 52 86-02
Engine ID: Husqvarna engine — generation dependent
Generation engine: Husqvarna 212cc / 12.9 cu.inch current engine family
Guide scope: This troubleshooting path is for current North American ST 224 SKU 970528602 / 970 52 86-02 with manual 2069-003. Legacy 961930096 is not treated as repair-equivalent without its own selected manual.
Husqvarna support requires choosing the SKU before manuals and parts. Troubleshooting coverage here is explicitly scoped to current North American SKU 970528602; support-listed SKUs 970468501 and 961930096 remain identity-only until their exact manual revisions are selected.
Discharge path vs. engine power
Use this page when the mechanical snow path is weak or blocked while you evaluate belt, chute, foreign-object and shear-pin branches. If the engine itself cannot hold power under load, use the decreased-power guide.
For current 970528602, separate a clogged chute/foreign object/broken shear pin from a drive belt that is slipping, worn or off its pulley; then retest with snow load and travel speed controlled.
Never clear the chute or auger housing by hand. Stop the engine, wait for all movement to stop, disconnect the spark-plug cable and use the clearing tool.
Diagnostic sequence
Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.
Verify current SKU 970528602
Why this check: ST 224 is a shared marketing name across generations.
What to do: Match 970 52 86-02 / 970528602 before using the current troubleshooting table or ordering a current-generation part.
Clear the chute/deflector safely
Why this check: The current manual explicitly lists a clogged chute deflector under loss or slowing of snow discharge.
What to do: Shut down completely and use the clearing tool. Do not reach into the chute even if the key has been removed.
Check foreign objects and shear pin
Why this check: Husqvarna separately lists foreign objects clogging the augers and a broken shear pin.
What to do: Inspect the auger housing only after shutdown. Remove the obstruction and replace only the correct shear hardware; if it fails again immediately, find the continuing overload.
Inspect belt slip, wear and pulley route
Why this check: The same troubleshooting table lists a slipping belt, a worn belt and a belt off its pulley.
What to do: Once the snow path is physically clear, inspect the attachment-drive belt and pulley route using the matched manual rather than buying a belt because throw distance feels short.
Control snow feed during retest
Why this check: The operating guidance calls for adapting speed to snow conditions and using full or near-full throttle.
What to do: Use a narrow pass at appropriate engine speed. If discharge improves when the housing is fed less snow, preserve that load sensitivity as evidence.
Escalate persistent clean-path weakness
Why this check: A clear chute, intact shear pin and correctly routed belt narrow the remaining mechanical possibilities.
What to do: If the machine still has weak discharge in modest snow after those checks, stop repeating clog clearing and move to model-specific belt/attachment service.
How to read this symptom on this model
The current Husqvarna table is unusually useful because it lists several distinct causes under loss or slowing of snow discharge: belt slip, belt wear, a belt off the pulley, a clogged chute deflector, foreign objects in the augers and a broken shear pin. That list supports a clear diagnostic order: prove the snow path is open and the sacrificial hardware is intact before treating weak throw as a deeper drive failure.
A sudden complete loss after striking debris has a different evidence pattern from gradual loss across several storms. Impact makes obstruction or a broken shear pin more likely. Gradual worsening under increasing load fits belt wear/slip more naturally. Preserving when and how the symptom began helps avoid replacing the belt for a one-time jam.
A clogged chute deflector is not only a “nothing comes out” symptom. Partial packed snow can shorten throw and make the machine sound loaded. Clear it safely and compare before/after performance; a strong recovery after clearing is useful evidence that no drive part needed to be replaced.
Operating load still matters after the machine is mechanically clear. Husqvarna tells the operator to adapt travel speed to snow conditions and use full or near-full throttle. A narrow pass that throws normally while a full housing stalls is evidence about feed rate, not permission to keep forcing the machine until something breaks.
Keep the SKU gate in front of all of these steps. The current 2069-003 path is being used for 970528602. The support presence of legacy 961930096 does not prove that its exact belt, cable or service details are identical.
Do not try to tune belt tension by guess once the external snow-path checks are clear. In the current ST 224 operator material, Husqvarna states that the auger and traction drive belts are not adjustable; a belt that is damaged or begins to slip from wear is replaced, and belt replacement is recommended for a qualified service center. That boundary matters on a weak-discharge complaint because it prevents a clear chute and intact shear hardware from turning into an improvised tensioning procedure that the manufacturer does not specify.

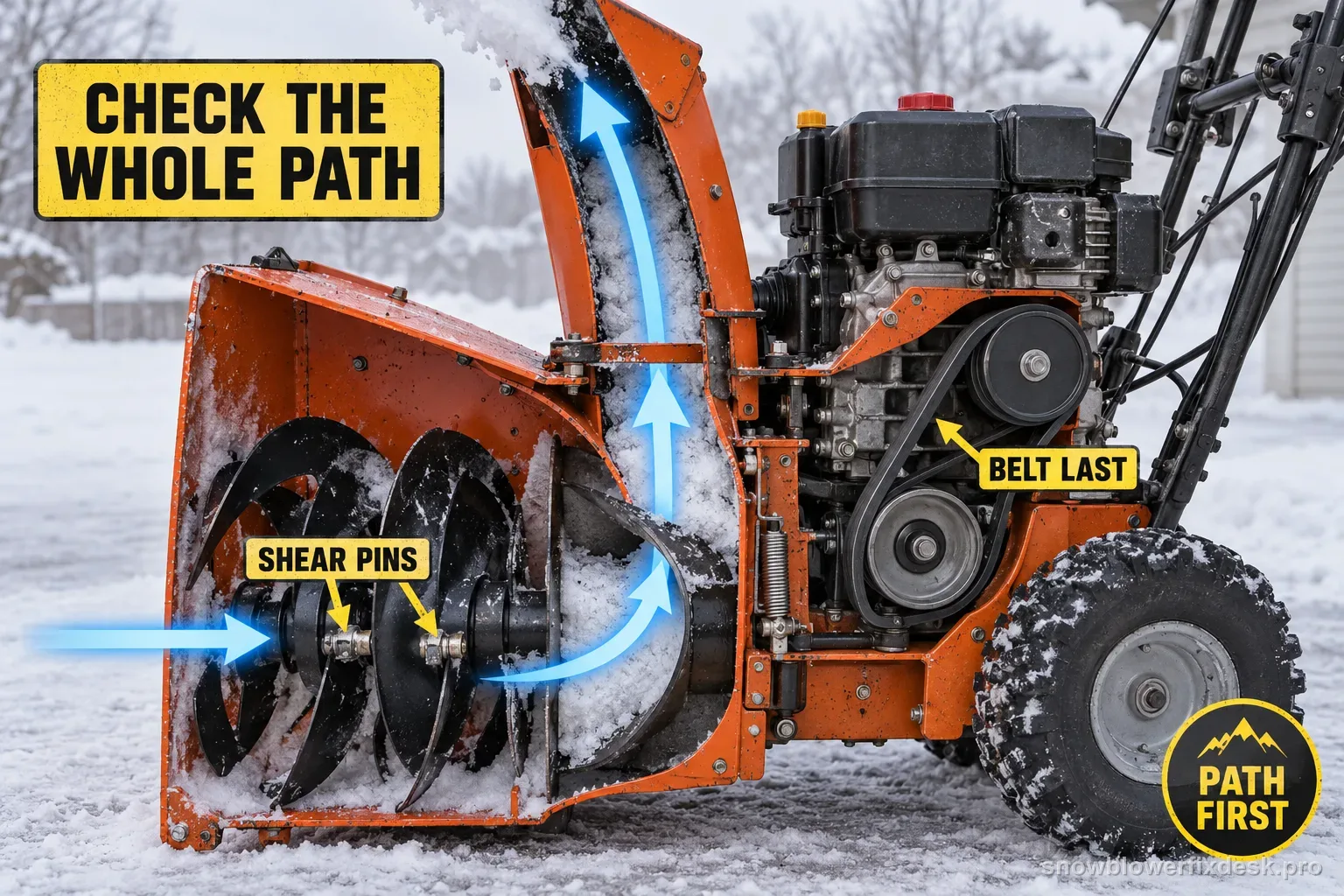

A current ST 224 that barely ejects snow should be split first by what is physically happening inside the snow path. With the engine stopped and the spark-plug lead handled as the manual requires, clear the chute with the tool and inspect for a foreign object or a broken shear pin. Those are different findings: a blockage explains a restricted path, while a failed shear fastener can leave part of the auger system unable to transfer load even after the chute itself looks open.
Only after the housing and chute are physically clear does the attachment-belt branch become useful. Husqvarna lists a belt that slips, is worn, or has left its pulley as separate discharge causes. Check routing and visible belt condition against the 970528602 documentation instead of buying a belt from throw distance alone. If the belt path appears correct, feed the machine a modest, narrow swath at the intended engine speed; an improvement under lighter feed is evidence about load sensitivity, not proof that the belt is bad.
Keep this mechanical discharge diagnosis separate from engine power and run quality. If the engine remains smooth while snow output is weak, continue with chute, shear, belt, and attachment-drive evidence. If rpm falls or the engine hunts, move to the decreased-power or rough-running page because the observed system has changed. A clean chute, intact shear hardware, correct belt route, and persistent weak output in ordinary snow is the point to stop repeating clearing checks and move to matched attachment service.
Before you order parts
Before buying an auger/attachment belt, clear the chute/deflector, inspect for foreign objects and verify shear hardware. A belt purchased before those external checks is often a guess.
Before buying shear pins in quantity, find the cause if one broke. If the auger remains frozen or obstructed, a new correct pin may simply protect the driveline again by breaking.
If the belt is on the pulley and looks serviceable, note whether it slips only under load or whether discharge is weak even unloaded. That distinction is better evidence for the next service step than a generic “doesn’t throw far” complaint.
Back to the exact model hub →Retest without creating a second problem
After correction, first engage the attachment briefly with no snow and verify normal stop on release. Then use a narrow pass at the operating speed recommended for clearing.
Keep snow conditions as consistent as practical. If discharge is normal in the narrow pass but drops only when the housing is overfed, reduce travel speed/swath rather than immediately replacing another part.
If a clear chute, intact shear hardware and normal belt route still produce weak discharge in modest snow, stop repeating external clean-out steps and move to the model-specific attachment-drive/service path.
Make sure this is the right symptom
If your machine is showing an adjacent symptom instead, switch paths before changing parts: low engine power under snow load.
The same search phrase can lead to a different branch on another machine. Compare the nearest model-specific examples: Ariens Deluxe 24 (921069): not throwing snow · Toro Power Clear 721 E (38753): not throwing snow.
Model-specific notes
- After use, remove accumulated snow/ice and exercise the chute as directed so refreeze does not create a false hardware diagnosis next time.
- A sudden no-discharge event immediately after striking debris points more strongly to obstruction/shear evidence than gradual belt wear.
Questions people get wrong on this model
Does weak throw prove the engine is failing?
No. The current Husqvarna troubleshooting table first gives several snow-path and attachment-drive causes, and operating load can also reduce discharge. If the belt is on the pulley and looks serviceable, note whether it slips only under load or whether discharge is weak even unloaded. If a clear chute, intact shear hardware and normal belt route still produce weak discharge in modest snow, stop repeating external clean-out steps and move to the model-specific attachment-drive/service path.
Can I replace the shear pin with a regular bolt?
No. Use the manufacturer-specified shear hardware so the sacrificial protection is preserved. Remove the obstruction and replace only the correct shear hardware; if it fails again immediately, find the continuing overload. Husqvarna separately lists foreign objects clogging the augers and a broken shear pin. A clear chute, intact shear pin and correctly routed belt narrow the remaining mechanical possibilities.
If the discharge chute is open, what should I check next?
Confirm the auger/impeller path, shear hardware and attachment drive are actually transmitting power. A clear chute removes only the blockage branch; it does not rule out a broken shear fastener, belt problem or other attachment-side fault. If a clear chute, intact shear hardware and normal belt route still produce weak discharge in modest snow, stop repeating external clean-out steps and move to the model-specific attachment-drive/service path.
