Husqvarna ST224 970528602 Starter Rope Hard to Pull: Frozen or Interfering?
A narrow current-ST224 starter-rope path using Husqvarna’s frozen-recoil and cable/hose-interference branches instead of forcing the rope.
Applies to Current ST 224 NA — 970528602
Matched SKU identifiers: 970528602 · 970 52 86-02
Engine ID: Husqvarna engine — generation dependent
Generation engine: Husqvarna 212cc / 12.9 cu.inch current engine family
Guide scope: Use only for current North American Husqvarna ST 224 SKU 970528602 / 970 52 86-02 under operator manual 2069-003. Legacy 961930096 is not assumed to share the same recoil-routing or freeze-up guidance.
Husqvarna support requires choosing the SKU before manuals and parts. Troubleshooting coverage here is explicitly scoped to current North American SKU 970528602; support-listed SKUs 970468501 and 961930096 remain identity-only until their exact manual revisions are selected.

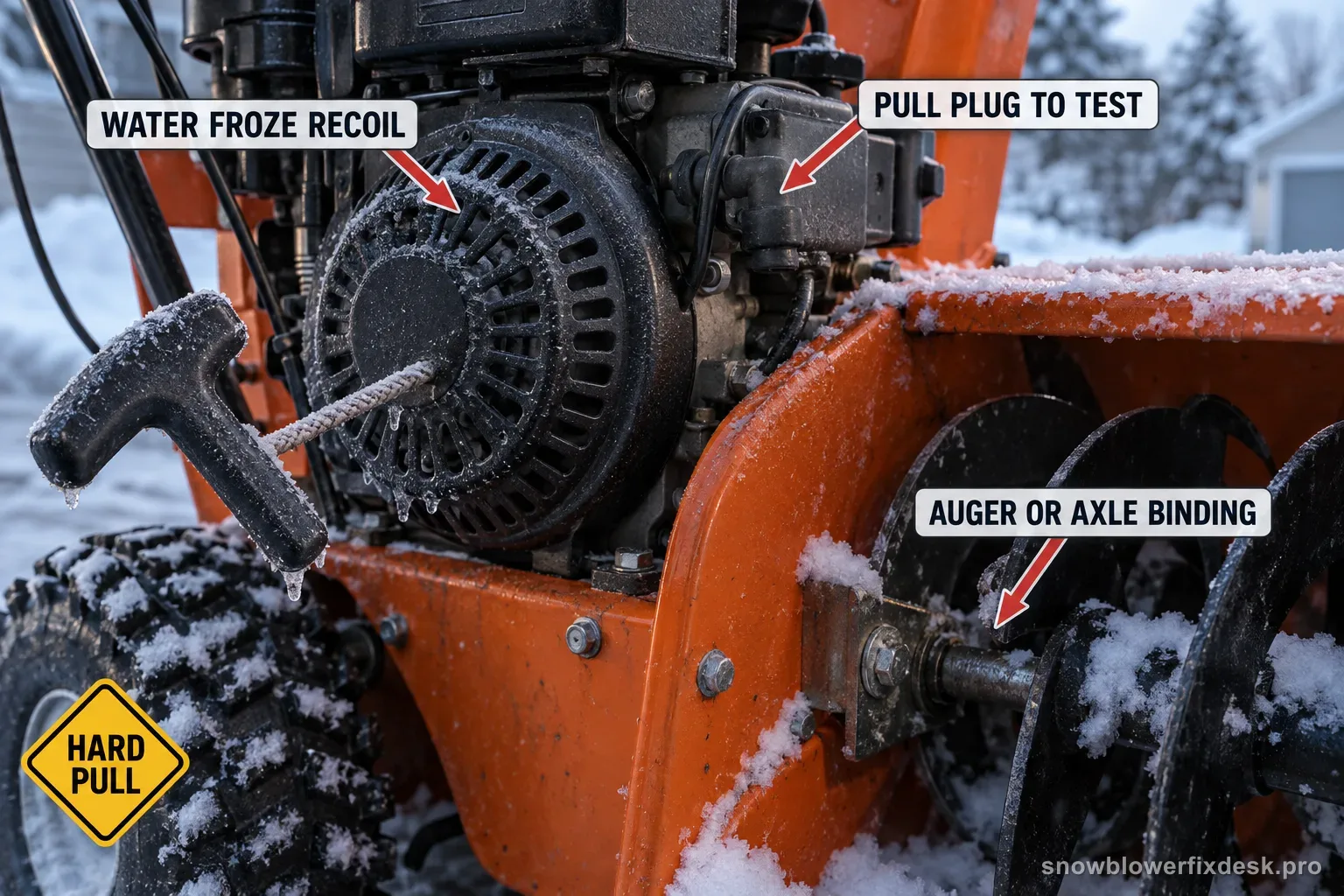

Husqvarna lists a frozen starter rope handle and rope interference with cables/hoses as the current manual’s hard-pull branches.
Do not wrap the starter rope around your hand or yank against a hard stop. Keep the machine off, stable and clear of the auger/drive controls while checking the recoil path.
Diagnostic sequence
Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.
Confirm current SKU
Why this check: This procedure is tied to the current ST 224 manual.
What to do: Match 970528602 before using the current frozen-recoil guidance.
Freeze-up history
Why this check: The manual specifically lists a frozen starter rope handle.
What to do: If the symptom appeared after wet snow/refreeze, use the documented gentle pull/release approach or electric starter rather than high-force yanking.
Rope path around cables/hoses
Why this check: Husqvarna lists starter-rope interference with components as the other hard-pull cause.
What to do: With the engine off, make sure the rope is not rubbing or trapped against cables/hoses; do not reroute components randomly.
Stop at a true mechanical hard stop
Why this check: A rope that will not move at all can be more than normal freeze-up.
What to do: Do not apply tools or extra leverage. If thawing/path correction does not restore normal travel, escalate to service.
Use the electric starter only as a controlled comparison
Why this check: Husqvarna support says a frozen recoil can be worked gently and the electric starter can be used if the engine still does not start.
What to do: After removing ice and checking that the rope is not interfering with wires or hoses, use the electric starter only if the normal procedure allows it. A successful electric start does not justify continuing to yank a mechanically hard recoil.
How to read this symptom on this model
The current ST 224 manual narrows a hard starter-rope handle to two owner-visible troubleshooting branches: a frozen starter and rope interference with other components. That makes this a good example of why force is bad diagnostics. A rope that becomes normal after controlled thawing did not need a new engine; a rope rubbing a cable or hose needs its path corrected rather than stronger pulling.
Husqvarna gives a specific frozen-recoil technique during starting: slowly pull out as much rope as possible, release the starter-rope handle, and repeat if needed or use the electric starter. The manual also cautions against letting the recoil handle snap back; return it slowly. Neither instruction supports jerking the rope against a hard stop.
The timing of the symptom matters. A rope that was normal during the last use but becomes stiff the next cold morning after wet snow strongly supports freeze-up. Husqvarna’s after-use freeze-prevention routine removes snow and ice and exercises the recoil on machines without electric start. That context makes overnight freeze-up a more credible first branch than an immediate “seized engine” conclusion.
Interference has a different pattern. The troubleshooting table says the starter rope should not touch any cables or hoses. Watch the complete visible rope path while it is pulled gently with the machine stable. If the rope rubs, catches or changes direction around another component, correct the interference using the proper routing rather than moving cables randomly or tying them out of the way.
A true mechanical hard stop after the machine is thawed and the rope path is clear is outside the two simple owner branches. Do not use pliers on the handle, wrap the rope around a hand, add an extension or pull with body weight. At that point the absence of a safe operator-level explanation is itself diagnostic evidence and the correct boundary is service.
Do not keep yanking a rope that suddenly became hard after wet snow or an impact. First make sure the auger/impeller path is not frozen or mechanically interfering with the engine through the drive system. With the engine safely disabled, clear external ice and confirm the attachment controls are released. If the rope becomes normal after thawing, freeze-up history is meaningful; if the hard stop repeats at the same crank position, stop forcing it and move to service.
A rope that pulls normally with one operating condition changed can help localize the load, but do not remove guards or bypass safety controls for a powered comparison. Record whether the engine can be rotated at all, whether the stiffness appeared immediately after an object strike, and whether temperature/thawing changes it. Persistent resistance after external freeze and attachment interference are ruled out may indicate an internal engine or starter mechanism issue that is not safe to diagnose by increasing pull force.
The manual gives two owner-level causes here, and they should stay separate: a frozen recoil and a rope that interferes with cables or hoses. After thawing, pull only with normal force and watch the visible rope path. If the pull becomes smooth once ice is gone, focus on the after-use freeze-prevention routine. If the rope still rubs or catches at the same point, correct only the documented routing relationship. A hard mechanical stop on a thawed machine with a clear rope path is beyond these two simple branches and is a reason to stop before the rope or starter housing is damaged.
Before you order parts
Do not order a recoil assembly until the machine has thawed and the rope path is visibly free of cable/hose interference. If the machine has electric start and the manual start conditions are otherwise correct, the electric starter can help separate a frozen recoil problem from a broader engine no-start complaint without shock-loading the rope.
Inspect the recoil handle, visible rope and routing for fraying, abrasion or a point where the rope touches another component. A damaged rope is a different parts decision from a frozen mechanism. Do not spray lubricant into the recoil housing as an improvised thawing method unless the matched service information specifically calls for it; moisture and contamination can create a new problem.
If normal travel returns after thawing, no recoil part has been proven bad. Focus on freeze prevention after use: remove loose snow and ice, clear the chute base and follow the manual’s cold-weather routine. Replacing the recoil because it froze once does not address the water that caused the freeze.
Back to the exact model hub →Retest without creating a second problem
With the machine stable and all drive/auger controls disengaged, pull the recoil through a normal stroke only after the freeze or interference condition is corrected. Let the handle return slowly instead of snapping back. The pull should be smooth enough that you do not need an abnormal amount of force.
If the rope now moves normally, perform the standard start sequence and note whether the recoil remains free after the engine starts and stops. If travel becomes hard again only after the machine sits in freezing conditions, treat that as repeated freeze-up evidence and improve the after-use drying/prevention routine.
If travel is still abnormal on a thawed machine with a clear rope path, stop rather than repeating high-force attempts. Document whether the rope moves a short distance and stops, does not move at all, or rubs a component. That information is more useful for service than a recoil assembly damaged by repeated yanking.
Model-specific notes
- The manual’s freeze-up procedure is gentle and repeatable; it does not call for pulling harder until something releases.
- After use, Husqvarna instructs owners to remove snow/ice and exercise the starter to reduce freeze-up risk.
Questions people get wrong on this model
Can I pull much harder if the rope is frozen?
No. Husqvarna describes slowly pulling out as much rope as possible and releasing it, or using electric start—not shock-loading the recoil. If the machine has electric start and the manual start conditions are otherwise correct, the electric starter can help separate a frozen recoil problem from a broader engine no-start complaint without shock-loading the rope.
Does a hard recoil prove the engine is seized?
No. The current manual lists freeze-up and rope interference before a deeper mechanical fault. Thaw the machine and confirm the rope is not rubbing a wire or hose; if a true hard stop remains, stop pulling and move to service rather than trying to force the recoil free.
What should I do if the recoil is still hard after the machine thaws?
Check that the rope is not contacting wires or hoses, which Husqvarna lists as another owner-visible cause. If the rope path is clear and there is still a true mechanical hard stop, stop pulling harder and move to service. If travel is still abnormal on a thawed machine with a clear rope path, stop rather than repeating high-force attempts.
