Ariens Deluxe 24 921045 Pulls or Is Hard to Turn: Auto-Turn Checks
Separate tire/skid setup and traction adjustment from an actual Auto-Turn differential problem.
Applies to Deluxe 24 legacy (921024 / 921045)
Identifiers: 921024 · 921045 · Deluxe 24
Guide scope: Use this Auto-Turn path only for Ariens Deluxe 24 legacy model 921045 after matching its serial and operator/service manual. Model 921024 is present in the legacy family hub but is not assumed to share the same Auto-Turn setup or adjustment details.
Legacy coverage uses Ariens manuals 04855000D, 05135600C and 09365530 only where the exact model/serial range matches.
Do not condemn Auto-Turn because the machine pulls on one surface. First verify tire pressure, skid-shoe setup and that the traction system is not dragging.
Perform wheel/underbody inspection only with engine off, key removed and machine securely supported.
Diagnostic sequence
Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.
Tire pressure side-to-side
Why this check: Unequal tire circumference can make a two-stage unit track to one side.
What to do: Set both tires to the pressure printed on their sidewalls; do not exceed it.
Skid shoes and scraper
Why this check: Unequal skid height or a twisted scraper can create steering resistance.
What to do: Place the unit on a flat surface and compare both sides before changing differential parts.
Traction clutch drag
Why this check: A traction system that does not fully release can feel like steering lock.
What to do: Verify the wheels stop quickly when the traction lever is released and inspect cable adjustment.
Auto-Turn service
Why this check: Once setup and clutch drag are ruled out, internal differential service becomes more plausible.
What to do: Use the service manual for the exact serial range or an Ariens dealer.
Retest steering only after setup and traction checks are clean
Why this check: Auto-Turn feel cannot be judged reliably while tire/skid setup is uneven or the traction system is dragging.
What to do: Correct the external condition first, then make a brief level-surface steering test. If the pull remains with matched tire pressure, even skid setup and clean traction release, preserve that pattern for the Auto-Turn service branch.
How to read this symptom on this model
Auto-Turn complaints are easy to misdiagnose because steering feel depends on the surface under each tire as well as the differential mechanism. A legacy Deluxe 24 that pulls on an uneven driveway may not have a failed Auto-Turn unit. Unequal tire pressure, skid-shoe height, scraper contact or traction-control drag can make the housing resist turning or make one side feel heavier than the other.
Model identity matters here. Ariens service manual 09365530 covers model 921045 only for the listed 180000–199999 serial range, while other Deluxe 24 generations use different manuals. The 921045 specification confirms Disc-O-Matic traction, Auto-Turn steering and tire pressure based on the tire sidewall. Do not borrow a current 921069 adjustment dimension merely because both machines say Deluxe 24 on the housing.
Separate steering resistance from a general tracking problem. If the machine simply veers left or right while traveling straight, start with equal tire pressure and level skid/scraper setup. If the machine rolls straight but resists one direction of turn, note whether the resistance exists with the traction lever released or appears only under power. That observation helps distinguish chassis/setup drag from a drive condition that appears only when torque is applied.
The surface test is also useful. Packed snow, ruts, a crowned driveway and one skid shoe riding a different height can make steering feel inconsistent even when the differential is working. Compare behavior on the same flat, firm section instead of comparing one turn on deep snow with the opposite turn on bare pavement. A symptom that disappears on a controlled surface deserves setup correction before internal differential work.
Traction release is a safety and diagnostic check. With the machine shut down for inspection and then tested from the operator position, the drive should not continue pulling after the traction lever is released. If the drive drags, address the clutch/cable/traction condition first; steering feel cannot be evaluated cleanly while the drive remains partially engaged.

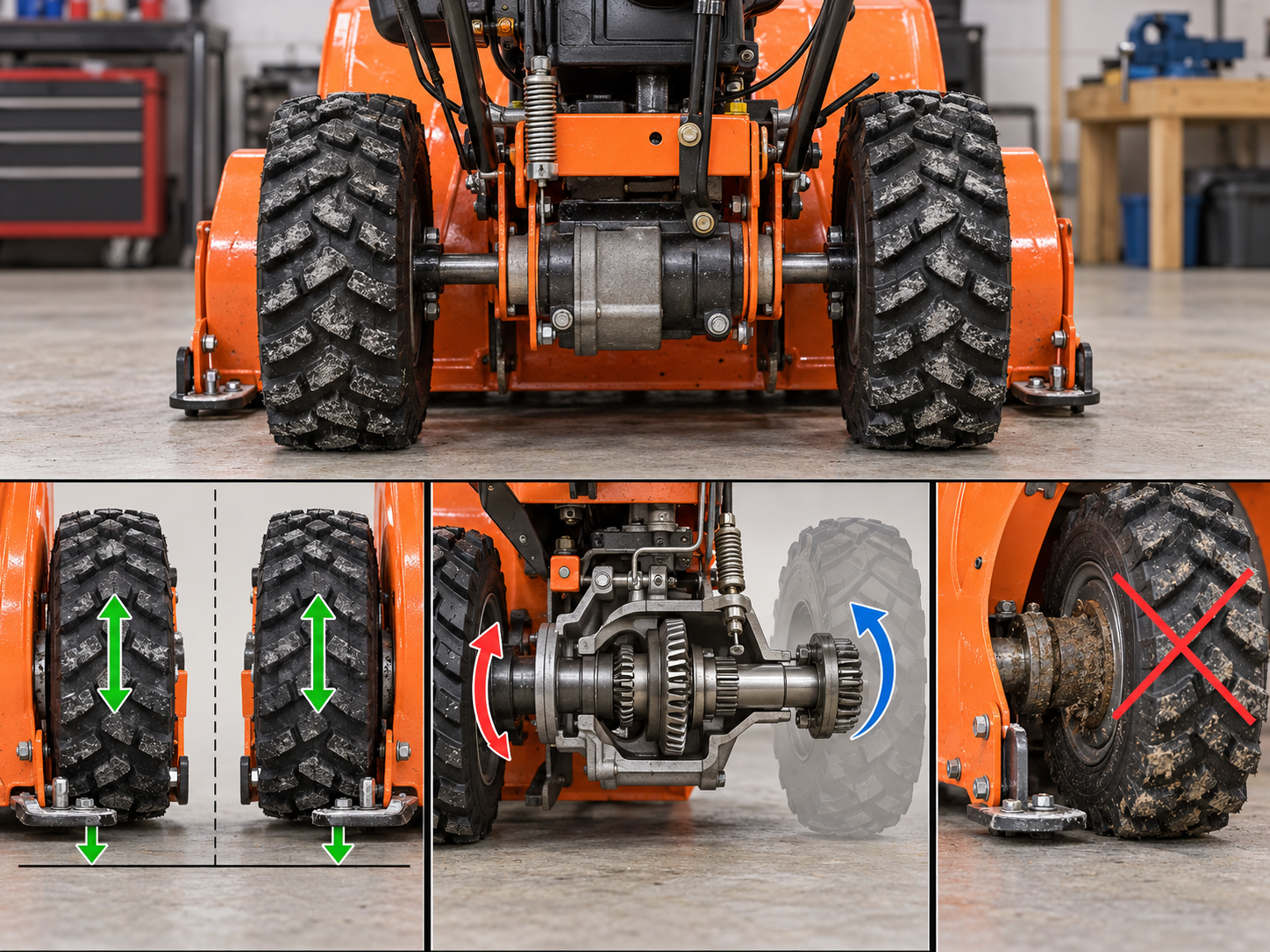

Do the first steering comparison on a hard, level surface with both tires at equal pressure. A difference in tire circumference or skid height can make the machine resist a turn even when the Auto-Turn differential itself is functioning. If the machine becomes easy to steer after pressure and skid/scraper geometry are equalized, keep the repair on the setup side. Only a repeatable hard-turn or pull that remains after those external conditions are corrected supports moving deeper into the steering/traction mechanism.
Surface history is useful on older Deluxe 24 machines. A unit that tracks normally on level pavement but fights the operator only in frozen ruts, a crowned drive or uneven gravel is giving different evidence from one that drags the same side everywhere. Preserve that distinction after the skid adjustment. It prevents a normal response to uneven surface load from being mistaken for an internal Auto-Turn failure and avoids unnecessary differential work.
Repeat the steering comparison after the skid shoes and tire pressures are equalized, not before. On older Deluxe 24 machines, uneven scraper/skid drag or different tire circumference can make Auto-Turn feel as though it is locking even when the internal steering action is normal. A unit that steers acceptably on level pavement but resists only in ruts, packed banks or crowned gravel is giving surface-load evidence. A same-side pull or hard turn that remains on flat ground after the external geometry is corrected is the more useful trigger for deeper steering/traction service. Do not intentionally misadjust one skid or tire to make the symptom appear to go away.
Before you order parts

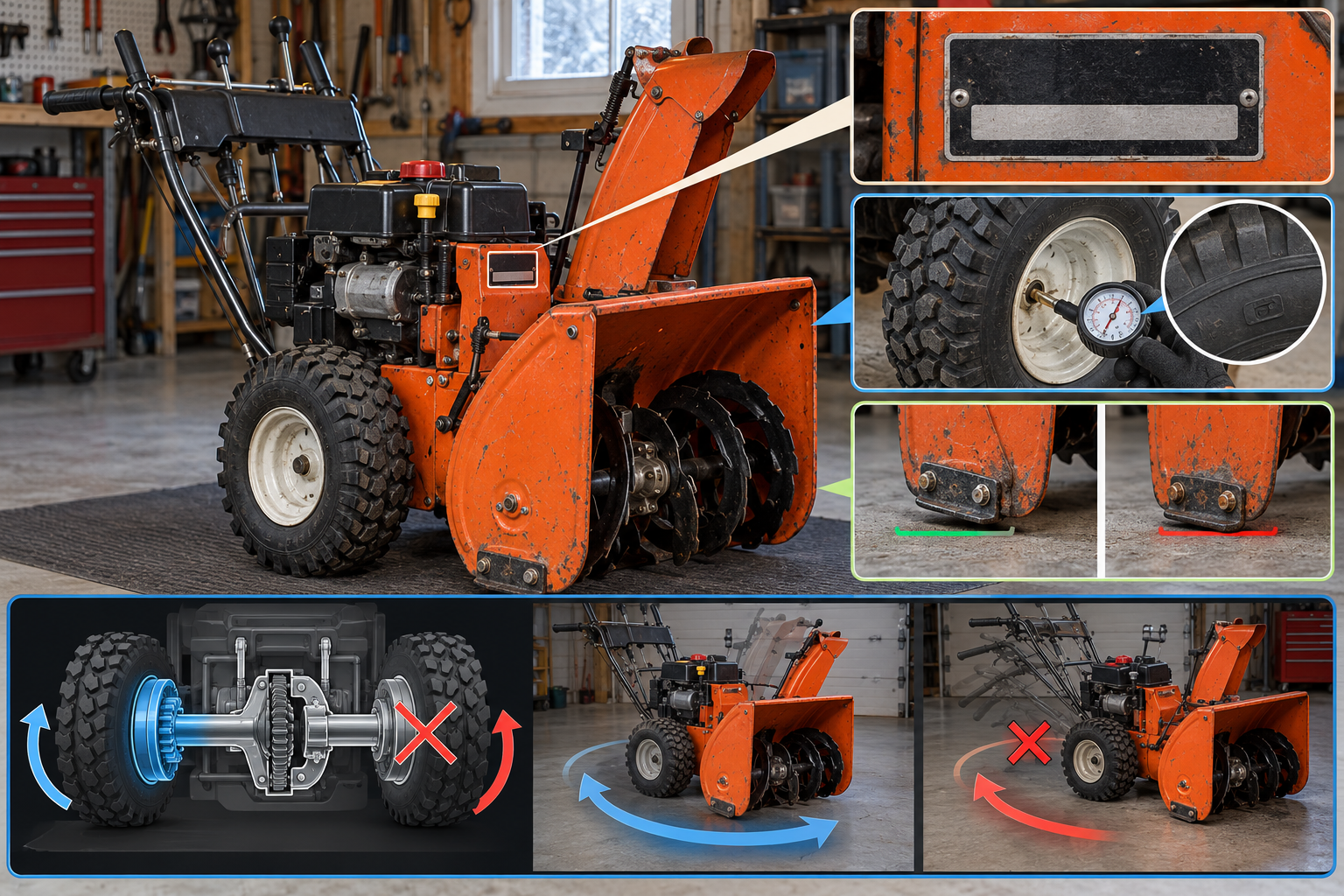

Before pricing an Auto-Turn assembly, match the exact model and serial label, equalize tire pressures to the value printed on the tire sidewalls, inspect skid-shoe setup on a level surface and verify the traction drive fully releases. If steering changes dramatically when moved from rough snow to clean pavement, record that difference. A surface-dependent symptom deserves setup checks before internal steering parts.
Look at the scraper blade and skid shoes as a pair. If one side of the housing is carrying more weight, the machine can feel as if a wheel is locked even when the axle system is not the root cause. Correct visibly uneven wear or setup using the matched operator/service manual before interpreting the remaining steering feel.
Do not compensate for pulling by randomly changing only one tire pressure, bending a skid shoe or increasing traction-cable tension. Those shortcuts can mask the symptom while creating uneven clearing height, drive drag or poor release. If pressure, skid/scraper setup and traction release are correct and the machine still binds mechanically in a repeatable direction, then the matched Auto-Turn/service procedure becomes the appropriate next step.
Back to the exact model hub →Retest without creating a second problem
After setup corrections, compare left and right turns on the same flat surface at walking speed. Use the same speed selection and similar steering input in both directions. The goal is consistent steering without traction drag, not identical feel on every snow condition.
Make a second check with the traction control released and the engine off once all movement has stopped. The wheels and chassis should not show an obvious one-sided drag caused by a misadjusted external component. If the steering complaint exists only under drive power, keep that observation with the service notes because it narrows where a technician should look.
If one direction still binds mechanically after the basic setup is equalized, stop adding adjustments and escalate using the service manual that matches the serial range. A clean retest record—tire pressure equal, skids level, traction releases, same-surface left/right comparison—prevents an expensive differential diagnosis from being based on a driveway or setup artifact.
Make sure this is the right symptom
The same search phrase can lead to a different branch on another machine. Compare the nearest model-specific examples: Ariens Deluxe 24 (921069): pulls left or right · Husqvarna ST 224 family (970528602 / 961930096): pulls to one side.
Model-specific notes
- The service manual is serial-range specific; verify the label before using dimensions.
- A surface with uneven traction can change steering feel even when Auto-Turn is functioning.
Questions people get wrong on this model
Should I lubricate inside the Auto-Turn differential?
Not from the symptom alone. After tire pressure, skid/scraper setup and full traction release are verified, a repeatable mechanical bind can justify the matched Auto-Turn service procedure. Keep the exact model and serial with that finding and do not borrow an adjustment from a different generation.
Can mismatched tire pressure really cause pulling?
Yes. Unequal rolling radius changes how a two-wheel drive machine tracks. Do not compensate for pulling by randomly changing only one tire pressure, bending a skid shoe or increasing traction-cable tension. Unequal tire circumference can make a two-stage unit track to one side. Before pricing an Auto-Turn assembly, match the exact model and serial label, equalize tire pressures to the value printed on the tire sidewalls, inspect skid-shoe setup on a level surface and verify the traction drive fully releases.
Does pulling to one side prove the Auto-Turn differential is bad?
No. Tire pressure, skid/scraper setup and traction drag can all change steering feel before an internal Auto-Turn fault is established. Correct those external conditions first and only then judge whether the differential still behaves abnormally. If pressure, skid/scraper setup and traction release are correct and the machine still binds mechanically in a repeatable direction, then the matched Auto-Turn/service procedure becomes the appropriate next step.
