Ariens Deluxe 24 921069 Pulls Left or Right: Skid and Scraper Setup First
A current-model tracking guide for a 921069 that veers or feels harder to steer on one side, using Ariens skid-shoe and scraper-blade adjustments before blaming Auto-Turn.
Applies to Deluxe 24 (921069)
Identifiers: 921069 · Deluxe 24
Engine ID: Ariens AX 252cc current specification — verify engine label for parts
Guide scope: Applies to Ariens model 921069, serial 000101+, under operator manual 30219300A.
Operator manual 30219300A identifies model 921069 serial 000101+. Current Ariens product data lists AX 252cc; keep the serial number and engine label with the machine before engine-specific parts.

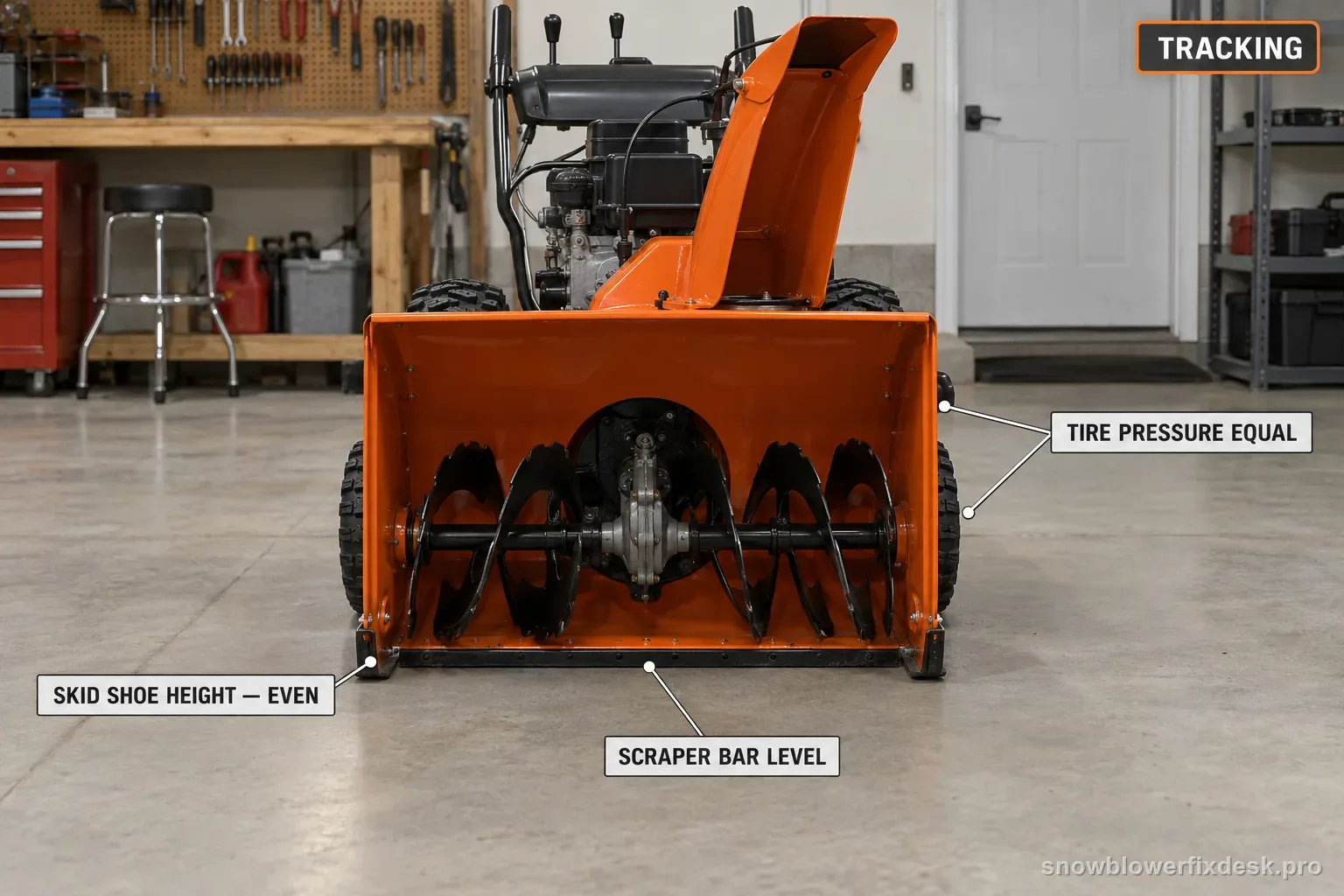

For a 921069 that pulls left or right, Ariens lists skid-shoe and scraper-blade adjustment as the direct troubleshooting branch. Level the housing on a hard flat surface and set both skids equally before treating Auto-Turn as failed.
Stop the engine, remove the key, wait for all movement and hot parts to stop/cool, and support the auger housing securely before scraper or skid adjustment. Do not work under an unsupported machine.
Diagnostic sequence
Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.
Confirm 921069 and symptom pattern
Why this check: This guide is for current model 921069, not older Deluxe 24 generations with different manuals.
What to do: Verify model 921069 / serial 000101+. Note whether the machine consistently veers on the same flat surface or only reacts to ruts, packed snow or uneven ground.
Check both tire pressures first
Why this check: Unequal tire size under load can change tracking even though the manual’s direct pull-left/right branch is skid/scraper setup.
What to do: Set both tires to the pressure printed on the tire sidewall and compare them before adjusting the housing.
Inspect scraper blade position and wear
Why this check: The scraper establishes the lower clearing edge; an uneven or over-worn blade can make one side carry more load.
What to do: On a safely supported machine, inspect the blade for uneven wear or damage. If it has been lowered previously, confirm both ends sit evenly before setting the skid shoes.
Set both skid shoes equally
Why this check: Ariens says the skid shoes control scraper-to-surface distance and directly lists skid/scraper adjustment for a machine that pulls.
What to do: Place the unit on a hard flat surface. Use equal spacers under both scraper ends and lower both skid shoes until they contact the surface, then tighten both sides evenly.
Use the surface-specific spacer guidance
Why this check: Ariens provides different clearance targets for smooth hard surfaces versus uneven or gravel surfaces.
What to do: Use two 3 mm (1/8 in) spacers for hard smooth surfaces or two 22 mm (7/8 in) spacers for uneven/gravel surfaces, then retest on the same type of surface.
How to read this symptom on this model
This symptom is unusually well defined in the 921069 operator manual: “unit pulls to the left or right” maps to skid-shoe and scraper-blade adjustment. That does not mean tire pressure or surface conditions are irrelevant, but it does mean the current Ariens troubleshooting table gives setup geometry a higher priority than replacing Auto-Turn components.
Use a repeatable surface before interpreting the pull. A crowned driveway, deep ruts or one wheel riding packed snow can create temporary steering load. If the same machine consistently drifts in the same direction on a hard flat surface after tire pressures are equal, the skid/scraper comparison becomes stronger evidence.
The scraper and skids work as one system. The scraper is the lower clearing edge; the skid shoes determine how high that edge rides above the surface. If one skid is lower, that side can carry more housing weight and increase drag. If the scraper has worn unevenly, matching the skids to the old uneven blade can preserve the pull rather than remove it.
Ariens gives two surface-specific spacer values: two 3 mm spacers for hard smooth surfaces and two 22 mm spacers for uneven/gravel surfaces. The important part is not just the number but the symmetry—use the same spacer thickness under both ends and lower both skid shoes to the same reference plane.
Do not use Auto-Turn feel as the first measurement. Auto-Turn is supposed to lock for straight-line traction and unlock while turning, so surface drag and housing setup directly affect what the operator feels at the handles. Only after the machine sits level, tires are equal and traction releases normally does a repeatable one-sided bind become meaningful evidence for deeper steering service.
Use a repeatable straight-line test after the scraper and skids are set equally. On a hard level surface, drive slowly with the auger disengaged and note whether the machine consistently drifts to the same side. If it tracks straight there but veers only in ruts, deep snow or a crowned driveway, surface loading remains a major explanation. A same-side pull that persists on level ground after equal tire pressure and symmetric skid/scraper setup is the point where deeper steering or traction service becomes reasonable.
Do not compensate by intentionally lowering one skid or changing one tire pressure to make the machine track straight. That can hide the original asymmetry and create uneven scraper wear or housing contact. After any scraper change, reset both skids using the same spacer height for the surface being cleared. The goal is a level housing and balanced drag first; steering feel should be judged only after that baseline is restored.
Make the comparison on the same level surface after both tires, scraper and skid shoes are set symmetrically. A machine that tracks straight on hard level pavement but wanders only in deep ruts, a crowned driveway or uneven packed snow is reacting to surface load, not automatically revealing an Auto-Turn fault. If it still pulls to the same side in a slow no-auger pass on level ground, preserve that repeatable result. Only then does deeper steering or traction service become more defensible than further compensating with unequal skid height or tire pressure.
Surface and tire history should stay with the test result. If the machine began pulling after one tire was serviced, a skid was moved or the scraper was adjusted, restore equal tire pressure and symmetric skid/scraper geometry before treating the steering system as failed. Then make a slow straight pass on the same level surface with the auger disengaged. A consistent same-side drift there is stronger internal steering/traction evidence than wandering only when one side is climbing a snowbank or rut. Do not compensate with unequal tire pressure or intentionally mismatched skid height; that may mask the pull while creating uneven clearing and wear.
Before you order parts
Before ordering a steering or axle component, record model 921069 / serial 000101+, equalize tire pressures to the sidewall values and inspect the scraper/skid geometry on a hard flat surface. If one skid shoe is visibly lower or one scraper end is more worn, correct that mechanical asymmetry first.
If the scraper blade is adjusted, reset the skid shoes afterward. Ariens explicitly warns that skipping the skid reset can cause premature scraper wear and auger-housing damage. A “steering fix” that leaves the cutting edge improperly supported is not a successful repair.
If the machine still pulls after setup is equal, note whether the symptom exists with traction released, only while driving, or only on one surface. That observation is more useful for the next service step than replacing the Auto-Turn mechanism from a generic steering complaint.
Back to the exact model hub →Retest without creating a second problem
Retest on the same hard flat section used for adjustment, at a slow walking pace and with the auger disengaged first. Compare straight tracking and similar left/right turns without changing tire pressure or skid settings between tests.
Then make a short clearing pass on the intended surface. On pavement, verify the scraper clears without one side digging. On gravel/uneven ground, verify the housing no longer catches while the higher spacer setting protects against picking up stones.
If the machine tracks straight on the controlled surface but pulls only in ruts or deep uneven snow, treat that as a surface/load clue rather than proof of an internal failure. If it still binds consistently on one side under repeatable conditions, preserve the setup measurements and move to model-specific service.
Make sure this is the right symptom
If your machine is showing an adjacent symptom instead, switch paths before changing parts: won't move.
The same search phrase can lead to a different branch on another machine. Compare the nearest model-specific examples: Ariens Deluxe 24 legacy (921024 / 921045): pulls or hard to turn · Husqvarna ST 224 family (970528602 / 961930096): pulls to one side.
Model-specific notes
- Ariens says to adjust the skid shoes after scraper-blade adjustment to prevent premature scraper wear and auger-housing damage.
- Auto-Turn is designed to unlock the wheels while turning; a setup-induced pull should be ruled out before internal steering service.
Questions people get wrong on this model
Does pulling to one side mean the Auto-Turn differential is bad?
Not on the evidence Ariens gives first. For the 921069 troubleshooting table, the direct correction for pulling left or right is to adjust the skid shoes and scraper blade. Ariens says to adjust the skid shoes after scraper-blade adjustment to prevent premature scraper wear and auger-housing damage.
Should both skid shoes be at exactly the same height?
They should be set equally relative to the scraper and surface. Ariens uses equal spacers at both scraper ends before lowering both skid shoes to the surface. Ariens says the skid shoes control scraper-to-surface distance and directly lists skid/scraper adjustment for a machine that pulls.
Why should I compare steering on a flat surface before blaming Auto-Turn?
A crowned or uneven driveway can make a correctly set machine drift. Verify tire pressure, skid/scraper setup and traction release on a level area first so surface slope is not mistaken for an internal steering fault. Before ordering a steering or axle component, record model 921069 / serial 000101+, equalize tire pressures to the sidewall values and inspect the scraper/skid geometry on a hard flat surface.
