Troy-Bilt Storm 2410 Shear Pin Keeps Breaking: Find the Overload Before Replacing Another
A Storm 2410-specific repeated-shear-pin diagnosis covering exact model identity, ice/debris overload, auger-shaft freedom, the correct OEM shear hardware and the stop point for gearbox or alignment service.
Applies to Storm 2410 family
Identifiers: Storm 2410 · 31BS6KN2766 · 31BS6BN2766 · 31AS6BN2723 · 31AS62N2766 · 31AS62N2711
Guide scope: Storm 2410 is a family name used across multiple 11-character Troy-Bilt model numbers. Match the Product Identification Label and its operator manual before ordering shear hardware. For example, the 31BS6KN2766 support page currently lists kit OEM-738-04124, while older Storm 2410 manual 769-06897 lists shear pin 738-04124A; that revision difference is exactly why the model/manual match remains the purchase gate.
Always match the 11-character product ID before ordering parts.
Repeated pin failure vs. one dead auger or impact vibration
Use this diagnosis for repeated shear-pin failure after replacement. If the auger simply stopped after one sheared pin, use the auger-not-turning path; if the impact created new vibration, stop and use the vibration diagnosis.

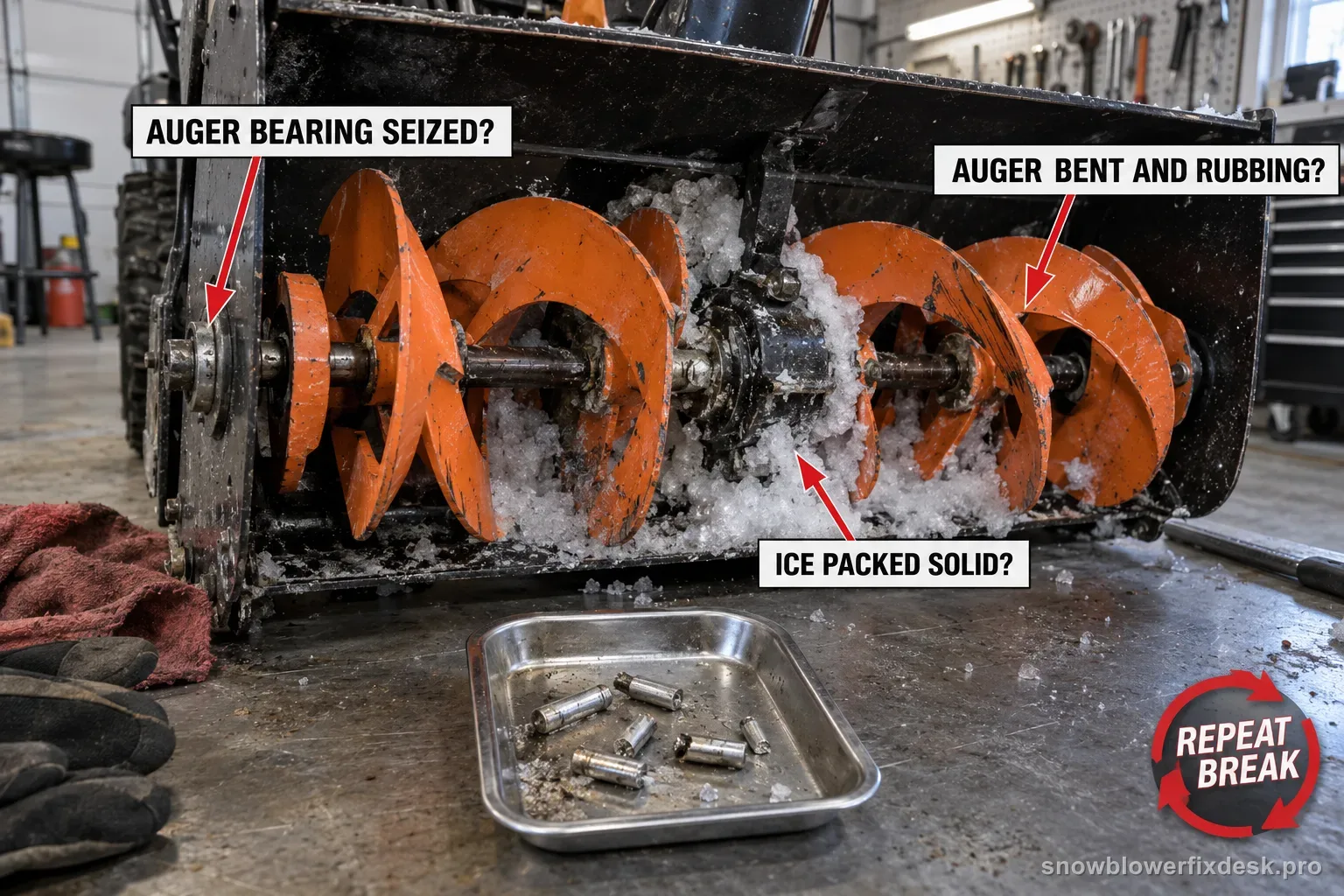

A shear pin that breaks once after hitting an object may be doing its job. Repeated breakage means the overload has not been removed, the auger is binding/frozen, the wrong hardware is installed, or deeper alignment/gearcase trouble needs inspection. Do not solve repeated failures with a stronger bolt.
Turn the engine off, remove the ignition key, wait for all moving parts to stop and disconnect the spark-plug wire before auger or shear-pin inspection. Never reach into the auger housing or chute to clear a jam.
Diagnostic sequence
Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.
Read the full 11-character Storm 2410 model number
Why this check: Troy-Bilt publishes Storm 2410 under multiple production identities with different manual sets.
What to do: Use the Product Identification Label before ordering pins or applying a manual-specific part number. Record the model and serial with the failed-pin side.
Identify what happened immediately before the pin broke
Why this check: Troy-Bilt explains that the shear pin is sacrificial protection when a foreign object binds the auger and would otherwise load the gearcase.
What to do: Think back to ice chunks, gravel, frozen newspaper, doormats, branches or a sudden housing jam. Clear the work area and inspect the bucket before installing another pin.
Make sure the auger is not still frozen or mechanically bound
Why this check: A replacement pin will fail again if the original overload remains in the auger, shaft or housing.
What to do: With the machine disabled, remove snow and debris with the clean-out tool and allow frozen parts to thaw. Do not use the new pin as a test tool against a locked auger.

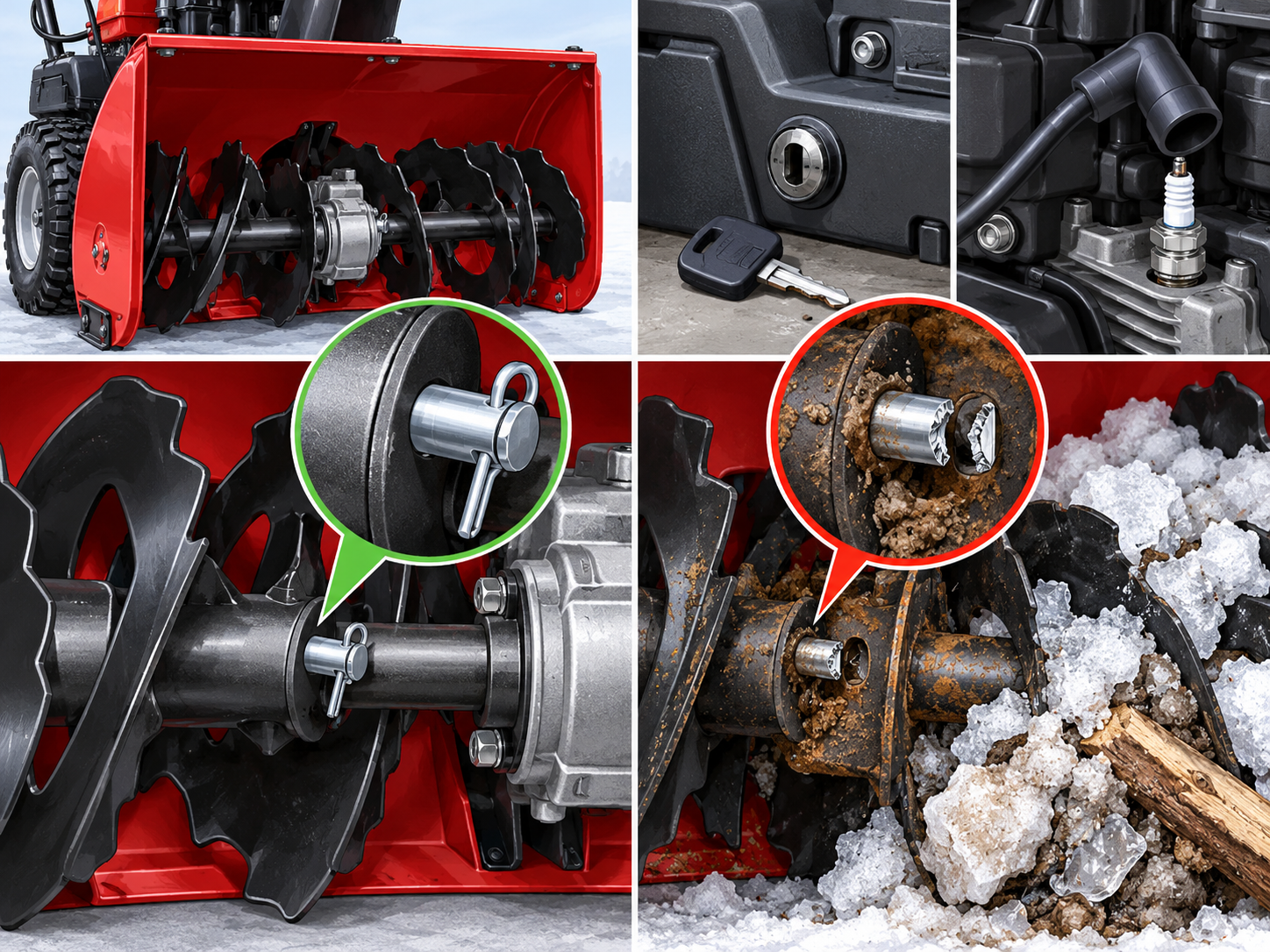

Inspect both auger sections and the shaft relationship
Why this check: Repeated failures on the same side can indicate local binding, corrosion, bent hardware or an auger that is not moving freely on the shaft where the manual expects seasonal lubrication.
What to do: Follow the matched maintenance section for auger-shaft lubrication and visual inspection. Stop if the auger is visibly bent, the shaft is damaged or alignment cannot be restored without forcing parts.
Use the exact OEM shear hardware for the matched generation
Why this check: Troy-Bilt does not publish one universal Storm 2410 part number across every model revision. The current 31BS6KN2766 support page lists kit OEM-738-04124, while operator manual 769-06897 lists 738-04124A for its Storm 2410 generation.
What to do: Confirm fit from the exact model page and install only the manufacturer-specified shear pin and retaining hardware. Do not substitute a grade-5/grade-8 bolt to prevent future breakage.
Retest unloaded before entering snow
Why this check: A correct shear pin should survive normal attachment rotation with the housing clear. Immediate unloaded failure points to unresolved binding or driveline/alignment trouble.
What to do: After reassembly and with everyone clear, run the attachment briefly with no snow. Stop immediately for abnormal vibration, scraping or another pin failure.
Use a modest snow pass to separate impact overload from persistent mechanical load
Why this check: A pin that survives unloaded operation but breaks repeatedly in ordinary snow still indicates excess load, an incorrect setup or hidden mechanical resistance.
What to do: Use a narrow pass at a reasonable travel speed. Avoid frozen windrows and hidden objects during the diagnostic retest. Record whether the failure is side-specific and load-specific.
Stop consuming pins when the correct part fails again
Why this check: Repeated correct-pin failure with a clear housing is evidence for damage or binding that owner-level replacement cannot explain safely.
What to do: Do not install a stronger fastener. Take the full model/serial, failed side, impact history and unloaded/load test result to Troy-Bilt service for auger, shaft, bearing or gearcase inspection.
How to read this symptom on this model
The first repeated-failure question is whether the pin is breaking for the reason Troy-Bilt intended. The manufacturer explains that shear pins protect the auger gearcase by failing when a foreign object binds the auger. One pin after a hidden chunk of ice or debris can therefore be evidence of protection working correctly. A second or third pin under ordinary conditions means the original overload or a new mechanical resistance still needs to be found.
Storm 2410 identity matters because the name appears on multiple 11-character model numbers and production years. Current manufacturer support pages for examples such as 31BS6KN2766 and 31AS62N2766 expose different manual sets while still listing the common two-stage shear-pin family. Record the full model and serial before buying a bulk packet based only on the marketing name.

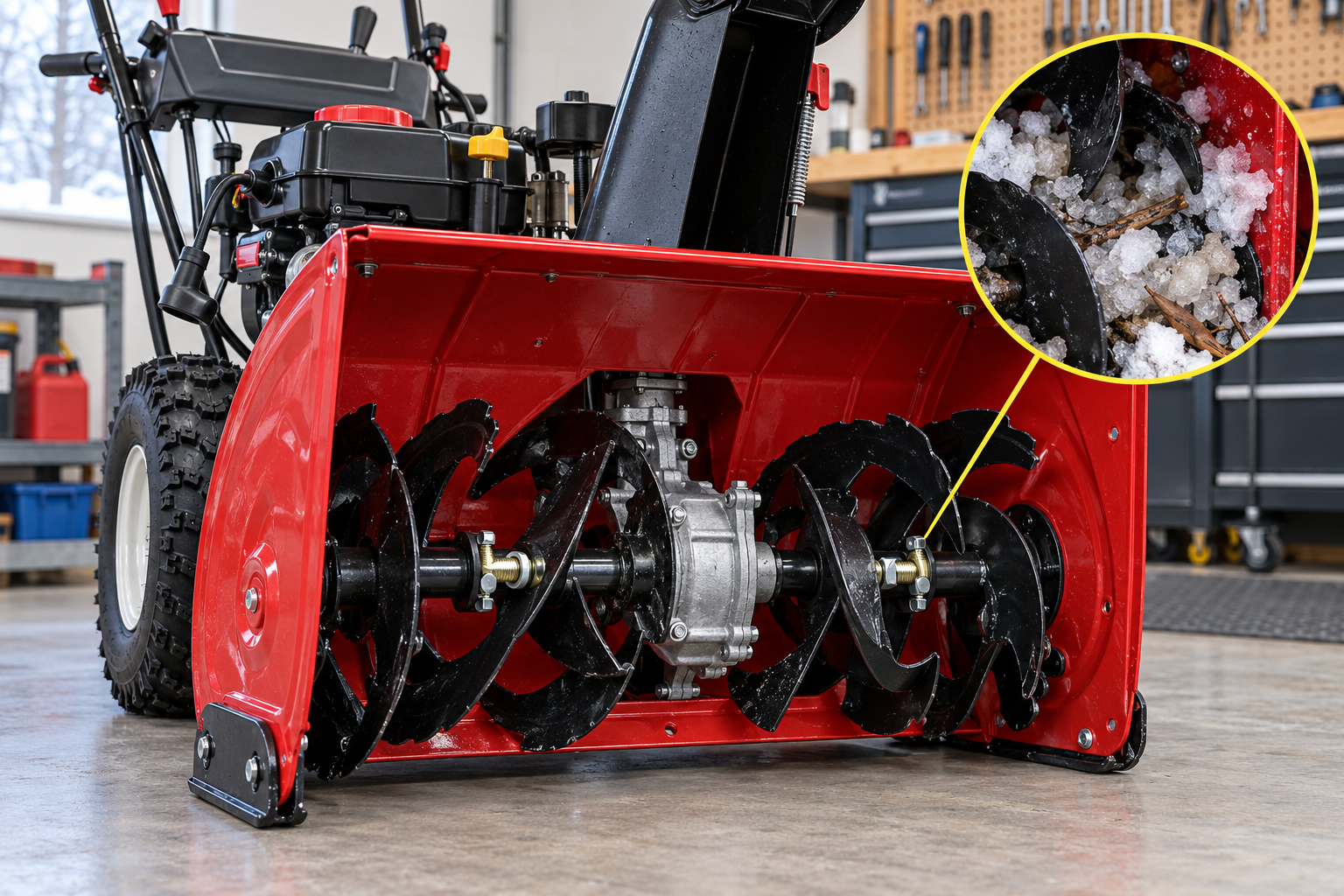

Before installing another pin, inspect the housing for the event that caused the last failure. Packed ice, gravel, a frozen newspaper, sticks, extension cords or other debris can wedge the auger hard enough to shear the protection hardware. The machine must be shut down and cleared with the proper clean-out method; using a fresh pin to “power through” the remaining obstruction defeats the diagnosis.
Repeated failure on the same auger side deserves a side-specific inspection. Look for visible bending, a hub that is not sitting normally on the shaft, corrosion or an auger section that does not move as expected during the matched maintenance inspection. Storm 2410 manuals also call for seasonal auger-shaft lubrication after removing the shear pins, so a neglected or corroded shaft can be more informative than a pile of broken replacement pins.
Hardware choice is a safety and cost-protection decision, and the exact Storm 2410 generation matters. Troy-Bilt currently lists kit OEM-738-04124 on the 31BS6KN2766 support page, while older manual 769-06897 lists shear pin 738-04124A. That is a reason to verify the 11-character model, not a reason to substitute a generic bolt. A stronger bolt may transfer the next impact into the gearbox, shaft or housing instead of preserving the intended sacrificial connection.
An unloaded attachment test separates a persistent mechanical bind from a snow-load problem. If the correct pin breaks as soon as the auger is engaged with the bucket clear, do not install another one. That result points toward alignment, bent rotating parts, bearing resistance or gearcase/shaft trouble that needs inspection before any snow enters the machine.
If the pin survives unloaded operation but fails in a normal modest pass, record the exact load, side and impact history. Too-aggressive travel into dense frozen snow can create overload, but repeated failure under ordinary snow still is not normal. Reduce the test demand once; if the same side fails again, move away from “bad luck” and toward a mechanical cause.
The symptom also has two adjacent Storm 2410 paths. If the auger is simply not turning after a single pin failure, use the auger-not-turning diagnosis. If impact was followed by new shaking or handle vibration, use the excessive-vibration guide. Repeated pin consumption should not hide a bent auger or other rotating damage.
Before you order parts
Before ordering more pins, retrieve the full 11-character model from the Troy-Bilt label and confirm the OEM shear hardware on the manufacturer parts page. Do not buy by “Storm 2410” alone.
Before ordering a gearbox, prove that the correct shear pin fails again with the housing clear and the auger free of obvious binding. Repeated correct-pin failure is evidence, but it does not identify the gearbox by itself.
Before ordering auger or shaft parts, inspect the same side that keeps breaking pins for visible bending, hub misalignment, abnormal resistance and the matched manual's lubrication condition.
Do not order stronger generic bolts as a workaround. The manufacturer intends the shear connection to fail before the gearcase when a severe obstruction is encountered.
Back to the exact model hub →Retest without creating a second problem
After the verified obstruction is removed and the correct pin is installed, do the first attachment test with no snow in the housing. Listen for scraping and watch for abnormal vibration from the operator position.
If the unloaded test passes, make a narrow pass in ordinary snow at a moderate ground speed. Avoid frozen windrows or known debris so the retest measures the machine rather than another impact event.
If the pin fails again, stop immediately and preserve the broken-pin side, model/serial and load condition. Do not change to a stronger bolt for the next trial.
If vibration appears at any point, end the shear-pin retest and switch to the vibration/impact diagnosis. A rotating assembly that has changed shape or alignment needs inspection before more load is applied.
Make sure this is the right symptom
If your machine is showing an adjacent symptom instead, switch paths before changing parts: auger not turning · excessive vibration.
The same search phrase can lead to a different branch on another machine. Compare the nearest model-specific examples: Ariens Deluxe 24 (921069): auger not turning · Ariens Deluxe 24 legacy (921024 / 921045): shear bolt keeps breaking.
Model-specific notes
- Troy-Bilt describes shear pins as intentional protection for the auger gearcase. Their purpose is not to become an unbreakable connection.
- Official Storm 2410 support pages show OEM shear-pin hardware in the parts catalog and remind owners to use the 11-character model number to confirm fit.
- Older and later Storm 2410 manuals can list different surrounding hardware or manual forms, so verify the exact machine before copying a part number from a forum or marketplace listing.
- If the auger will not turn after a single pin failure, use the auger-not-turning diagnosis. Repeated failure after a correctly replaced pin needs the overload/binding path described here.
- Abnormal vibration after an impact changes the problem. Stop and use the Storm 2410 excessive-vibration path rather than continuing to sacrifice shear pins.
Questions people get wrong on this model
Why does my Troy-Bilt Storm 2410 keep snapping shear pins?
Repeated breakage usually means the overload is still present or the auger is not moving freely. A shear pin is supposed to fail when an object binds the auger, so first clear ice/debris, inspect the affected auger section and shaft, verify the exact OEM hardware for your 11-character model, then retest unloaded before blaming the gearcase.
Can I put a stronger bolt in a Storm 2410 so the shear pin stops breaking?
No. Troy-Bilt specifically warns against replacing the designed shear hardware with an ordinary stronger bolt on the applicable Storm 2410 manuals. The pin protects the auger gearcase by failing first. A harder substitute can move the impact load into more expensive gears, shafts or housings instead of fixing the reason the machine is binding.
What shear pin does a Troy-Bilt Storm 2410 use?
It depends on the exact 11-character Storm 2410 model and manual revision. Troy-Bilt currently lists kit OEM-738-04124 on the 31BS6KN2766 support page, while older operator manual 769-06897 lists 738-04124A for its Storm 2410 generation. Use the Product Identification Label and manufacturer parts/manual page before ordering rather than assuming every 2410 uses identical hardware.
When does repeated shear-pin breakage mean I should stop DIY testing?
Stop when the correct pin breaks again with the housing clear, when the auger is bent or difficult to move through the manual inspection, when abnormal vibration appears after an impact, or when the pin fails during an unloaded attachment test. Those results justify auger-shaft, bearing, alignment or gearcase inspection rather than another pin.
