Husqvarna ST224 970528602 Electric Start Not Working: 120V Supply, Freeze-Up or Starter?

Diagnostic sequence

Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.

How to read this symptom on this model

The current North American ST224 needs a market/SKU gate before any electrical step. Husqvarna’s current product page identifies ST 224 NA SKU 970528602, and the matched manual specifies a 120V A.C. three-wire grounded electric starter. Husqvarna also publishes European ST224 manuals that specify 230V. Because the model name is shared, “I found an ST224 manual” is not enough. Verify the US SKU and current manual before connecting power or carrying voltage-specific instructions across markets.

Next separate a dead starter from an engine no-start. If pressing the button turns the engine at normal speed, the starter has already performed its mechanical job; a failure to fire belongs to the key/fuel/choke/primer/spark no-start path. If the button produces no crank, or only unreliable crank while recoil is normal, then the 120V starter supply/path remains relevant. This distinction prevents a healthy electric starter from being replaced because the engine has stale fuel or incorrect starting controls.

The current manual makes the supply requirement explicit: the starter is designed for 120V A.C. household current with a three-wire grounded plug. Confirm a suitable grounded receptacle and a sound extension cord rather than assuming voltage because another outlet in the garage works. Do not use a 230V European procedure or defeat the ground pin. If the home circuit is uncertain, use an electrician. Keep household wiring outside the snow-blower diagnosis: if the receptacle or circuit is uncertain, have an electrician verify it rather than improvising a live test.

Follow the machine’s normal control sequence before judging the starter: key, fuel setting, throttle, choke/primer when cold, then cord connection and starter button. This order matters because a starter that cranks with the controls set incorrectly can still look like a complete starting failure to the owner. Change only what the manual asks. If the starter motor itself never turns, then engine choke and fuel cannot be the explanation; if it turns strongly, those engine controls become relevant again.

Husqvarna limits electric cranking to five continuous seconds and says to wait 1 minute between tries. That is both a safety rule and a way to preserve diagnostic value. A starter that slows only after someone held the button for a long period may be overheating from the test rather than revealing the original fault. Do not create that ambiguity. Use short attempts and move to the appropriate branch when the behavior is clear.

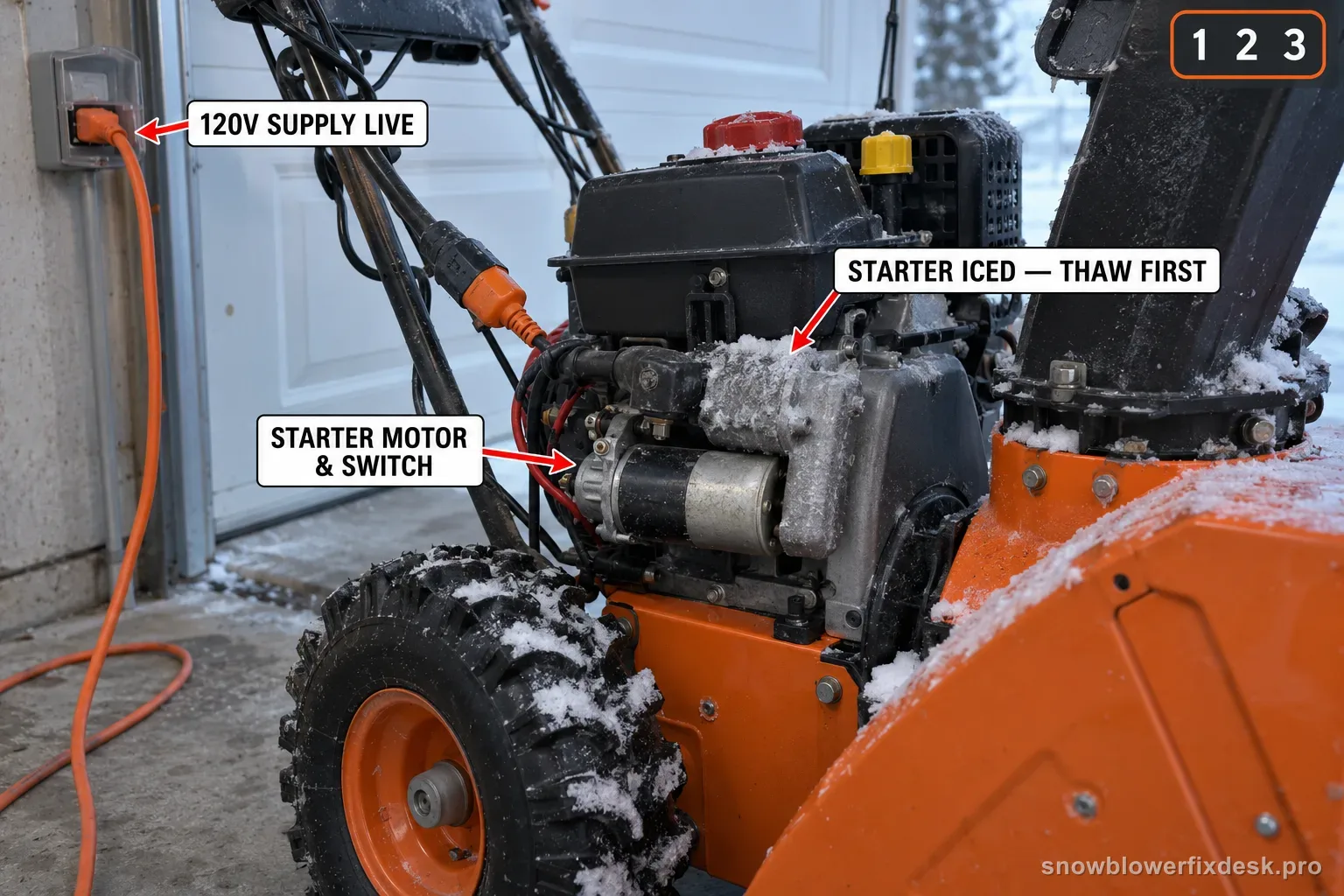

Freeze-up deserves its own branch on this machine because Husqvarna provides a post-use procedure to remove snow and loose ice and, on electric-start machines, instructs the user to connect power and push the starter button once to remove ice and water. A failure that appears only after wet-snow operation followed by a freeze is therefore different evidence from a starter that is dead in a warm dry garage. Thaw and clear the machine using the manual routine; do not chip electrical parts or pour hot water into the starter area.

Recoil behavior helps classify the failure. If recoil turns the engine normally and the engine starts, the core engine can crank and run while the electric path remains suspect. If recoil itself is hard to pull, use the starter-rope-hard-to-pull path because the current troubleshooting table includes frozen rope and interference branches. A hard recoil plus dead electric start is not clean evidence of two failed starters; it can point to a common mechanical resistance that should not be forced.

After the supply, market identity, freeze-up history and recoil comparison are known, keep internal electrical repair inside the service boundary. The operator manual does not authorize jumpering the 120V starter, bypassing grounding or opening live connections. If a verified grounded supply and good cord cannot make the starter crank while recoil proves the engine turns freely, take SKU 970528602 and the test history to Husqvarna service. That is a much stronger handoff than replacing generic “ST224 starter” parts from an older generation.

Retest without creating a second problem

After confirming current US identity and correcting any supply or freeze-up issue, use one clean electric-start attempt with the normal controls and no more than five seconds of cranking.

If the starter turns normally but the engine does not fire, unplug power and continue with the current-ST224 no-start workflow rather than repeating starter tests.

If the starter remains dead, unplug power and compare recoil. A freely cranking recoil system plus a verified grounded supply is the appropriate point to stop owner-level electrical testing.

Record SKU, manual generation, cord/outlet result, freeze-up history, whether the electric starter made any crank motion and how recoil behaved. Carry those facts to Husqvarna service.

Model-specific notes

• North American current ST224 uses 120V A.C. electric start; European ST224 documentation can use 230V. Voltage/market identity is part of the diagnosis.
• The five-second cranking limit is a starter-protection rule, not a suggestion to hold the button until the engine catches.
• Husqvarna’s post-use routine makes freeze-up a stronger model-specific branch than generic advice to replace a starter after the first cold-weather failure.
• If the starter spins the engine normally but the engine does not fire, use the existing current-SKU no-start page. A healthy crank does not prove good fuel or ignition.
• If recoil itself is hard to pull, use the separate ST224 starter-rope-hard-to-pull diagnosis; that symptom can involve rope freeze-up or interference and is not identical to an electric starter that is electrically dead.
