Husqvarna ST224 970528602 Auger Not Turning: Clog, Shear Pin, Cable or Belt?
A current-SKU ST 224 auger-drive diagnosis that separates a single sheared auger section from a clogged attachment, sluggish cable engagement and a worn or slipping auger belt.
Applies to Current ST 224 NA — 970528602
Matched SKU identifiers: 970528602 · 970 52 86-02
Engine ID: Husqvarna engine — generation dependent
Generation engine: Husqvarna 212cc / 12.9 cu.inch current engine family
Guide scope: Use this procedure only for current North American ST 224 SKU 970528602 / 970 52 86-02 with operator manual 2069-003 dated 2024-02. Husqvarna also lists other ST 224 SKUs; do not transfer current cable, shear-pin or belt procedures to a legacy machine without its exact manual.
Husqvarna support requires choosing the SKU before manuals and parts. Troubleshooting coverage here is explicitly scoped to current North American SKU 970528602; support-listed SKUs 970468501 and 961930096 remain identity-only until their exact manual revisions are selected.
No auger rotation vs. weak discharge or failure to stop
Use this page when the current-SKU auger does not rotate or engage normally. If it rotates but snow discharge is weak, switch to the discharge guide; if it keeps rotating after release, use the auger-release safety guide.
weak or no snow discharge · auger keeps spinning after control lever release
For current ST 224, first separate a blocked or single-section auger fault from a total attachment-drive fault. Husqvarna lists foreign objects, broken shear pins and belt problems under loss of snow discharge, and gives a separate auger-control-cable adjustment when engagement is sluggish.
Release auger and drive controls, turn the engine off, remove the key, wait for all moving parts to stop and disconnect the spark-plug cable before touching the auger, shear pins, cable or belt. Never put hands in the chute or auger bucket.

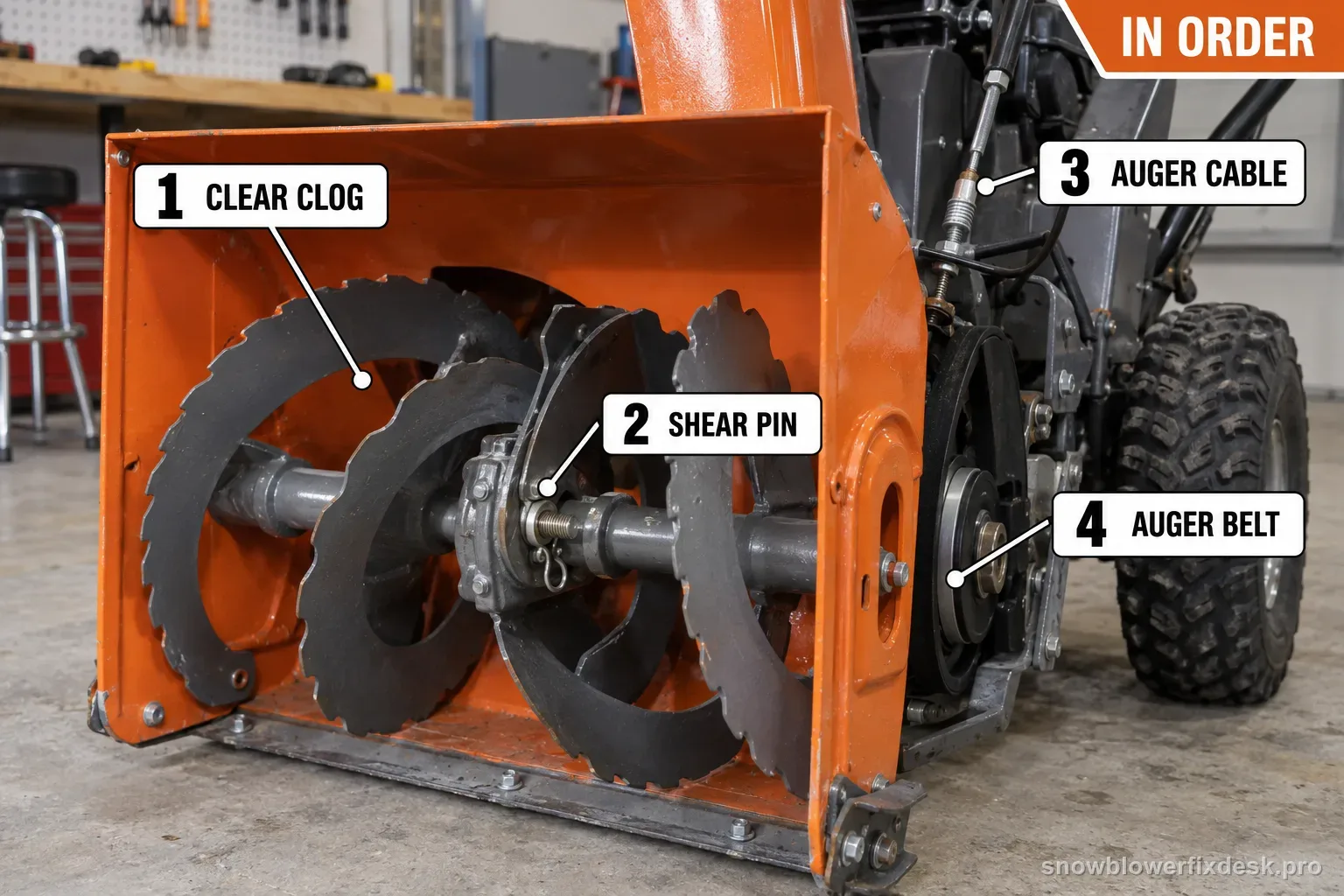

Diagnostic sequence
Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.
Confirm SKU 970528602 before using the current procedure
Why this check: Husqvarna sells several ST 224 identities and the shared model name does not prove the same manual generation.
What to do: Read the product label and verify 970528602 / 970 52 86-02 before using the cable, shear-pin and belt procedure from manual 2069-003.
Decide whether one auger section or the whole attachment is dead
Why this check: A single auger section that turns freely after an impact strongly favors a sheared auger pin, while both augers and impeller stopping together points farther upstream in the drive path.
What to do: With the machine disabled, visually compare both auger sections and OEM shear-pin positions. Do not run the engine while reaching near the housing.
Clear snow, ice and foreign objects with the clean-out tool
Why this check: The current troubleshooting table explicitly lists foreign objects clogging the augers, and Husqvarna warns against using hands inside the auger bucket.
What to do: Release both controls, wait for the augers to stop, shut the engine off and use the clean-out tool to remove packed snow or debris. Thaw a frozen attachment before retesting.
Inspect the auger shear pins
Why this check: Husqvarna says the auger shear pins are designed to break when an object enters the moving parts and specifies OEM pins for replacement.
What to do: With the key removed and spark-plug cable disconnected, align the hub and shaft holes only if a pin is actually broken, then use the original-equipment shear hardware specified for this current machine.
Check auger-control engagement if the attachment is intact but sluggish
Why this check: The 2024 manual gives a specific cable-adjustment path when impeller and auger rotation is sluggish as the auger control is engaged.
What to do: Inspect the control cable for damage and use the matched turnbuckle/jam-nut procedure. Make small documented adjustments and preserve safe disengagement rather than tightening until all slack disappears.
Inspect the auger belt if the cable cannot restore normal drive
Why this check: Husqvarna notes that current auger and traction belts are not simply tension-adjusted indefinitely; worn or slipping belts are replacement/service evidence.
What to do: Check for a belt that is worn, damaged, displaced or slipping. Belt replacement requires separating the machine and Husqvarna recommends qualified service if you are not equipped for that procedure.
Separate no-turn from weak discharge
Why this check: A machine whose auger visibly rotates but throws poorly belongs to the discharge branch, not a “auger not turning” diagnosis.
What to do: If the attachment rotates normally after the checks above, switch to the weak/no-discharge guide for chute, belt load and snow-path diagnosis instead of continuing to disturb the auger drive.
How to read this symptom on this model
On current ST 224 SKU 970528602, “auger not turning” should be split before any cover comes off. One dead auger section after an impact is not the same evidence as both augers and the impeller failing together. The current manual uses sacrificial auger and impeller shear pins, while the attachment drive also depends on the auger-control cable and belt. Observing which parts stopped narrows the branch dramatically.
The lowest-risk branch is blockage. Husqvarna's current troubleshooting table lists foreign objects clogging the augers under loss of snow discharge, and the maintenance section gives a strict clean-out sequence: release auger and drive controls, wait for motion to stop, shut the product off and use a long clean-out tool. If the attachment was frozen or packed with snow, restore free movement before using a replacement part as a diagnostic experiment.
A sheared auger pin is a particularly strong explanation when one side becomes free after striking a hard object. The manual states that these pins protect the product and break when an object enters the moving parts. It also tells the owner to use only original-equipment shear pins, align the auger hub with the shaft and install the specified current-family shear hardware after the machine is disabled.
If both auger sections remain mechanically connected but engagement is slow or weak, move to the control-cable branch. The 2024 manual says auger-control-cable adjustment can be needed when impeller and auger rotation is sluggish during engagement or after an auger-belt replacement. That is a much narrower condition than “auger does not turn,” so preserve whether the attachment is completely dead, delayed or merely weak.
Cable adjustment has to preserve disengagement. The same current ST 224 platform also has a separate safety problem for auger rotation that does not stop after release. If the owner keeps tightening the cable until the attachment finally drives, a no-turn fault can be traded for a stuck-engagement fault. Make small changes through the turnbuckle procedure and recheck both engagement and release after each change.
The belt branch begins when the current attachment drive is intact mechanically but still slips, has a visibly worn belt or has a belt displaced from its pulley. The 2024 manual notes that the auger and traction belts are not endlessly “adjustable” wear items; damaged or slipping belts move toward replacement, and the separation procedure is substantial enough that Husqvarna recommends qualified service when appropriate.
Do not confuse an attachment that rotates with a machine that does not throw. Husqvarna's troubleshooting row combines loss/slowing of discharge with belt slip, chute blockage, foreign objects and shear pins, so the owner has to observe motion directly. If the augers and impeller rotate normally but snow does not leave the chute, switch to the weak/no-discharge diagnosis.
Finally, preserve SKU identity. Husqvarna support still exposes multiple ST 224 SKUs, while this page is limited to 970528602 and manual 2069-003 dated 2024-02. A legacy 961930096 or support-listed 970468501 should not inherit the current cable or belt procedure only because “ST 224” appears on both housings.
Before you order parts
Before buying a belt, check whether only one auger section is free and inspect the OEM shear-pin position. A broken sacrificial pin is cheaper and more specific evidence than a whole-drive diagnosis.
Before buying shear pins, clear the original jam and verify the auger is not still frozen or bound. A new pin that immediately meets the same obstruction will simply repeat the failure.
Before buying a control cable, distinguish complete no-drive from sluggish engagement. The current manual reserves the cable adjustment for sluggish engagement/after belt replacement; physical damage to the cable is a different finding.
Before opening the machine for belt replacement, confirm current SKU 970528602 and document whether the belt is worn, off-pulley or slipping. That evidence justifies the deeper service step.
Back to the exact model hub →Retest without creating a second problem
After clearing a blockage or replacing a verified shear pin, reassemble the machine and do a brief no-load attachment test from the operator position. Confirm both auger sections and the impeller respond together.
If cable adjustment was made, test both directions of control behavior: prompt engagement when commanded and prompt disengagement when released. Do not accept strong engagement with a new release fault.
If the attachment works unloaded, use a modest snow pass. A belt that only slips under load or a pin that fails again after an ordinary pass provides different evidence from a completely dead no-load attachment.
Stop the test for renewed binding, repeated shear-pin failure, abnormal vibration or a belt that will not stay aligned. Those results belong to deeper mechanical service rather than another round of control adjustment.
Make sure this is the right symptom
If your machine is showing an adjacent symptom instead, switch paths before changing parts: excessive vibration or handle movement.
The same search phrase can lead to a different branch on another machine. Compare the nearest model-specific examples: Ariens Deluxe 24 (921069): auger not turning · Ariens Deluxe 24 legacy (921024 / 921045): shear bolt keeps breaking.
Model-specific notes
- The current 2069-003 manual says auger shear pins protect the product from damage and must be replaced with original-equipment shear pins.
- A broken auger pin can leave one auger section free while the other side or impeller still appears connected; that clue is more specific than “the machine does not throw.”
- Husqvarna treats sluggish engagement as a cable-adjustment condition but treats a worn or slipping belt as a belt-service condition. Do not use endless cable tightening to compensate for belt wear.
- The current manual instructs the operator to wait for auger movement to stop and use a clean-out tool rather than hands when clearing the discharge path.
- If SKU 970468501 or legacy 961930096 is on the label, return to the ST 224 model hub and resolve that machine's manual before using current-SKU settings.
Questions people get wrong on this model
Why is only one auger on my Husqvarna ST224 not turning?
A single dead or free-spinning auger section after hitting ice or debris strongly points to a broken shear pin at that auger hub. Husqvarna designs the pins to break to protect the machine. Shut the engine off, remove the key, disconnect the spark-plug cable and verify the OEM pin before opening the belt system.
Can packed snow make the ST224 auger look broken?
Yes. The current troubleshooting table lists foreign objects clogging the augers, and packed snow or ice can stop the attachment mechanically. Use the clean-out tool only after both controls are released, the engine is off and all motion has stopped. If the attachment remains locked after thawing and clearing, continue to shear-pin and drive checks.
Should I keep tightening the ST224 auger cable if the blades barely move?
No. The current manual allows cable adjustment when auger/impeller engagement is sluggish, but a worn or slipping belt is a separate branch. Make only the documented turnbuckle adjustment, then retest engagement and release. If the cable reaches a reasonable setting and the drive still slips, inspect the auger belt instead of shortening the cable indefinitely.
Is “auger not turning” the same as “ST224 not throwing snow”?
Not necessarily. If the auger and impeller visibly rotate but snow leaves the chute weakly or not at all, use the weak/no-discharge diagnosis because the mechanical snow path, belt under load or chute can be the issue. Use this page when the auger itself fails to rotate or engage normally.
