Cub Cadet 2X 24 31AM5HVRB10 Auger Won’t Engage: Cable, Belt or Shear Pin?

Diagnostic sequence

Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.

How to read this symptom on this model

Start by preserving the exact machine identity: 31AM5HVRB10 is the current 2X 24 IntelliPOWER chassis on Cub Cadet’s product page, and that page points to the matched 31X operator manual rather than a generic “2X” procedure. That matters because the marketing name spans many years and control layouts. Record the 11-character product ID before ordering a belt, cable or shear pin, then keep this diagnosis focused on the attachment drive rather than the wheel-drive friction disc.

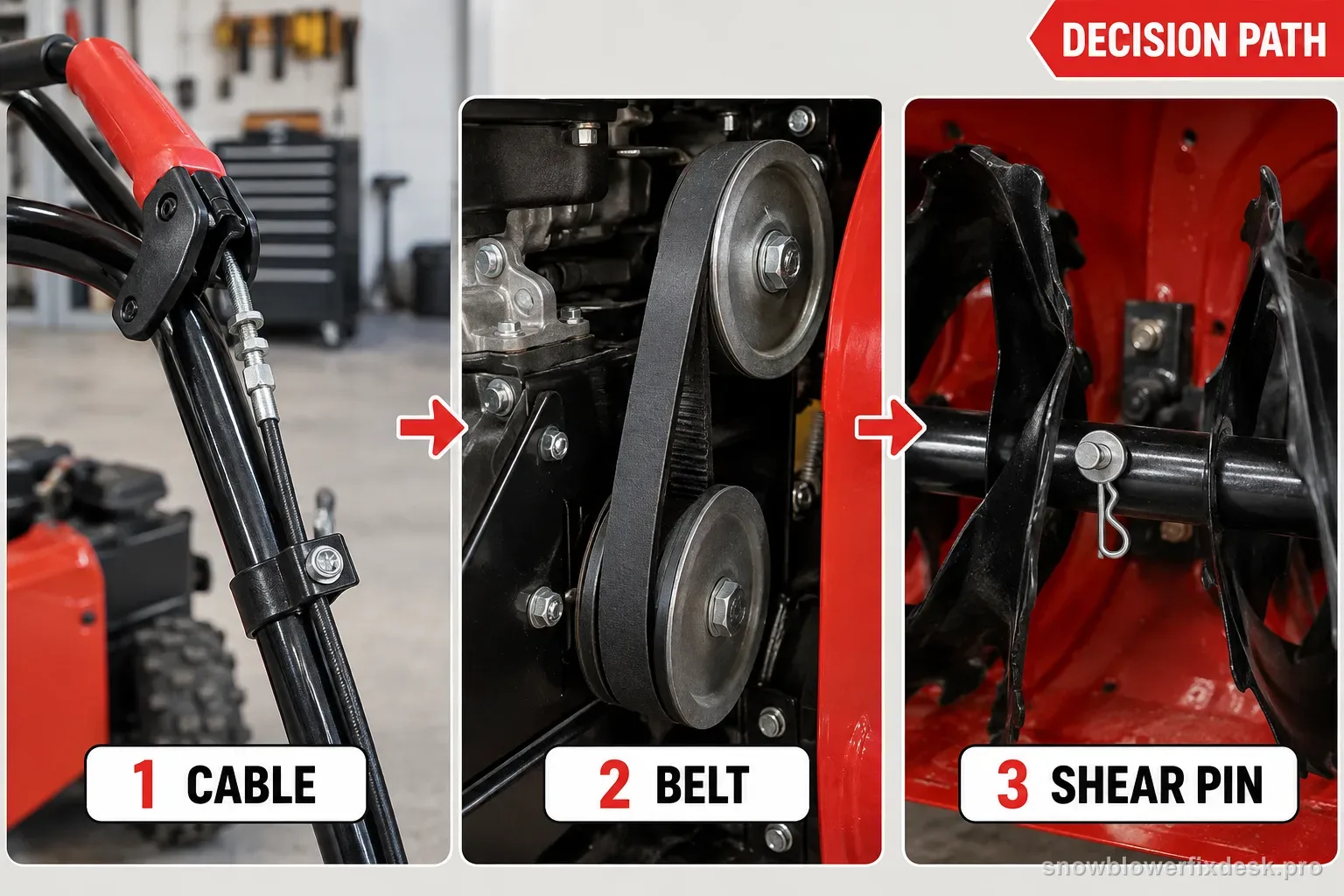

Cub Cadet’s own two-/three-stage troubleshooting order begins with control-cable adjustment, then drive-belt inspection, then auger shear pins. Use that order as a branch map, not as a reason to replace all three. A lever that has gained obvious slack over time points toward the cable branch; a control that feels normal while the complete auger/impeller system fails to transmit power makes the belt path more plausible; one auger section that stops after an impact makes a shear-pin event much more likely.

The one-section-versus-whole-system observation is especially valuable. Cub Cadet explains that each auger section is protected by a shear pin, so a fractured pin can remove drive from one or multiple auger sections while the shaft and other sections can still behave differently. That is not the same symptom as a belt or control-cable problem that affects attachment engagement more broadly. Do not collapse those two patterns into “gearbox failure.”

Before judging any drive part, rule out a physical lock. Packed snow, refrozen slush or a foreign object can keep the auger from turning and can also create the impression that a cable or belt has failed. Shut the engine off, remove the key, disconnect the spark-plug wire and wait for all movement before inspection. If the housing is frozen, thaw or clear it; do not use the control lever as a pry bar against a locked auger.

If shear hardware is broken, use the correct OEM shear pin rather than an ordinary bolt. Cub Cadet explicitly describes the shear pin as a sacrificial protection for the auger gearcase. Installing harder generic hardware can transfer the next impact into the shaft, gears or housing instead of allowing the inexpensive protective part to fail. Repeated shear-pin failure also means the overload source has not been corrected; it is not evidence that the OEM pin is “too weak.”

Cable adjustment has a safety side as well as an engagement side. Cub Cadet’s setup guidance requires the auger to stop completely when the control is released. More cable tension is therefore not automatically better. If an adjustment restores engagement but the auger continues to rotate after release, stop using the machine and correct the disengagement condition before any snow-load test.

Only after the housing is free, shear pins are intact, and control behavior is verified should belt condition become the leading service branch. Cub Cadet tells owners to inspect belts for wear such as cracking and glazing. A belt that is visibly damaged or fails to transfer drive with the other external branches ruled out is stronger evidence than simply ordering a belt because the auger did not turn once.

A single auger section that stopped after an impact points toward shear hardware, while both sections failing to turn can keep cable and belt branches open. Clear the housing first with the engine disabled, then check the shear positions before changing cable tension. If the shear hardware is intact and the auger is physically free, compare control travel and visible belt condition. That order prevents a frozen attachment from being “fixed” by over-adjusting the cable against a locked load.

The safest clue is whether attachment loss is one-sided or system-wide. One serrated auger section that no longer follows the shaft after striking an object strongly supports inspecting its shear pin. If both sides are intact and free but the entire attachment never loads when the control is engaged, cable travel and the auger belt become more relevant. Do not substitute a harder generic bolt to “test” the gearbox; the shear hardware is deliberately sacrificial. After the correct pin or drive correction, restore all guards and verify both engagement and clean disengagement from the operator position. A repair that spins the auger but will not let it stop is not complete.

Retest without creating a second problem

Reinstall every cover and restore the spark-plug connection only after the mechanical inspection is complete. Start on a clear, level outdoor surface with nobody in front of the housing. Engage the auger for several seconds from the operator position, release the control and verify that the auger/impeller comes to a complete stop.

If the no-load engagement and stop test pass, make a short narrow pass in light snow. Watch for the original pattern: one section stopping again points back toward shear-pin/binding evidence; the complete attachment fading under a modest load gives the belt/control branch more weight.

If a correct shear pin breaks again immediately or the auger binds with the housing clear, stop repeated powered testing. That result is evidence of a continuing mechanical overload and should be carried into model-specific service rather than masked with stronger hardware.

Model-specific notes

• The model’s exact product page identifies a two-stage machine with serrated steel augers.
• A shear pin is a protective fastener; replacing it with a stronger generic bolt can transfer impact damage elsewhere.
