Cub Cadet 2X 24 31AM5HVRB10 Chute Clogs or Throws Weakly

Diagnostic sequence

Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.

How to read this symptom on this model

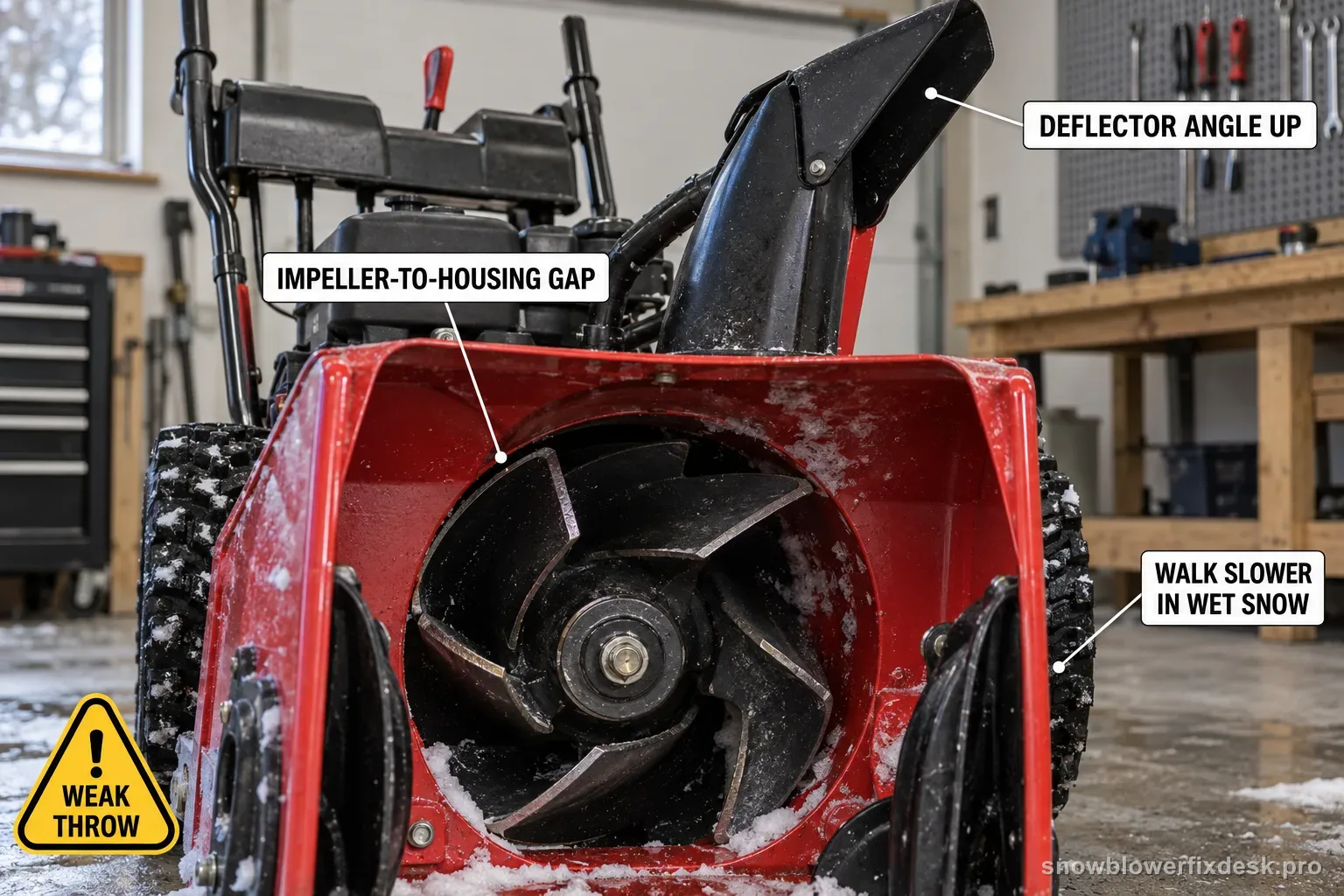

Treat “chute clogs” and “throws weakly” as related but not identical observations. A sudden stop in discharge with the chute visibly packed is a physical-flow problem first. A clear chute with one auger section no longer feeding is a shear-pin clue. A clear chute with both sections turning but the complete attachment losing drive under load points back toward cable or belt evidence. Keeping those patterns separate prevents every weak-throw complaint from becoming a belt article.

On model 31AM5HVRB10, preserve the exact product identity before parts work. Cub Cadet lists this machine as a 24-inch two-stage unit with a 12-inch auger and 12-inch impeller, so snow must move through two stages before it exits the chute. A blockage at the chute, loss of one auger section, or loss of attachment-drive speed can therefore reduce discharge for different reasons even though the operator sees the same short throw.

Clear an actual clog using Cub Cadet’s shutdown sequence and clean-out tool. Release the controls, stop the engine, remove the ignition key, wait for all movement to stop and never put a hand into the chute. Packed snow can release suddenly, and the impeller can retain mechanical tension even after the engine is stopped. A clean-out is a safety procedure, not a quick reach-in between passes.

After the path is clear, inspect whether both auger sections are still mechanically coupled. Cub Cadet explains that shear pins are designed to break under overload to protect the gearcase. If the symptom began immediately after striking a hidden object and one section no longer feeds snow, a shear-pin event is stronger evidence than a weak engine or generic “auger belt.” Use only the correct OEM shear hardware.

If both auger sections are intact and the chute is clear, return to Cub Cadet’s official attachment-drive order: cable adjustment and belt condition. A cable that has stretched can reduce engagement; a cracked or glazed belt can reduce power transfer. Those checks should be made under the matched manual with the engine safely stopped. Do not compensate for a slipping drive by over-tightening the cable until the auger fails to disengage.

Snow condition and feed rate still matter after the machine is mechanically sound. Wet, dense snow can pack more readily than dry powder, especially when the housing is fed a full-width bite faster than the impeller can evacuate it. A machine that throws normally in a narrow light pass after the chute is cleared gives different evidence from one that remains weak with a clear path under modest load.

Do not use throttle or engine assumptions to mask a blocked snow path. If the discharge collapses suddenly, clear and inspect first. Only if the attachment path is clear, both auger sections are coupled and the drive remains strong should persistent engine-load symptoms be evaluated under the matched 875-W0 engine documentation rather than a generic snow-blower carburetor guide.

On 2X 24 IntelliPOWER (31AM5HVRB10), the order between “Look for an actual discharge blockage” and “Retest the cleared chute from operator position” matters because each answers a different question. Packed wet snow or ice can reduce throw while the engine and drive systems still operate. Meanwhile, cub Cadet’s clean-out procedure includes a short powered clearing step only after the tool is refastened and the operator is back behind the handles. Preserve which check passed and which did not before moving deeper. That record is especially useful when the owner describes everything simply as “chute clogs or weak throw,” because the phrase alone does not identify the failed branch.

A clear chute with normal engine speed but weak discharge is different from a chute that repeatedly plugs in wet snow. Use a narrow pass after clearing the housing; if throw recovers, snow load remains part of the complaint. Persistent weak throw under modest load keeps the belt/auger-drive path open instead of proving an engine-power fault.

After clearing the chute with the clean-out tool, change feed rate before changing parts. The 31AM5HVRB10 has a 24-inch intake and two-stage auger/impeller system, so a packed heavy bite can overwhelm discharge even when the drive is intact. Take a narrower pass at slower travel and watch whether the stream becomes continuous. If it does, snow condition and load were part of the symptom. If the chute remains clear but one auger side is inactive, use the shear-pin/auger page; if both augers turn yet discharge stays weak in lighter snow, belt/control transfer becomes more relevant. These observations keep physical clogging, one-sided auger loss and true weak discharge from collapsing into one generic diagnosis.

Retest without creating a second problem

After the chute and housing are clear, reinstall all guards and return the clean-out tool to its mount. Run the attachment briefly with no snow from the operator position, then release the control and verify a complete stop before any load test.

Make a narrow pass in light or moderate snow. If throw distance is normal, widen the pass gradually and avoid overfeeding wet snow. If discharge stays weak even with a clear chute and modest load, stop repeating clean-outs and move to cable/belt inspection.

If one auger section fails again after correct shear hardware is installed, or if the housing binds without visible snow/debris, stop the machine and escalate the mechanical branch rather than repeatedly sacrificing pins.

Model-specific notes

• The exact model has a 24-inch intake, 12-inch auger and 12-inch impeller.
• A clog is a safety event first, not an invitation to reach into the chute after the engine stops.
