Ariens Deluxe 24 921069 Leaves Snow Behind: Scraper Blade and Skid Shoe Checks

Diagnostic sequence

Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.

How to read this symptom on this model

A uniform layer of snow left on the driveway is different from weak throwing. The 921069 can move snow through the chute normally while the scraper blade rides too high to collect the last layer. Ariens therefore gives “excessive snow is left behind” its own troubleshooting row and points to a worn or damaged scraper blade.

Check the pattern across the clearing width. A roughly even layer suggests the entire scraper is too high or worn. A deeper strip on one side suggests uneven scraper wear or unequal skid height. That second pattern also overlaps with the manual’s pull-left/right setup branch, so side-to-side geometry matters.

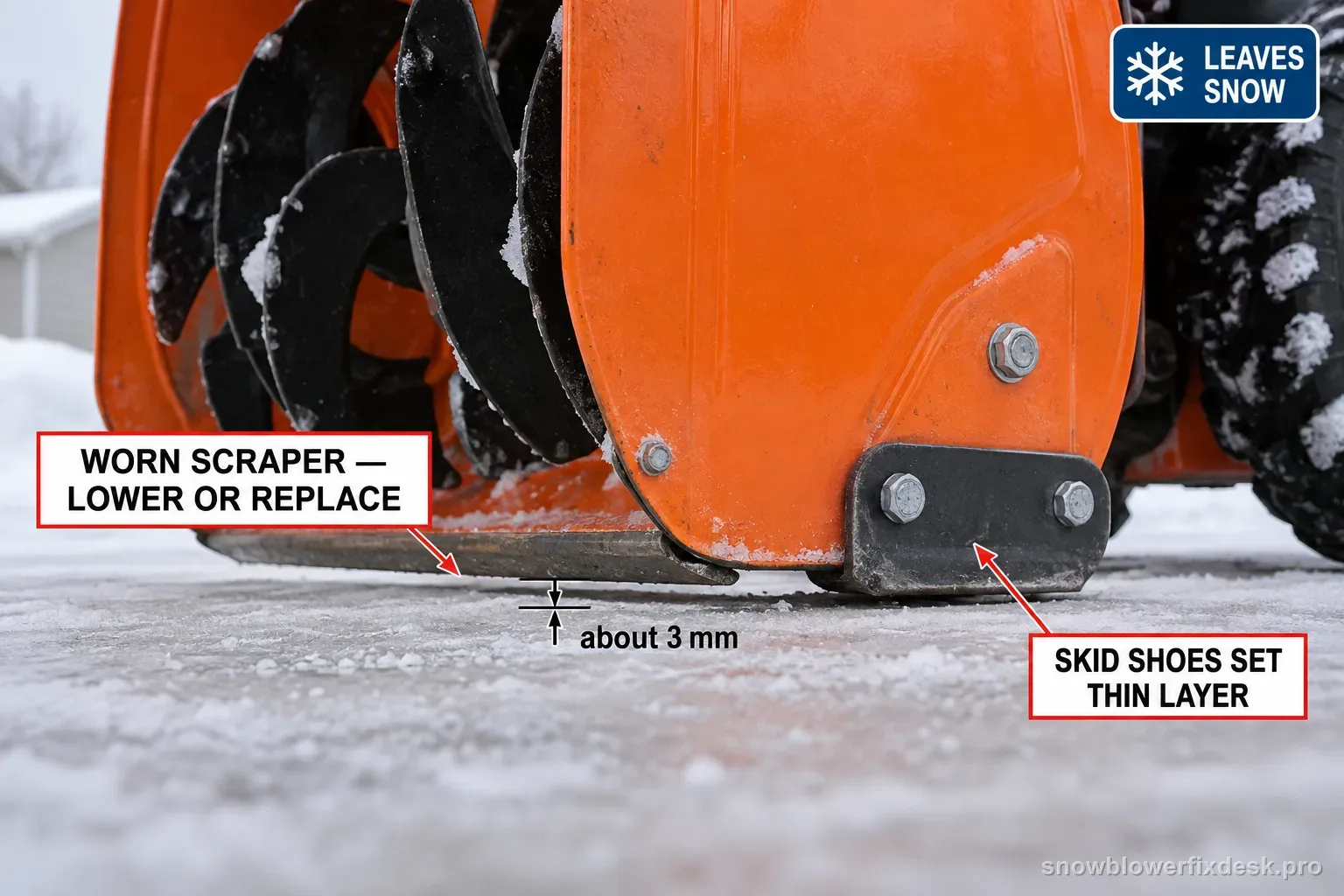

The scraper blade is adjustable as it wears. Ariens allows it to be lowered, but replacement becomes appropriate when the blade is damaged or has already been adjusted down as far as possible and still does not touch the ground or clear correctly. That creates a clear parts gate instead of replacing the blade at the first sign of wear.

Skid shoes must be reset after scraper adjustment. The manual warns that failure to do so can cause premature scraper wear and auger-housing damage. On hard smooth surfaces Ariens uses two 3 mm spacers; on uneven or gravel surfaces it uses two 22 mm spacers. The larger gravel clearance is intentional and may leave more snow than a pavement setting.

Do not chase the thinnest possible scrape on every surface. On gravel, lowering the housing too far can pick up stones and create thrown-object risk. The correct result is the manual’s surface-appropriate clearance, not bare pavement at the cost of unsafe auger-housing height.

A uniform strip left on the driveway is a clearing-edge problem only when the discharge system is otherwise doing its job. Start by watching the chute: if snow is leaving with normal force while a consistent layer remains under the housing, stay with the scraper/skid branch. If the throw itself is weak, this page is the wrong lane. That distinction keeps worn scraper evidence separate from belt, chute, or engine-power complaints that happen to leave snow behind for a different reason.

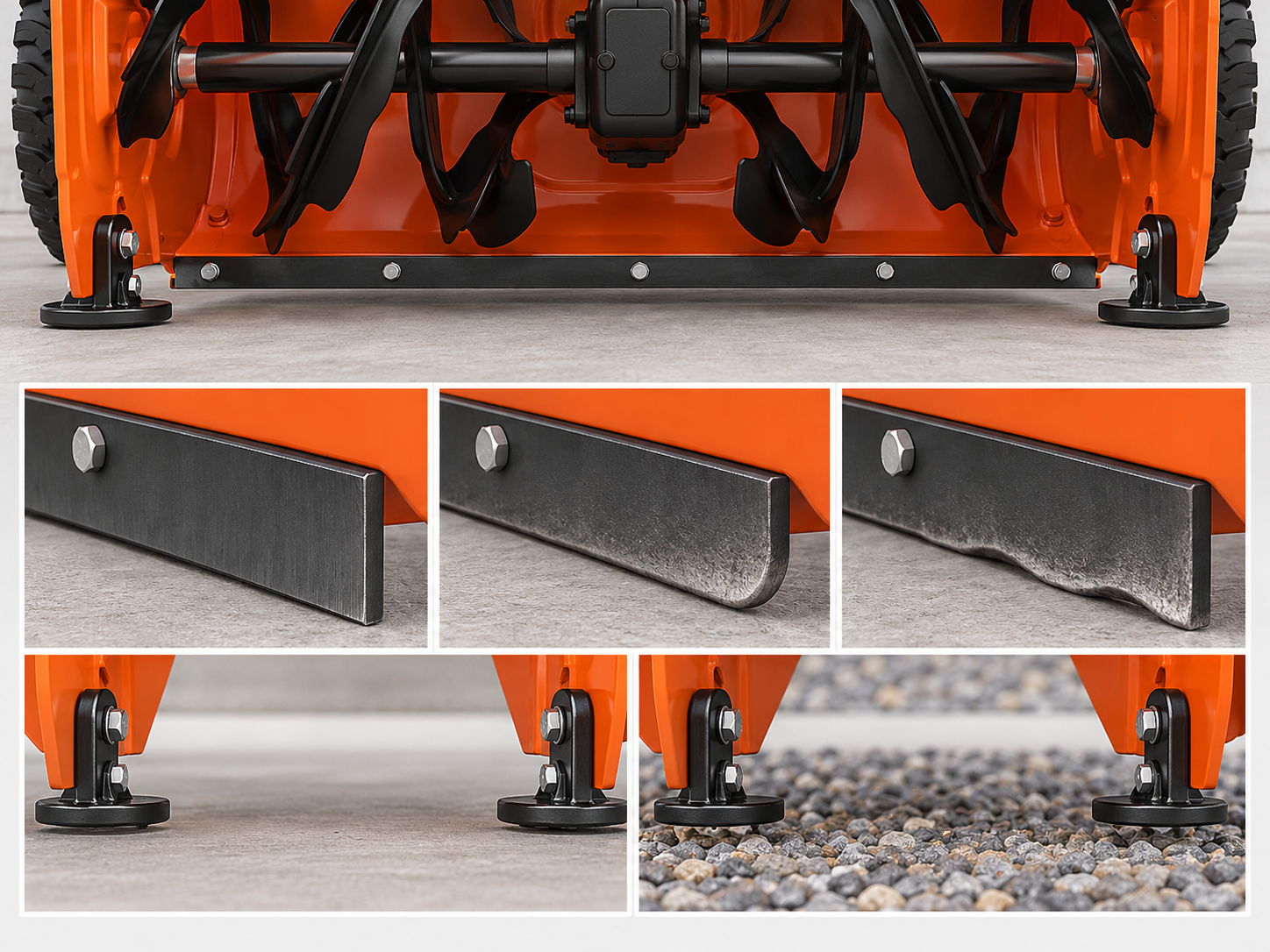

Inspect the scraper across its entire width rather than judging one corner. Ariens identifies wear or damage here as the cause of excessive snow left behind and allows the blade to be lowered as it wears. An even lowering is the repair only while useful adjustment remains; a damaged blade or one already at its adjustment limit is a replacement decision. After moving the scraper, do not retest yet—the skid shoes now need to be reset to the new clearing-edge position.

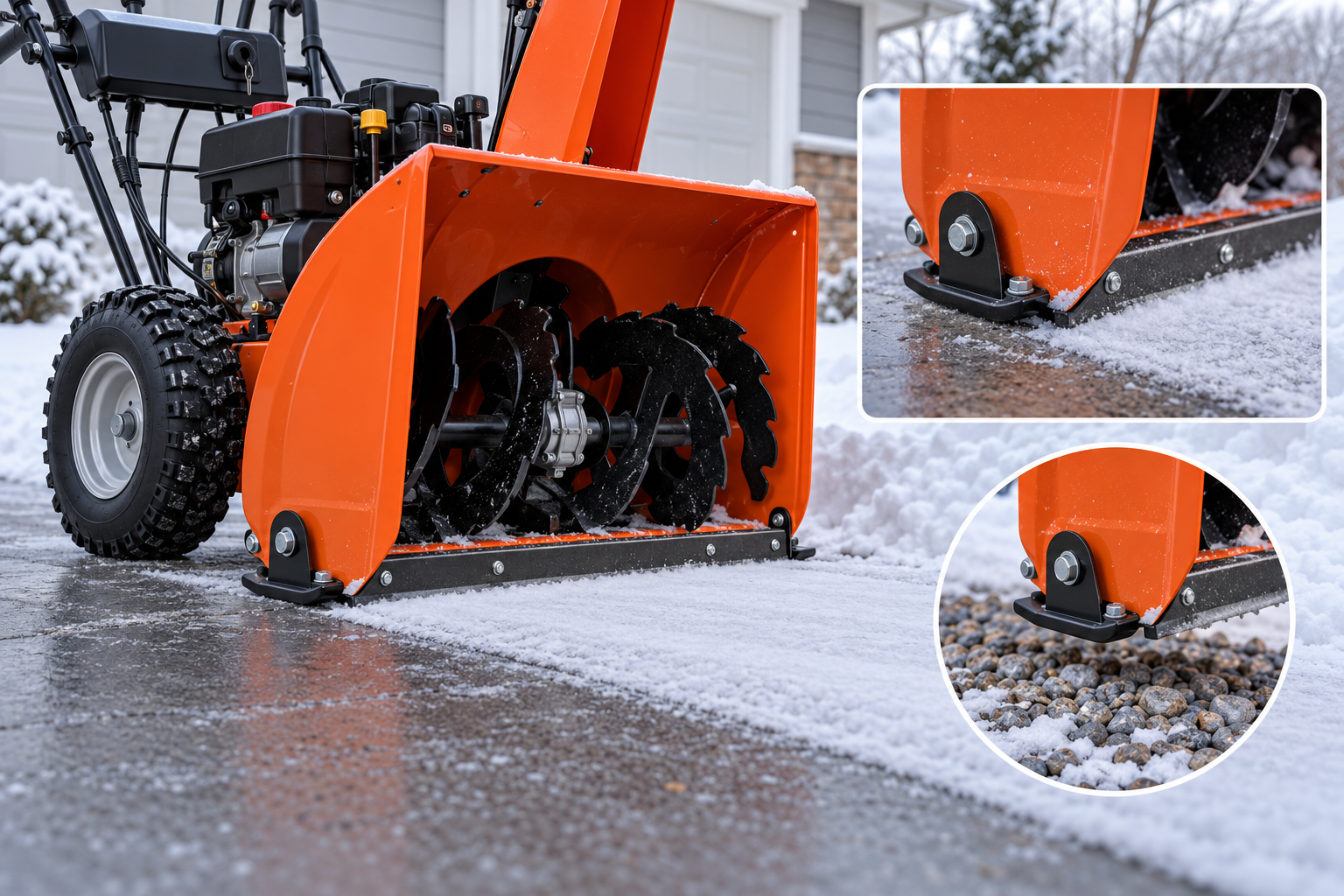

Skid setup is what prevents a scraper correction from becoming a second problem. On a hard, smooth reference surface, the 921069 manual uses 3 mm (1/8 in) spacers; for uneven or gravel surfaces it gives 22 mm (7/8 in). Set both sides equally after the scraper is positioned, then make a short pass on the surface the machine is meant to clear. The useful result is not simply “less snow”: the layer should become more even or disappear without the housing digging into the surface.

The final retest should preserve the surface setting that justified the adjustment. On pavement, confirm that the corrected scraper/skid geometry reduces the uniform residual layer without metal contact or housing drag; on gravel, accept the larger manual-specified clearance instead of chasing bare ground. If one side still leaves a deeper strip, recheck side-to-side skid equality and scraper condition before lowering the whole housing again. A correct repair improves the clearing pattern while maintaining the clearance Ariens specifies for that surface, not simply the smallest visible layer at any cost.

Retest without creating a second problem

After adjustment, make one straight pass on the same surface used to judge the original symptom. Look at the layer across the full width rather than only the tire tracks. A consistent improvement across both ends confirms the lower-edge setup changed the right variable.

Check that the housing does not scrape aggressively or catch surface transitions. On gravel or uneven ground, verify the larger clearance prevents stone pickup. If the machine begins pulling after a scraper adjustment, stop and recheck equal skid height.

If the scraper is already at its lowest usable adjustment and the layer remains excessive, replace the worn/damaged blade using the exact 921069 parts trail, reset the skids again and repeat the same controlled pass.

Model-specific notes

• The scraper blade protects the auger housing as well as clearing the final layer; letting it wear too far can damage the housing.
• A consistent layer across the full width and an uneven strip on one side are different clues: the second should also trigger a left/right skid-height comparison.
