Toro 721 QZE 38756 Belt Squeals Under Load: Wet Belt or Lost Tension?
An exact-model 38756 diagnosis that separates a temporary wet-belt squeal from the later-manual condition where extended use has reduced drive-belt tension.
Applies to Power Clear 721 QZE (38756)
Identifiers: 38756 · 721 QZE
Engine ID: Toro 212cc
Guide scope: The 30-second wet-belt drying note, 2–3 mm control-cable gap and heavy-load spring-position procedure here are scoped to Toro Power Clear 721 QZE model 38756 serial 406728558+ under operator manual 3439-829. Earlier 400000000–406728557 machines use manual 3429-269; resolve the serial before adjustment.
Model 38756 spans six verified serial ranges. Resolve the serial number before using manual or parts assumptions.
This model has serial-range boundaries — resolve the serial before using a manual →
721 QZE 38756 has its own chute-control context
This diagnosis is scoped to model 38756, the QZE variant with Quick Shoot. If the label says 38753, use the 721 E path rather than assuming the two pages are interchangeable.

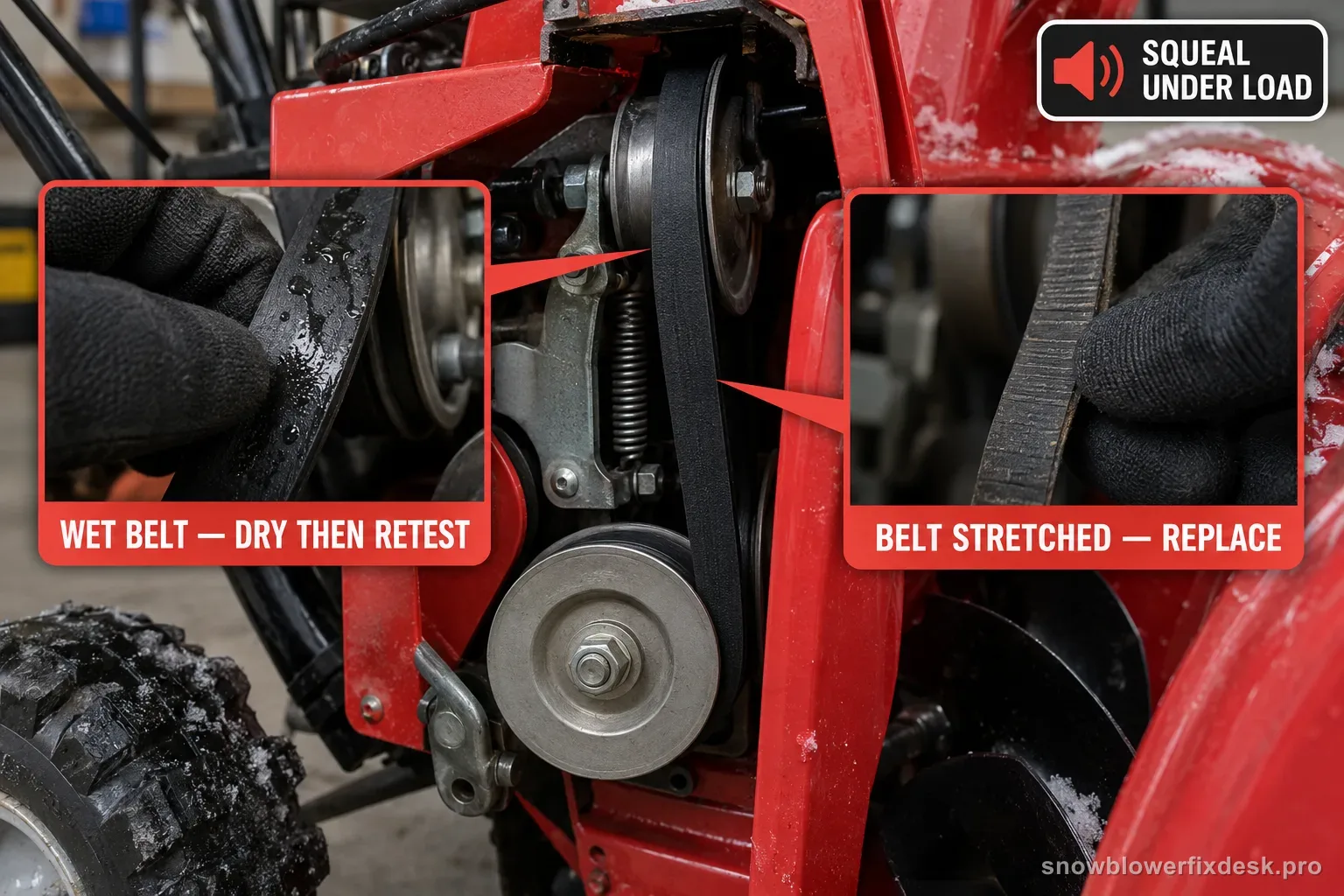

Toro distinguishes two belt-squeal patterns on later 38756 machines: wet-condition slip may clear by running the rotor unloaded for 30 seconds, while a drive belt that continuously squeals under heavy load after extended use may have lost proper tension. The manual then changes the control spring position and requires the control cable to be re-adjusted—not simply tightened by feel.
Keep hands, tools and clothing away from the rotor and belt drive. Shut the engine off, remove the key and wait for all movement to stop before cable or spring work. Reinstall covers before any powered retest, and preserve enough disengaged cable slack for the rotor to stop properly.
Diagnostic sequence
Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.
Confirm model 38756 and serial scope
Why this check: Toro splits 38756 manuals by serial range, and this exact belt/cable procedure is from 3439-829 for serial 406728558+.
What to do: Read the model and serial labels first. Use this sequence only when the machine resolves to the later manual; earlier serials stay on 3429-269.
Classify when the squeal happens
Why this check: Toro treats a wet-condition slip differently from continuous heavy-load squeal after extended use.
What to do: Note whether the noise began in wet snow and disappears unloaded, or repeats continuously when the rotor is asked to move snow after the machine has accumulated use.
Dry a wet drive before changing adjustment
Why this check: Toro notes that the belt may slip and squeal in wet conditions and gives a no-load drying check.
What to do: From the normal operator position, run the rotor with no snow load for 30 seconds. If the temporary wet squeal clears, do not create a permanent tension change just to fix a moisture event.
Check the control cable before tension work
Why this check: The later manual requires a 2–3 mm (1/16–1/8 in) control-bar gap and some cable slack when disengaged so the rotor can stop.
What to do: With the engine off, verify the matched cable check. Do not remove released-bar slack in pursuit of stronger belt engagement.
Use the heavy-load spring procedure only for the documented pattern
Why this check: Toro says that after extended use the belt may wear and lose tension; if it continuously squeals under heavy load, the upper spring end is moved to the hole farther from the control-bar pivot.
What to do: Follow the manual spring-position step only after the symptom and serial range match, then reconnect the spring and perform the full control-cable adjustment.
Stop if tension and disengagement cannot both be correct
Why this check: A stronger drive that leaves the rotor powered after release is an unsafe adjustment, not a successful repair.
What to do: After reassembly, verify normal engagement and reliable rotor stop. If the belt still continuously squeals or the rotor will not disengage correctly, stop using the machine and escalate to Toro service.
How to read this symptom on this model
Start by identifying the sound pattern instead of treating every squeal as the same belt failure. Toro gives the later 721 drive system two different notes that can sound similar to the operator. In wet conditions, the belt may slip and squeal temporarily. Separately, after extended use, the drive belt may wear and lose proper tension and then continuously squeal under a heavy load. Moisture history, load dependence and accumulated use are therefore diagnostic evidence before any adjustment is changed.
The wet-belt branch is intentionally simple. Toro says to start the rotor and run it without a load for 30 seconds to dry the drive system. That is a short controlled observation, not an instruction to keep feeding snow through a slipping belt. If the squeal was created by wet snow and clears after the no-load drying run, a permanent spring or cable change can make a previously correct system too tight.
If the squeal is continuous under heavy load after extended use, the later manual acknowledges that the belt may have worn enough to lose proper tension. Toro then changes the upper end of the spring to the hole farther from the pivot point in the control bar. That is a specific condition-and-action pair; it should not be copied to a new machine with a one-time wet squeal or to an earlier serial range whose manual has not been resolved.
The spring change is not the end of the procedure. Toro instructs the owner to reconnect the spring to the adjuster link and then adjust the control cable. This matters because belt drive strength and safe disengagement share the same control geometry. A repair that makes the rotor pull harder but removes the released-bar slack required for stopping has solved the wrong problem.
Use the cable measurement as a safety boundary. On manual 3439-829, pull the control bar back only enough to remove cable slack for the check and verify a 2–3 mm (1/16–1/8 in) gap between the bar and the handle. Toro also explicitly requires some slack when the control bar is disengaged so the rotor blades can stop properly. Both the gap and the released condition matter after spring work.
A squeal that remains after the documented wet-drying check, after the serial-matched heavy-load adjustment, and with a correct cable setup has moved beyond the owner-level tuning branch. Continued slip can reflect belt wear or another drive condition that cannot be diagnosed safely by adding more tension. Preserve whether it occurs unloaded, only in snow, or immediately at engagement and take that evidence to Toro service.
Also distinguish belt squeal from a rotor that physically cannot turn because of frozen snow or debris. A jammed rotor can overload the drive, but forcing the control against a blocked rotor is not a belt test. Shut the engine off, remove the key, clear freeze-up safely and confirm the rotor path is free before interpreting repeated squeal as a tension problem.
Before you order parts
Before ordering a belt, record model 38756, the serial number, whether the machine resolves to manual 3439-829, whether the squeal appeared in wet conditions and whether it clears during the documented 30-second no-load drying check. A temporary moisture event does not justify a belt purchase by itself.
Before ordering a control cable or spring, measure the control-bar gap and verify released-bar slack. If a previous adjustment removed slack, restore the complete Toro control setup first. New parts installed with the same incorrect geometry can reproduce both the squeal and an unsafe disengagement condition.
If the machine has extended use and the squeal is continuous only under heavy load, inspect the service history before assuming catastrophic belt damage. Toro specifically provides the spring-position/tension branch for that pattern, followed by a cable readjustment. Use the matched procedure once, then judge the result instead of repeatedly increasing tension.
Back to the exact model hub →Retest without creating a second problem
After any adjustment, reinstall the spring cover and any removed guards. From the operator position with the discharge area clear, run a brief no-load engagement. The drive should engage without a continuous squeal, and releasing the control bar must allow the rotor to stop normally.
If the no-load test is safe, make a short light-snow pass before challenging the machine with a heavy full-width cut. Note whether squeal appears only as load rises. A machine that is quiet unloaded but continuously squeals under ordinary snow load still has unresolved drive tension or belt condition.
Finish by releasing the control bar again and confirming reliable disengagement. If added tension improved throwing but the rotor hesitates to stop, reverse course and stop using the machine. Safe release behavior outranks maximum throwing force.
Make sure this is the right symptom
The same search phrase can lead to a different branch on another machine. Compare the nearest model-specific examples: Toro Power Clear 721 E (38753): belt squeals or rotor weak · Toro Power Clear 721 E (38753): rotor keeps spinning after control bar release.
Model-specific notes
- The manual’s 30-second drying note is for wet-condition belt slip; it is not a general cure for a belt that continuously squeals under heavy load after extended use.
- The spring-position change and the 2–3 mm cable-gap check are part of one control system. Do not perform the spring change and skip the subsequent cable adjustment.
- Do not infer that every squeal means the belt itself must be replaced. Preserve moisture, load, use-history and cable-adjustment evidence before buying parts.
Questions people get wrong on this model
Why does Toro say to run the rotor for 30 seconds?
On the later 38756 manual, Toro says wet conditions can make the belt slip and squeal; running the rotor without a load for 30 seconds is the documented drying check. Toro says that after extended use the belt may wear and lose tension; if it continuously squeals under heavy load, the upper spring end is moved to the hole farther from the control-bar pivot.
What if it squeals continuously only under heavy snow load?
If the later-serial machine has extended use and the belt continuously squeals under heavy load, Toro provides a spring-position change followed by control-cable adjustment. Keep the required disengaged slack so the rotor stops properly. A machine that is quiet unloaded but continuously squeals under ordinary snow load still has unresolved drive tension or belt condition.
Should I tighten the cable until the squeal disappears?
No. Toro specifies a measured 2–3 mm control-bar gap and requires some slack with the bar released. Removing that slack can create a rotor that does not stop. Before ordering a control cable or spring, measure the control-bar gap and verify released-bar slack. The drive should engage without a continuous squeal, and releasing the control bar must allow the rotor to stop normally.
Primary-source trail
Manufacturer material used for this diagnosis. Verify the model/serial range before ordering parts or applying an adjustment.
Toro Power Clear 721 Operator Manual 3439-829 Rev BOfficial operator manual applies to model 38756 serial 406728558 and up; includes electric-start limits and freeze-up prevention.www.toro.com →Toro 38756 Parts & Manuals — verified later serial rangeOfficial 721 QZE model page confirms 38756, electric/recoil starter and manual 3439-829 for serial 409200000–411799999; use the site serial resolver for the exact production range.www.toro.com →Toro 38756 product / serial resolverOfficial Toro model page for 38756; use its serial selector before applying a manual or parts assumption.www.toro.com →Toro 38756 Parts & Manuals — serial 411800000–413986044Official U.S. parts/manual page identifies Power Clear 721 QZE model 38756 and exposes operator manual 3439-829 plus the serial-range selector.www.toro.com →
